Eaton TB200HB-18 Panel Mount Terminal Block Connector - CE Marked RoHS Compliant
Part Number: TB200HB-18
Quick Summary
Eaton TB200HB-18 is a panel mount terminal block connector designed for high-density wiring in control panels and power distribution enclosures. Engineers often struggle with space constraints and reliable, repeatable terminations in tight cabinets. This 18-pole, double-row block addresses that by delivering a compact footprint with a high barrier to prevent cross-talk and miswiring. CE Marked and RoHS Compliant, it supports compliant automation deployments while enabling robust field terminations. For system integrators, the combination of easy installation, solid mechanical performance, and standard screw interfaces translates to shorter commissioning times and lower maintenance costs in mass-produced control equipment.
Product Information
Extended Description

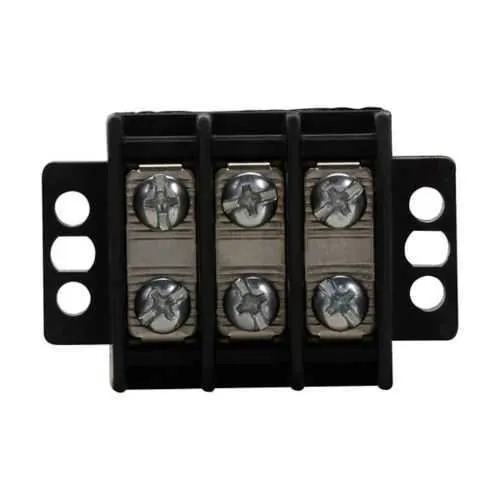

TB200HB-18 Eaton: Eaton Bussmann TB200 series panel mount terminal block connector, Breakdown voltage 4800V, 600V, 30A, Double row, high barrier, 18-pole, #6-32 TPI Screw, Black, Tin-plated brass terminal, Zinc-plated Steel philslot screw
Product Name
Eaton Bussmann TB200 series panel mount terminal block connector
Catalog Number
TB200HB-18
UPC
051712274005
Product Length/Depth
8.62 in
Product Height
0.75 in
Product Width
1.37 in
Product Weight
0.8 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
30A
Voltage rating
600 V
Number Of Poles
18-pole
Type
Double row, high barrier
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
