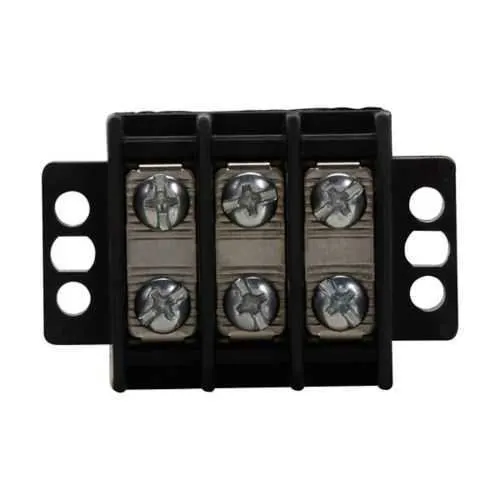

Eaton TB200HB-30 Panel Mount Terminal Block - CE RoHS
Part Number: TB200HB-30
Quick Summary
The Eaton TB200HB-30 is a panel mount terminal block connector designed for high-density control panels. Engineers often struggle with wiring density, isolation, and reliable terminations in compact enclosures. This model carries CE marking and RoHS compliance, with 600 V and 30 A ratings in a 30-pole, double-row, high-barrier configuration. Its 13.87 inch length, 0.75 inch height, and 1.37 inch width support tidy, scalable wiring while fasteners use #6-32 TPI screws and tin-plated brass terminals for enduring connections. Designed for automation environments, it streamlines panel builds, reduces maintenance time, and helps meet regulatory expectations while delivering robust performance in industrial settings.
Product Information
Extended Description
TB200HB-30 Eaton: Eaton Bussmann TB200 series panel mount terminal block connector, Breakdown voltage 4800V, 600V, 30A, Double row, high barrier, 30-pole, #6-32 TPI Screw, Black, Tin-plated brass terminal, Zinc-plated Steel philslot screw
Product Name
Eaton Bussmann TB200 series panel mount terminal block connector
Catalog Number
TB200HB-30
UPC
051712194594
Product Length/Depth
13.87 in
Product Height
0.75 in
Product Width
1.37 in
Product Weight
1 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
30A
Voltage rating
600 V
Number Of Poles
30-pole
Type
Double row, high barrier
Feature: 30-pole, double-row, high-barrier design. Benefit: Maximizes wiring density without compromising isolation, enabling compact control panels and easier fault isolation in critical automation applications. Application: Suitable for electrical enclosures in packaging, process, and motion control systems. Feature: 600 V, 30 A electrical rating. Benefit: Safe power distribution for controlled loads and motor starters, reducing overheating risk and improving system reliability. Application: General control panel wiring and machine wiring with stringent safety margins. Feature: 13.87 in length, 1.37 in width, 0.75 in height. Benefit: Long footprint supports multiple terminations in a single block while fitting standard mounting footprints, accelerating assembly. Application: Panel layout planning in compact automation cabinets. Feature: Tin-plated brass terminals and #6-32 TPI screws. Benefit: Durable terminations with corrosion resistance and proven torque characteristics, lowering retrofit and maintenance costs. Application: Heavy-duty industrial wiring in harsh environments. Feature: CE Marked, RoHS Compliant, TB200 series compatibility. Benefit: Regulatory compliance and easy integration with existing TB200 components, reducing sourcing complexity. Application: New builds and refurbishments in compliant facilities. Feature: Barrier block design. Benefit: Enhanced insulating barriers minimize arcing and cross-talk in high-density terminations, boosting safety. Application: High-voltage control panels and distributed automation systems.
