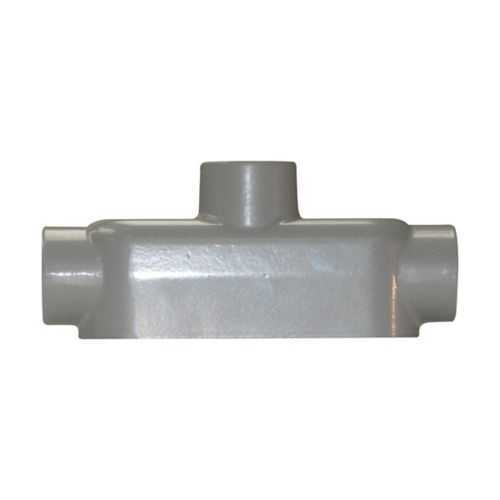

Eaton TB25 Condulet Series 5 conduit outlet body - NEC/CEC
Part Number: TB25-G1
Quick Summary
The Eaton TB25 Condulet Series 5 conduit outlet body is a rugged enclosure designed to terminate rigid/IMC conduit in industrial installations. A common challenge is finding a durable, code-compliant conduit body that installs quickly without costly field modifications. This TB25 model carries NEC/CEC compliance and Canadian certification through UL, while its copper-free aluminum construction minimizes weight and corrosion risk. When placed in a panel or raceway, TB25 helps facilities reduce rework and accelerate wiring, supporting safer, more reliable power distribution across manufacturing lines and commercial facilities.
Product Information
Extended Description
TB25-G1 Eaton: Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body, Rigid/IMC, Copper-free aluminum, TB shape, 3/4"
Product Name
Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body
Catalog Number
TB25
UPC
662277008518
Product Length/Depth
5.51 in
Product Height
2.4 in
Product Width
1.53 in
Product Weight
0.42 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
TB
Conduit type
Rigid/IMC
Trade size
3/4"
Material
Copper-free aluminum
Crouse-Hinds series Series 5 brochure
Crouse-Hinds series Series 5 catalog page
Condulet Series 5 Conduit Outlet Bodies Canadian certification
Condulet Series 5 Conduit Outlet Bodies Canadian certification
Eaton Specification Sheet - TB25
Feature: Copper-free aluminum construction provides corrosion resistance and lighter weight than traditional materials. Business Impact: lowers maintenance costs, reduces handling risk, and speeds on-site installation. Application: ideal for Series 5 TB conduit outlets in control panels and machine enclosures where durability and ease of handling matter. Feature: 3/4 inch trade size TB shape fits standard rigid/IMC conduit. Business Impact: reduces part counts and simplifies inventory management. Application: straightforward integration in new builds and remodels with existing conduit stocks. Feature: Ordinary/Non-Hazardous Location classification with NEC/CEC compliance. Business Impact: ensures regulatory alignment and reduces risk of non-compliance penalties. Application: suitable for most general industrial facilities, workshops, and commercial equipment installations. Feature: Copper-free aluminum with precise dimensions (5.51 in length, 2.4 in height, 1.53 in width) and weight (0.42 lb). Business Impact: compact form factor lowers enclosure footprint and shipping costs while maintaining mechanical strength. Application: tight spaces such as control cabinets and equipment housings where space is at a premium. Industry Insight: using this combination of material and geometry supports faster field assembly and consistent performance across humidity and temperature ranges.
Get a Quick Quote for a Eaton TB25-G1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TB25-G1?
Enquire Now
FAQs
TB25 is designed with a 3/4 inch trade size TB shape and is specified for rigid/IMC conduit, enabling straightforward termination in standard installations. Its compact dimensions (5.51 in L, 2.4 in H, 1.53 in W) and copper-free aluminum construction support easier mounting in crowded panels and enclosures, reducing field modification time and warranties.
TB25 adheres to NEC/CEC standards and is specified for Ordinary/Non-Hazardous locations. UL Canadian certification is evidenced by the Condulet Series 5 certification pages, ensuring compliance for cross-border projects and minimizing regulatory risk in mixed facility environments.
Yes, TB25 is intended for Ordinary/Non-Hazardous locations. When installing, ensure the conduit fits the 3/4 inch trade size, use rigid/IMC conduit compatible with the Series 5 outlet body, and follow NEC/CEC guidelines for enclosure grounding and mounting to maintain compliance and reliability in control panels and equipment housings.
Copper-free aluminum delivers corrosion resistance and reduced weight (0.42 lb) compared with traditional metals, easing handling and mounting. The TB25 dimensions support compact layouts, and the material choice helps lower maintenance costs while preserving mechanical integrity in damp or humid environments typical of industrial settings.
TB25 combines NEC/CEC compliance with rugged Series 5 design, reducing rework, speeding assembly, and minimizing corrosion-related failures. The copper-free aluminum construction lowers service costs over time, while UL Canadian certification facilitates multi-region deployments, delivering a favorable return on investment through improved reliability and shorter installation schedules.
