Eaton TB35 Condulet Series 5 conduit outlet body - NEC/CEC
Part Number: TB35-G1
Quick Summary
The Eaton TB35 Condulet Series 5 conduit outlet body provides rugged terminations for 1" rigid/IMC conduits. Installers face challenges with compatibility, weight, and corrosion resistance when upgrading enclosures. This model meets NEC/CEC requirements and UL certification for Condulet Series 5 outlet bodies, with UL-listed options for Canada, making it well-suited for ordinary locations. By leveraging copper-free aluminum, it delivers lighter handling and easier installation, while maintaining durability across harsh environments. Aligns with Eaton’s Series 5 ecosystem to streamline procurement and field upgrades, delivering measurable time savings and lifecycle reliability. For engineers, this means fewer part-number errors and faster project turnover without compromising safety.
Product Information
Extended Description

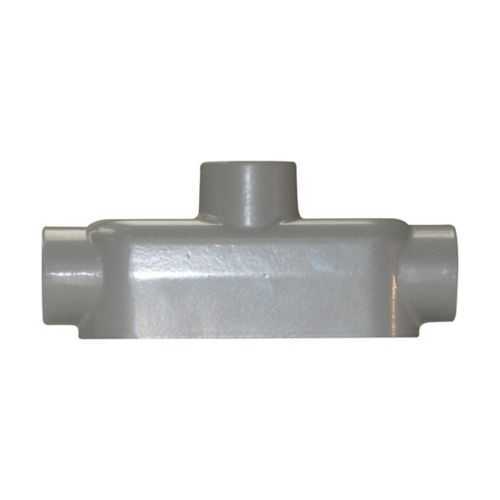

TB35-G1 Eaton: Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body, Rigid/IMC, Copper-free aluminum, TB shape, 1"
Product Name
Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body
Catalog Number
TB35
UPC
662277008525
Product Length/Depth
6.47 in
Product Height
2.77 in
Product Width
1.74 in
Product Weight
0.58 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
TB
Conduit type
Rigid/IMC
Trade size
1"
Material
Copper-free aluminum
Crouse-Hinds series Series 5 brochure
Crouse-Hinds series Series 5 catalog page
Condulet Series 5 Conduit Outlet Bodies UL certification
Condulet Series 5 Conduit Outlet Bodies UL certification
Eaton Specification Sheet - TB35
Copper-free aluminum construction reduces weight and improves corrosion resistance, cutting handling time and long-term maintenance costs on busy assembly lines. This translates to faster installs in panels and enclosures and lower total lifecycle cost. The 1" trade size TB shape ensures seamless compatibility with Series 5 components, minimizing rework and accelerating procurement. Rigid/IMC compatibility provides a robust termination option in harsh industrial environments, improving durability and reducing replacement cycles. NEC/CEC compliance and UL certification mitigate regulatory risk across North America, enabling smoother QA reviews and wider project acceptance. Documentation and datasheets from Eaton—brochure, catalog page, and specification sheet—support confident design decisions and consistent field installation. Overall, TB35 fits the Eaton Condulet ecosystem for scalable, repeatable terminations in multiple facilities.
Get a Quick Quote for a Eaton TB35-G1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TB35-G1?
Enquire Now
FAQs
TB35 supports 1" trade size conduits of the rigid/IMC type and is constructed from copper-free aluminum for lightweight durability. Its TB shape and Series 5 compatibility ensure straightforward mounting and entry into standard Eaton conduits and panels, simplifying design decisions and reducing project lead times.
Yes. TB35 complies with NEC/CEC standards and is UL certified for Condulet Series 5 outlet bodies, suitable for ordinary/non-hazardous locations. Canada-specific UL listings are available, helping teams meet cross-border requirements and reducing compliance risk on multinational installations.
TB35 uses copper-free aluminum to cut weight to about 0.58 lb, easing handling during installation. Its standard Series 5 mounting footprint and 1" trade size reduce mounting time and avoid custom fabrication, delivering predictable field performance and shorter project turnaround in panel builds.
TB35 measures 6.47 inches in length, 2.77 inches in height, and 1.74 inches in width, weighing approximately 0.58 pounds. It is made from copper-free aluminum and supports a 1" trade size for rigid/IMC conduits, aligning with the TB shape of the Condulet Series 5 family.
Official resources include the Crouse-Hinds Series 5 brochure, the Series 5 catalog page, and the Eaton TB35 specification sheet. UL certification pages for the USA and Canada are available, along with the Condulet Series 5 datasheet, providing installation guidance, ratings, and compatibility details.
