Eaton TB50M Condulet Form 5 conduit outlet body - NEC/CEC
Part Number: TB50M
Quick Summary
The Eaton TB50M Condulet Form 5 conduit outlet body provides rugged enclosure connections for industrial conduit systems. Engineers often struggle with space constraints and the need for reliable protection in harsh environments during conduit work. It meets NEC/CEC standards and is approved for Ordinary/Non-Hazardous Locations, with form-5 TB geometry delivering reliable service. In addition to form-5 TB compatibility, this outlet body supports quick installation in wiring and connectivity projects, offering durable performance. This makes TB50M a strong choice for panel builders and field technicians who value reliability and ease of sourcing. With the included catalog page and UL certification references, procurement and QA teams gain confidence in compliance and traceability.
Product Information
Extended Description

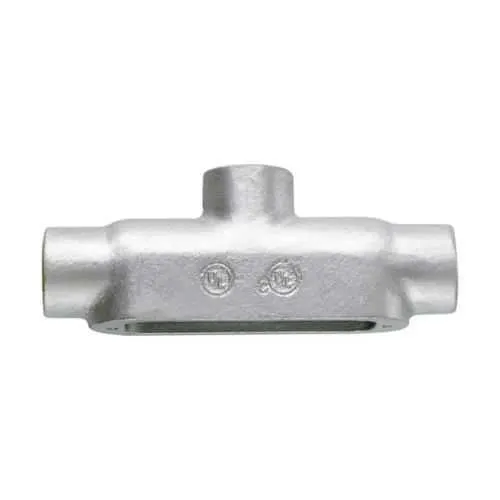

TB50M Eaton: Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body, Malleable iron, TB shape, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body
Catalog Number
TB50M
UPC
782274756585
Product Length/Depth
5.38 in
Product Height
2.05 in
Product Width
1.34 in
Product Weight
0.88 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
TB
Trade size
1/2"
Material
Malleable iron
Eaton Crouse-Hinds TB50M 3D drawing
Crouse-Hinds series Form 5 catalog page
Condulet Form 5 Conduit Outlet Bodies UL certification
Condulet Form 5 Conduit Outlet Bodies UL certification
Eaton Specification Sheet - TB50M
Durable malleable iron construction provides rugged protection for conduit terminations in demanding environments. The TB50M Condulet Form 5 outlet body resists impact, fatigue, and corrosion, reducing field repairs and downtime. For metal-to-metal connections in 1/2 inch trade size runs, this form 5 body maintains alignment and seal integrity through challenging temperatures and vibration, supporting long service life in industrial wiring and connectivity applications. TB shape and 1/2 inch trade size compatibility streamline installation, directing conduits with predictable routing and simplifying panel layouts in tight spaces. Its compact form factor maintains precise clearances, reducing installation time and helping keep projects on schedule and within budget. NEC/CEC standards compliance ensures code-conforming terminations across North America, while Ordinary/Non-Hazardous Locations suitability reduces regulatory risk and accelerates inspections. By choosing a standard Form 5 conduit outlet body, engineers avoid custom solutions, improving traceability and procurement efficiency across sites. The combination of familiar TB50M geometry and clear documentation supports fast design reviews and easy spares management.
Get a Quick Quote for a Eaton TB50M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TB50M?
Enquire Now
FAQs
TB50M is designed for 1/2 inch trade-size conduits. Start by ensuring the mounting area aligns with the Form 5 geometry and the location is Ordinary/Non-Hazardous. Secure the body to the panel or enclosure using appropriate hardware, attach the conduits with compatible fittings, and torque per manufacturer guidelines. Confirm ground continuity and verify the conduits route cleanly, then test for proper concealment and clearance. Refer to Eaton installation sheets for precise torque values and step-by-step instructions.
Yes. TB50M is a Form 5 conduit outlet body that adheres to NEC/CEC standards and is suitable for Ordinary/Non-Hazardous Locations. The malleable iron construction and Form 5 configuration support code-compliant terminations in standard industrial environments. For additional assurance, consult the UL certification pages linked in Eaton resources to verify compliance and compatibility with your project’s regulatory requirements.
TB50M is ideal for control panels, junction boxes, and wall-mounted conduit terminations in industrial facilities. Its Form 5 TB shape provides predictable conduit routing, which simplifies panel layouts and future modifications. The 1/2 inch trade size supports common conduit runs, while the rugged malleable iron construction offers durability in vibration-prone environments, contributing to reduced maintenance needs and longer service life.
TB50M measures 5.38 inches in length, 2.05 inches in height, and 1.34 inches in width, with a weight of 0.88 pounds. This compact yet sturdy form 5 conduit outlet body supports efficient space planning in tight panels and enclosures, while maintaining robust mechanical protection for conduit terminations in demanding environments.
You can access the Eaton TB50M specification sheet and 3D CAD drawing package from the product downloads. Additional resources include the Crouse-Hinds Form 5 catalog page and UL certification references, which support design validation, BOM creation, and procurement. These assets streamline modeling, sourcing, and QA review across large-scale installations.
