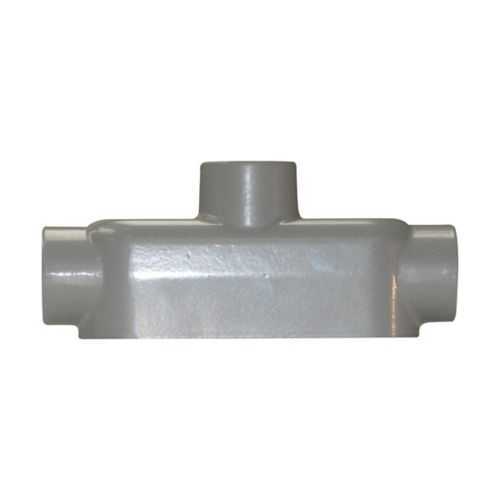

Eaton TB55 Condulet Series 5 Conduit Outlet - NEC/CEC
Part Number: TB55
Quick Summary
TB55 conduit outlet body from Eaton provides rugged terminations for rigid/IMC conduit in industrial enclosures. It helps reduce installation pain by offering a robust copper-free aluminum solution that withstands demanding environments. This Condulet Series 5 carries NEC/CEC compliance and is suitable for ordinary/non-hazardous locations, with Canadian certifications on record. By leveraging a 1-1/2 inch trade size and compatible Rigid/IMC conduit, it delivers faster field assembly and lower lifecycle costs, while maintaining high electrical integrity and reliable grounding for control panels and enclosures.
Product Information
Extended Description
TB55 Eaton: Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body, Rigid/IMC, Copper-free aluminum, TB shape, 1-1/2"
Product Name
Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body
Catalog Number
TB55
UPC
662277008549
Product Length/Depth
8.25 in
Product Height
3.53 in
Product Width
2.49 in
Product Weight
1.09 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
TB
Conduit type
Rigid/IMC
Trade size
1-1/2"
Material
Copper-free aluminum
Crouse-Hinds series Series 5 brochure
Crouse-Hinds series Series 5 catalog page
Condulet Series 5 Conduit Outlet Bodies Canadian certification
Condulet Series 5 Conduit Outlet Bodies Canadian certification
Eaton Specification Sheet - TB55
Feature → Business Impact → Application: Copper-free aluminum construction delivers corrosion resistance with lighter weight, enabling easier mounting and reduced handling time on-site, which translates to faster wiring and lower labor costs in panel builds and industrial installations. Application: Perfect for Series 5 Condulet and 1-1/2 inch rigid/IMC conduit in harsh environments where weight savings and durability matter. Feature → Business Impact → Application: TB shape and 1-1/2 inch trade size standardize connections across multiple cabinets and enclosures, improving interchangeability and reducing misfits during expansion or retrofit projects. Application: Suitable for upgrading legacy installations in manufacturing lines and distribution panels. Feature → Business Impact → Application: NEC/CEC compliance plus Ordinary/Non-Hazardous Locations certification provide regulatory confidence for industrial facilities, minimizing compliance risk and speeding procurement. Application: Ideal for compliance-driven projects in utilities, processing, and automation environments. Feature → Business Impact → Application: Copper-free aluminum reduces overall cost of ownership through lower maintenance and longer service life, with readily available Condulet Series 5 documentation to support installation and audits. Application: Used in new builds and retrofits of control cabinets, motor control centers, and junction enclosures.
Get a Quick Quote for a Eaton TB55
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TB55?
Enquire Now
FAQs
Yes. TB55 is designed specifically for 1-1/2 inch trade size with rigid/IMC conduit, using the TB shape of the Condulet Series 5. Its copper-free aluminum construction reduces weight while maintaining robust, code-compliant terminations suitable for control cabinets, junction boxes, and enclosure assemblies.
TB55 carries NEC/CEC compliance and is approved for Ordinary/Non-Hazardous Locations. Canadian certification documentation is available, reflecting cross-border suitability for industrial facilities and utility applications.
TB55 measures 8.25 inches in length, 3.53 inches in height, and 2.49 inches in width, with a weight of 1.09 pounds. These specifications support predictable fit within compact enclosures and simplify cable routing and enclosure planning.
TB55 is made from copper-free aluminum, offering corrosion resistance and lighter weight compared with traditional copper-containing alloys. This improves installation ease, reduces handling strain during mounting, and lowers maintenance burden over the product life cycle.
TB55 is ideal for use in electrical wiring and connectivity within control panels, motor control centers, and distribution enclosures that require Series 5 Condulet components, especially in environments classified as Ordinary/Non-Hazardous Locations and where NEC/CEC compliance is mandatory.
