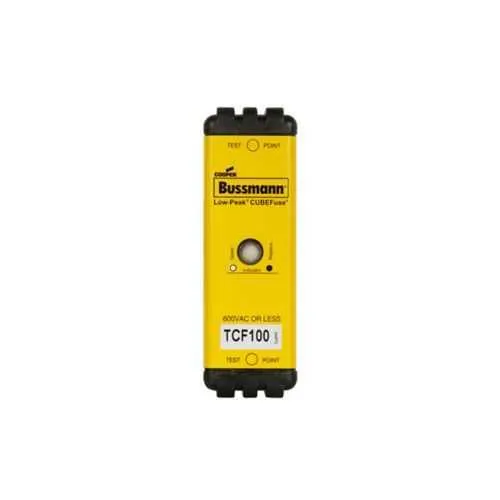

Eaton TCF100 Fuse - Class CF Time-Delay UL Listed
Part Number: TCF100
Quick Summary
The Eaton TCF100 fuse protects electrical circuits in industrial control panels and power distribution systems. Engineers often grapple with nuisance trips or mismatched interrupt ratings that drive maintenance costs and downtime. It carries UL Listed, CSA Certified, and CE Marked RoHS compliance, supporting regulatory adherence across markets. Designed for 35 mm DIN rail mounting with blade-end connection, finger-safe features, and a dual-element current-limiting design, it enables reliable protection with quick fault isolation. This combination delivers long-term cost savings and streamlined integration for modular automation and motor-control applications.
Product Information
Extended Description
TCF100 Eaton: Eaton Bussmann Series Class CF fuse, TCF, time-delay, dual-element current limiting cube fuse, 100 A, indicating fuse, interrupting rating of 100 kA at 300 Vdc and 300 kA at 600 Vac
Product Name
Eaton Bussmann series TCF fuse
Catalog Number
TCF100
UPC
051712618182
EAN
5027590244091
Product Length/Depth
3.01 in
Product Height
2.125 in
Product Width
1 in
Product Weight
0.284 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Amperage Rating
100 A
Frequency rating - max
60 Hz
Frequency rating - min
50 Hz
Interrupt rating
100 kAIC at 300 Vdc 300 kAIC at 600 Vac
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Color
Black
Fuse type
Class CF Time delay
Material
Glass filled PES
Number of elements
Dual
Packaging type
Standard
Class
Class CF
Connection
Blade end
Fuse indicator
With Indicator
Mounting method
Chassis 35 mm DIN rail
Special features
Finger safe
Used with
TCFH100N, CCP2-3-100CF
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
The Power of Space
The Power of Space
Bussmann series UL Class CF CUBEFuse data sheet no. 9000
Class CF time-delay, dual-element cube fuse provides selective protection for fast faults while tolerating motor inrush. This design reduces nuisance trips and extends equipment lifespan by avoiding unnecessary disconnections during startup surges. It is well suited for motor drives, power distribution blocks, and control panels where reliable, predictable protection is essential. The 100 A rating and wide voltage handling enable use across both 600 Vac and 300 Vdc systems, simplifying spec alignment for mixed-voltage installations and reducing component count. With a blade-end connection and 35 mm DIN rail mounting, installation is straightforward, enabling faster panel builds and easier field replacements. The finger-safe enclosure and with-indicator fuse option further enhance safe maintenance and quick fault identification in busy industrial environments. Compatible with TCFH100N and CCP2-3-100CF devices, the TCF100 integrates cleanly into existing Bussmann series architectures, improving spare parts commonality and total cost of ownership. Compliance certifications like UL Listed and CSA Certified support regulatory acceptance across target markets, while RoHS reduces hazardous material concerns for modern assemblies.
