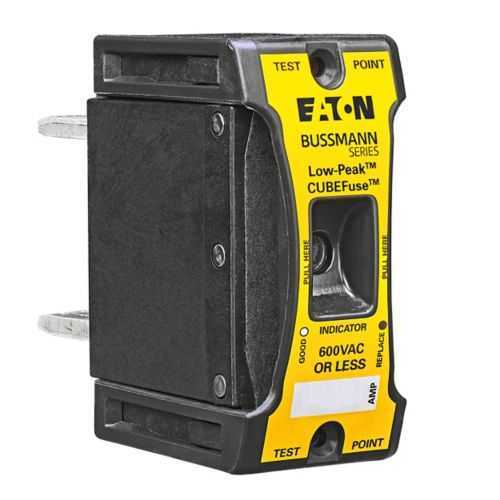

Eaton TCF125 Fuse - Class CF Time-Delay, UL Listed
Part Number: TCF125
Quick Summary
The Eaton Bussmann TCF125 fuse delivers time-delay protection for industrial electrical panels and motor circuits. This design helps prevent nuisance trips during motor startup while still delivering fast clearance for short circuits, protecting both equipment and service continuity. UL Listed and RoHS compliant, it aligns with essential safety and environmental standards across global facilities. Its Class CF dual-element construction supports reliable coordination in control cabinets, making it a strong choice for panel builders and maintenance teams. By combining robust interrupting capability with easy installation and clear fault indication, TCF125 delivers value through reduced downtime and simplified asset management.
Product Information
Extended Description
TCF125 Eaton: Eaton Bussmann Series Class CF fuse, TCF, time-delay, dual-element current limiting cube fuse, 125 A, indicating fuse, interrupting rating of 100 kA at 300 Vdc and 200 kA at 600 Vac
Product Name
Eaton Bussmann series TCF fuse
Catalog Number
TCF125
UPC
051712697774
Product Length/Depth
2.95 in
Product Height
3.63 in
Product Width
1.32 in
Product Weight
0.39 lb
Warranty
No warranty
Compliances
RoHS Compliant
Certifications
UL Listed
Amperage Rating
125 A
Frequency rating - max
60 Hz
Frequency rating - min
50 Hz
Interrupt rating
200 kAIC
Voltage rating
600 V
Color
Black
Fuse type
Class CF Time delay
Material
Glass filled PES
Number of elements
Dual
Packaging type
Standard
Class
Class CF
Connection
Blade end
Fuse indicator
With Indicator
Quantity
1
Special features
Finger safe
Used with
TCFH200N, CCP2-3-200CF
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Fuseology
Bussmann series UL Class CF CUBEFuse data sheet no. 9000
Time-delay, dual-element current-limiting design reduces nuisance tripping during motor startup and brief inrush events, delivering smoother equipment operation and lower maintenance costs. The business impact is fewer production interruptions and extended motor life in fans, pumps, and conveyors, enabling reliable uptime in food processing, packaging, and material handling applications. Indicating fuse capability provides immediate, at-a-glance fault location, speeding maintenance and minimizing downtime during outages. This translates to faster repair cycles and reduced labor costs in mission-critical facilities like data centers or manufacturing lines. UL Listed and RoHS compliant certification ensures regulatory alignment and easier procurement across multi-site operations, reducing vendor complexity and audit risk. Compatibility with blade-end connections and finger-safe housing simplifies retrofits and new installations, improving safety and installation time. The compact form factor and standard packaging support easy shipping, stocking, and field service, lowering total cost of ownership in industrial environments. Designed for coordination with TCFH200N and CCP2-3-200CF, it supports selective protection strategies that minimize device replacement and maximize system reliability.
Get a Quick Quote for a Eaton TCF125
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TCF125?
Enquire Now
FAQs
The TCF125 is designed to work within Eaton protection schemes and coordinates with TCFH200N and CCP2-3-200CF assemblies. It uses blade-end connections and a finger-safe design to simplify installation in standard control cabinets. This compatibility supports selective protection, minimizing nuisance trips and facilitating straightforward retrofits or new-build panel layouts.
The TCF125 is rated for 125 A with a voltage rating of 600 V. Its interrupt rating is 200 kAIC at 600 VAC and 100 kA at 300 VDC, providing robust short-circuit clearance while supporting reliable operation in a wide range of industrial loads and motor circuits running at 50–60 Hz.
Yes. Its time-delay, dual-element current-limiting design is ideal for motor start-up and inrush control in motor protection schemes, while its indicating feature and UL RoHS certifications simplify panel fabrication and regulatory compliance. It fits standard blade-end installations in distribution panels and can be used where coordinated fault protection is required.
The TCF125 is UL Listed and RoHS Compliant. UL Listing confirms safety and suitable performance in electrical systems, while RoHS ensures restrictions on hazardous substances. These certifications streamline procurement across global sites, support quality audits, and help meet environmental and safety standards.
The fuse measures 2.95 in in length, 3.63 in in height, and 1.32 in in width, with a weight of 0.39 lb. It is a dual-element, time-delay Class CF cube fuse with blade-end connections, finger-safe construction, and an indicating fuse for quick fault identification, making it straightforward to install and service in standard cabinets.
