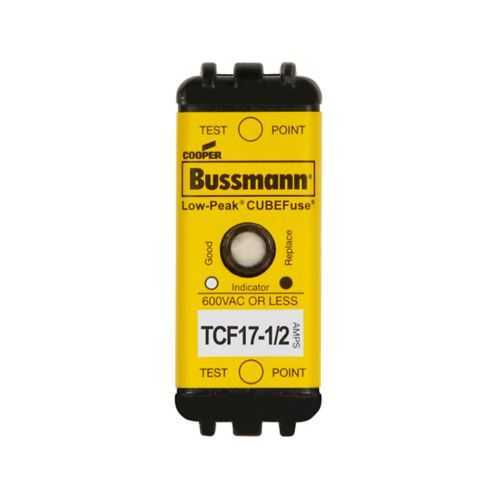

Eaton TCF17-1/2 Fuse - UL Listed Class CF Time-Delay
Part Number: TCF17-1/2
Quick Summary
The Eaton TCF17-1/2 fuse provides time-delay protection for industrial controls and motor circuits. Mismatches or nuisance interruptions can drive costly downtime and complicate maintenance. CE Marked, UL Listed, and CSA Certified, this fuse meets European, North American, and global safety standards for diverse control panels. Designed for chassis mounting on 35 mm DIN rails with finger-safe features and an indicator, it simplifies diagnostics and speeds replacement in tight panel spaces. By combining compact form with robust ratings, it supports reliable protection while helping you meet wiring codes and maintenance budgets.
Product Information
Extended Description
TCF17-1/2 Eaton: Eaton Bussmann Series Class CF fuse, TCF, time-delay, dual-element current limiting cube fuse, 7.5 A, indicating fuse, interrupting rating of 100 kA at 300 Vdc and 300 kA at 600 Vac
Product Name
Eaton Bussmann series TCF fuse
Catalog Number
TCF17-1/2
UPC
051712615006
EAN
5027590116947
Product Length/Depth
1.88 in
Product Height
1 in
Product Width
0.75 in
Product Weight
0.104 lb
Warranty
Not Applicable
Compliances
CE Marked
Certifications
UL Listed CSA Certified
Amperage Rating
17.5 A
Frequency rating - max
60 Hz
Frequency rating - min
50 Hz
Interrupt rating
300 kAIC at 600 Vac 100 kAIC at 300 Vdc
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Color
Black
Fuse type
Class CF Time delay
Material
Glass filled PES
Number of elements
Dual
Packaging type
Standard
Class
Class CF
Connection
Blade end
Fuse indicator
With Indicator
Mounting method
Chassis 35 mm DIN rail
Special features
Finger safe
Used with
TCFH30N, CCP2-3-30CF
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
The Power of Space
The Power of Space
Bussmann series UL Class CF CUBEFuse data sheet no. 9000
Feature: Time-delay Class CF design with dual-element current limiting. Benefit: Reduces nuisance tripping during normal inrush while preserving fast fault clearance, improving equipment uptime and process reliability. Application: Ideal for motor starters, conveyors, and packaging lines where inrush currents are common. Long-tail keywords: Class CF fuse, time-delay fuse, current-limiting fuse, dual-element fuse, motor protection. Feature: 600 Vac and 300 Vdc voltage capability with 300 kAIC at 600 Vac and 100 kAIC at 300 Vdc. Benefit: Delivers high fault-current tolerance for robust protection in mixed AC/DC systems, enabling safer panel operation and easier code compliance. Application: Industrial power distribution and CNC machinery. Long-tail keywords: high interrupt rating fuse, AC/DC protection, industrial power panel protection. Feature: Compact DIN rail mounting (35 mm) with blade-end connection and indicator. Benefit: Streamlines installation in crowded panels and speeds fault diagnostics with visual status indication. Application: Control cabinets, machines on factory floors, and retrofits. Long-tail keywords: DIN rail fuse, bladeend connection, panel diagnostics, finger-safe fuse. Feature: Finger-safe design and with-indicator feature. Benefit: Enhances operator safety during maintenance and enables quick status checks to reduce downtime. Application: Industrial controls in harsh environments where quick verification matters. Long-tail keywords: finger-safe design, fuse indicator, maintenance efficiency. Feature: Compatible with TCFH30N and CCP2-3-30CF assemblies. Benefit: Flexible system expansion and straightforward retrofit paths without rewiring. Application: Modular control panels and scalable protection schemes. Long-tail keywords: fuse compatibility, retrofit protection, modular control panels. Certifications and compliance are integral to the offering: CE Marked, UL Listed, and CSA Certified, ensuring global acceptance and reduced validation effort for multinational deployments. Long-tail keywords: CE Marked fuse, UL Listed fuse, CSA Certified fuse.
Get a Quick Quote for a Eaton TCF17-1/2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TCF17-1/2?
Enquire Now
FAQs
The TCF17-1/2 is designed for chassis mounting on a standard 35 mm DIN rail and uses blade-end connections for quick, vibration-resistant installation. Its compact dimensions (1.88 in x 0.75 in x 1 in) fit tight panel spaces, reducing enclosure depth. Ensure adequate clearance for heat dissipation and confirm alignment with adjacent devices to prevent contact and interference.
The fuse provides a 17.5 A rating with a voltage rating of 600 Vac / 300 Vdc. Its interrupt ratings are 300 kAIC at 600 Vac and 100 kAIC at 300 Vdc, enabling safe interruption of high-energy faults. The 10-second response time at 500% is typical, balancing protection with tolerance to inrush currents in industrial machinery.
Yes. The dual-element, time-delay Class CF design is specifically suited for motor-start and inrush-prone loads, offering selective protection and arc-quenching characteristics. Its UL Listed and CE Marked status supports compliance in multinational facilities, while the finger-safe construction and indicator help minimize maintenance time and misoperation during commissioning or servicing.
The fuse is UL Listed, CSA Certified, and CE Marked, covering safety, performance, and international acceptance. UL and CSA confirm essential safety and reliability for electrical protection devices, while CE Marking demonstrates conformity with European directives. These certifications streamline procurement for global projects and simplify regulatory filings in many industries.
With-indicator status reduces field checks and troubleshooting time, accelerating maintenance workflows. Compatibility with TCFH30N and CCP2-3-30CF families enables straightforward retrofits and scalable protection schemes across growing lineups, lowering total cost of ownership as systems expand and minimizing unscheduled downtime through faster fault identification.
