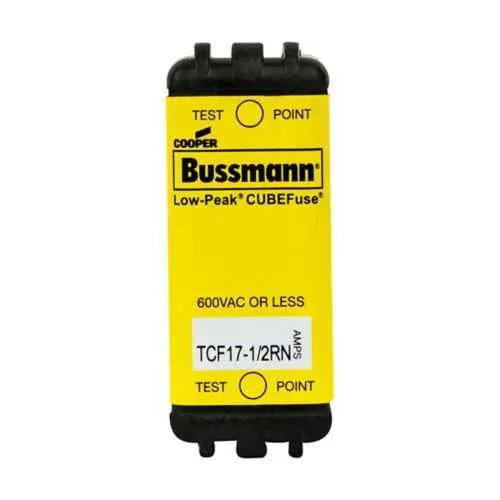

Eaton TCF17-1/2RN Fuse - UL Listed Class CF Time-Delay
Part Number: TCF17-1/2RN
Quick Summary
The Eaton Bussmann Series TCF fuse provides time-delay protection for industrial power circuits. This design helps withstand motor inrush and surge events without nuisance tripping. For engineers and procurement teams, reliable protection translates to fewer outages and safer equipment, reducing total cost of ownership. It carries UL Listed, CSA Certified, and CE Marked certifications, ensuring compliance across North America and international markets. With a 17.5 A amperage rating and robust interrupt capabilities, it supports dependable protection in demanding applications while staying compact enough for panel spaces. The fusion of a dual-element, current-limiting cube fuse with a blade-end connection delivers straightforward installation and proven reliability in control panels, motor drives, and distribution blocks.
Product Information
Extended Description
TCF17-1/2RN Eaton: Eaton Bussmann Series Class CF fuse, TCF, time-delay, dual-element current limiting cube fuse, 17.5 A, non-idicating fuse, interrupting rating of 100 kA at 300 Vdc and 300 kA at 600 Vac
Product Name
Eaton Bussmann series TCF fuse
Catalog Number
TCF17-1/2RN
UPC
051712220934
Product Length/Depth
1.88 in
Product Height
1.75 in
Product Width
0.75 in
Product Weight
0.08 lb
Warranty
Not Applicable
Compliances
CE Marked
Certifications
UL Listed CSA Certified
Amperage Rating
17.5 A
Frequency rating - max
60 Hz
Frequency rating - min
50 Hz
Interrupt rating
100 kAIC at 300 Vdc 300 kAIC at 600 Vac
Voltage rating
600 Vac, 300 Vdc
Color
Black
Fuse type
Class CF Time delay
Material
Glass filled PES
Number of elements
Dual
Packaging type
Standard
Class
Class CF
Connection
Blade end
Fuse indicator
Non-indicating
Special features
Finger safe
Used with
TCFH30N, CCP2-3-30CF
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Fuseology
Bussmann series UL Class CF CUBEFuse data sheet no. 9000
Feature: Time-delay, dual-element Class CF cube fuse enables controlled fault response. Business Impact: It softens inrush and short, high-current events, reducing nuisance trips and protecting downstream devices. Application: Ideal for motor starters, transformers, and loads with high startup currents in industrial panels. Feature: High interrupt rating of up to 300 kAIC at 600 Vac and 100 kAIC at 300 Vdc. Business Impact: It contains fault currents to safeguard wiring and components, minimizing collateral damage and downtime. Application: DC and AC circuits in power distribution, automation cabinets, and drive systems. Feature: Non-indicating, finger-safe blade-end construction with glass-filled PES body and dual elements. Business Impact: Safer handling, faster installs, and long service life in harsh environments. Application: Panel assemblies, harnessed assemblies, retrofit projects in control rooms and production lines. Feature: Certifications and compliance including UL Listed, CSA Certified, CE Marked. Business Impact: Regulatory alignment reduces procurement risk and supports audit readiness. Application: New installations requiring standard-compliant protective devices across North America and Europe. Feature: Compact dimensions (1.88 in L, 1.75 in H, 0.75 in W) and standard packaging. Business Impact: Easy replacement in crowded enclosures; lightweight at 0.08 lb; supports quick stocking and efficient maintenance. Used with TCFH30N, CCP2-3-30CF to ensure ecosystem compatibility.
Get a Quick Quote for a Eaton TCF17-1/2RN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TCF17-1/2RN?
Enquire Now
FAQs
TCF17-1/2RN uses blade-end connections and is a dual-element, time-delay Class CF fuse. When installing, ensure proper orientation in the fuse holder, verify blade terminals are clean, and secure with compatible clips. Consider panel clearance and heat dissipation; follow standard safety practices and use appropriate PPE during replacement.
The fuse features a 17.5 A amperage rating with voltage ratings of 600 Vac and 300 Vdc. It provides 100 kAIC at 300 Vdc and 300 kAIC at 600 Vac interrupt ratings, making it suitable for high fault-current circuits. It is non-indicating and uses a dual-element current-limiting design for reliable protection.
Yes. The time-delay Class CF design accommodates motor startup surges while delivering current-limiting protection. The 17.5 A rating fits small-to-medium motors; ensure coordination with upstream protection and select devices per NEC/IEC guidelines. It integrates with common Bussmann series components and blade-end CF enclosures.
The fuse is UL Listed, CSA Certified, and CE Marked, indicating recognized safety and performance across North America and Europe. These certifications simplify procurement for regulated environments, support audits, and help validate equipment safety standards during project qualification and ongoing regulatory reporting.
The TCF17-1/2RN reduces downtime by tolerating startup surges and protecting circuits during faults, while its compact blade-end design speeds replacements. Stocking and deploying in cabinets is streamlined, lowering maintenance time and contributing to higher overall system availability and a faster payback on protective-device investments.
