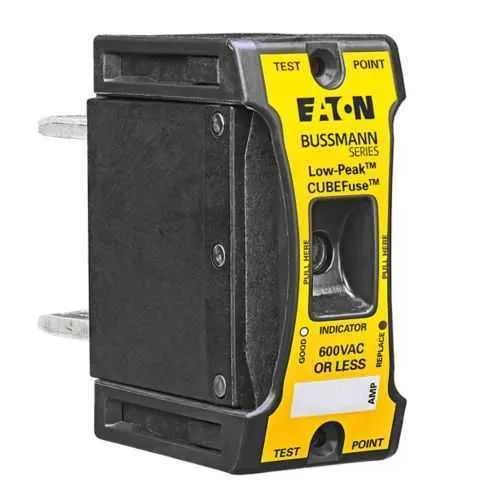

Eaton TCF175 Fuse - Class CF Time-Delay, UL Listed
Part Number: TCF175
Quick Summary
The Eaton TCF175 fuse protects industrial power circuits with time-delay Class CF performance in motor control centers. Engineers often contend with nuisance opens from transient surges or protection gaps that trigger downtime. It carries UL Listed safety certification and RoHS compliance, ensuring safe integration into modern facilities. Rated at 175 A and 600 V, the dual-element design delivers reliable protection during short transients while preserving service continuity. For panel builders and maintenance teams, blade-end connections, finger-safe features, and compatibility with TCFH200N and CCP2-3-200CF families, help reduce spare parts inventory and speed field service, delivering measurable uptime improvements.
Product Information
Extended Description
TCF175 Eaton: Eaton Bussmann Series Class CF fuse, TCF, time-delay, dual-element current limiting cube fuse, 175 A, indicating fuse, interrupting rating of 100 kA at 300 Vdc and 200 kA at 600 Vac
Product Name
Eaton Bussmann series TCF fuse
Catalog Number
TCF175
UPC
051712697798
Product Length/Depth
2.95 in
Product Height
3.63 in
Product Width
1.32 in
Product Weight
0.39 lb
Warranty
No warranty
Compliances
RoHS Compliant
Certifications
UL Listed
Amperage Rating
175 A
Frequency rating - max
60 Hz
Frequency rating - min
50 Hz
Interrupt rating
200 kAIC
Voltage rating
600 V
Color
Black
Fuse type
Class CF Time delay
Material
Glass filled PES
Number of elements
Dual
Packaging type
Standard
Class
Class CF
Connection
Blade end
Fuse indicator
With Indicator
Quantity
1
Special features
Finger safe
Used with
TCFH200N, CCP2-3-200CF
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Fuseology
Bussmann series UL Class CF CUBEFuse data sheet no. 9000
Feature time-delay, dual-element design → Benefit reduces nuisance tripping during inrush and provides selective protection → Application motor control centers and panelboards in manufacturing environments. Feature 175 A, 600 V rating → Benefit supports high-current loads with robust surge handling while maintaining overall system reliability → Application feeders and branch circuits in industrial plants. Feature blade-end connections with indicating fuse → Benefit simplifies field replacement and on-site verification, decreasing maintenance time → Application standard control panels and switchgear assemblies. Feature finger-safe housing and Class CF designation → Benefit enhances operator safety and compliance with industry standards → Application control panels and power distribution units in harsh industrial environments. Feature compatibility with TCFH200N and CCP2-3-200CF → Benefit streamlines spare parts and procurement, lowering inventory costs → Application retrofit and new-build projects. Feature RoHS compliant and UL Listed → Benefit ensures regulatory alignment and safer sourcing → Application regulated facilities and quality-conscious OEMs.
Get a Quick Quote for a Eaton TCF175
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TCF175?
Enquire Now
FAQs
When installing the TCF175 blade-end fuse, ensure power is de-energized and align the blade contacts with the corresponding fuse holder. Verify the 175 A rating matches the protected circuit and secure the fuse firmly to maintain proper electrical contact. Use the indicating fuse feature to confirm status during initial commissioning and routine maintenance.
The time-delay (slow-blow) characteristic allows inrush and startup currents to pass without tripping, while the dual-element design provides rapid interruption for sustained faults. This yields improved protection for motor starts, drives, and cross-cut loads, reducing nuisance trips while safeguarding wiring and equipment from damaging faults.
Yes. The TCF175 is RoHS compliant, confirming restrictions on hazardous substances, and UL Listed, indicating compliance with recognized safety standards. These certifications support regulatory alignment in regulated facilities and simplify supplier qualification for compliant electrical protection devices.
TCF175 is designed to work within the Bussmann series ecosystem and is compatible with related components like TCFH200N and CCP2-3-200CF. This compatibility enables straightforward upgrades or replacements without redesigning panel protection schemes, streamlining maintenance and spare parts forecasting.
TCF175 reduces downtime by minimizing nuisance trips during transient events and providing reliable protection for motors and feeders. Its indicating feature speeds fault diagnosis, while compatibility with common Bussmann series parts lowers spare parts inventory. Overall, expect lower maintenance labor costs and higher system uptime in demanding manufacturing environments.
