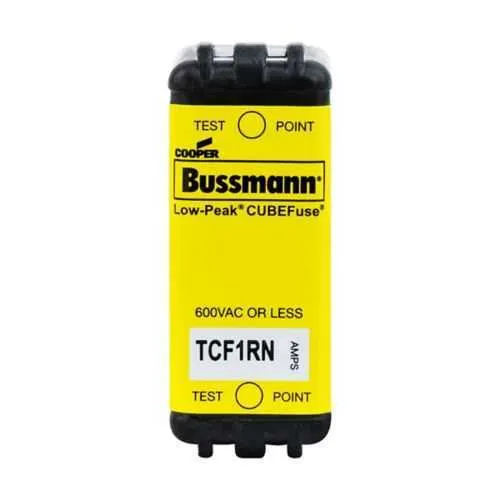

Eaton TCF1RN Fuse - Class CF Time-Delay, UL Listed
Part Number: TCF1RN
Quick Summary
The Eaton TCF1RN fuse provides time-delay protection for motor starters and control circuits in industrial panels. Engineers often grapple with nuisance trips during inrush or startup surges, which can halt production and extend downtime. This Class CF dual-element device is UL Listed, CSA Certified, and CE marked, ensuring robust regulatory compliance across North America and Europe. Its compact 1 A rating and 600 Vac / 300 Vdc capability fit tight panel spaces while maintaining high interrupt ratings. By integrating this fuse, customers gain reliable overcurrent protection with predictable maintenance, reducing total cost of ownership while preserving system uptime and safety. Additional benefits come from DIN rail compatibility and finger-safe design, supporting faster, safer installations in demanding environments.
Product Information
Extended Description
TCF1RN Eaton: Eaton Bussmann Series Class CF fuse, TCF, time-delay, dual-element current limiting cube fuse, 1 A, non-idicating fuse, interrupting rating of 100 kA at 300 Vdc and 300 kA at 600 Vac
Product Name
Eaton Bussmann series TCF fuse
Catalog Number
TCF1RN
UPC
051712208178
Product Length/Depth
1.88 in
Product Height
1 in
Product Width
0.75 in
Product Weight
0.044 lb
Warranty
Not Applicable
Compliances
CE Marked
Certifications
UL Listed CSA Certified
Amperage Rating
1 A
Frequency rating - max
60 Hz
Frequency rating - min
50 Hz
Interrupt rating
300 kAIC at 600 Vac 100 kAIC at 300 Vdc
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Color
Black
Fuse type
Class CF Time delay
Material
Glass filled PES
Number of elements
Dual
Packaging type
Standard
Class
Class CF
Connection
Blade end
Fuse indicator
Non-indicating
Mounting method
Chassis 35 mm DIN rail
Special features
Finger safe
Used with
TCFH30N, CCP2-3-30CF
Time-delay, dual-element Class CF fuse provides current limiting with controlled response to overloads, reducing nuisance trips while protecting sensitive electronics. This translates to lower maintenance costs and improved equipment availability in production lines and control panels. The 1 A rating and 600 Vac / 300 Vdc voltage capability enable use in small branch circuits and mixed-voltage applications, simplifying inventory and wiring. With a 300 kAIC interrupt rating at 600 Vac and 100 kAIC at 300 Vdc, it delivers robust protection during short-circuit events in high-energy systems, increasing equipment longevity and safety. The blade end connection and 35 mm DIN rail mounting simplify installation in standard enclosures, speeding commissioning and maintenance. Finger-safe construction and non-indicating operation reduce risk during handling and routine inspections, while compatibility with TCFH30N and CCP2-3-30CF devices expands system interoperability for modular protection architectures.
Get a Quick Quote for a Eaton TCF1RN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TCF1RN?
Enquire Now
FAQs
The TCF1RN uses blade end connections and accepts 35 mm DIN rail mounting, aligning with standard chassis rails found in most industrial control panels. This simplifies installation, reduces wiring complexity, and supports quick field replacement without specialized tools.
Yes. The fuse is rated for 600 Vac and 300 Vdc. It provides an interrupt rating of 300 kAIC at 600 Vac and 100 kAIC at 300 Vdc, delivering robust short‑circuit protection for high-energy industrial systems and motor drives.
The TCF1RN is UL Listed, CSA Certified, and CE Marked, offering North American and European compliance. These certifications support safety, reliability, and regulatory acceptance across global manufacturing environments.
Typical applications include motor control circuits, power distribution in control panels, and drives where inrush currents occur. The dual-element time-delay design helps tolerate brief surges while delivering precise overload protection, making it suitable for industrial equipment and automation panels.
Its compact DIN-rail form factor, finger-safe construction, and non-indicating design speed installation and maintenance. High interrupt ratings protect critical equipment, reducing unexpected failures, while compatibility with related Bussmann components enables modular protection schemes that simplify spares inventory and routine servicing.
