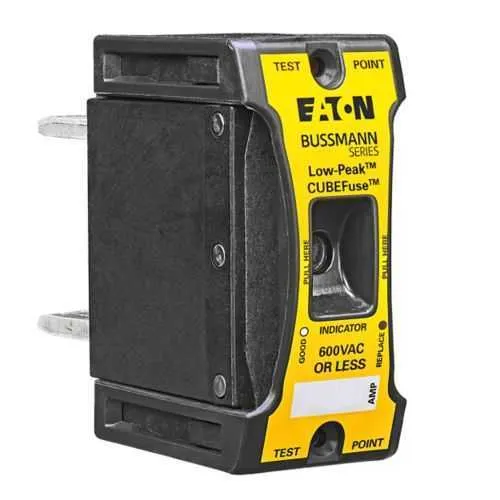

Eaton TCF200 Fuse - UL Listed Class CF Time-Delay Cube
Part Number: TCF200
Quick Summary
The Eaton Bussmann TCF200 fuse provides time-delay protection for industrial power distribution and motor circuits. Engineers often face nuisance trips during inrush events and space constraints in compact panels. This device carries UL Listed and RoHS Compliant certifications, supporting safety and environmental standards in modern facilities. Its dual-element design combines fast fault clearing with selective protection to reduce downtime and spare parts. Designed as a finger-safe indicating fuse, it fits standard Bussmann configurations and supports both AC and DC applications up to 600 V. With a 200 A rating, it helps optimize feeder protection while simplifying procurement and panel maintenance.
Product Information
Extended Description
TCF200 Eaton: Eaton Bussmann Series Class CF fuse, TCF, time-delay, dual-element current limiting cube fuse, 200 A, indicating fuse, interrupting rating of 100 kA at 300 Vdc and 200 kA at 600 Vac
Product Name
Eaton Bussmann series TCF fuse
Catalog Number
TCF200
Model Code
TIME DELAY CUBEFUSE 200A IND
UPC
051712697804
Product Length/Depth
2.95 in
Product Height
3.63 in
Product Width
1.32 in
Product Weight
0.39 lb
Warranty
No warranty
Compliances
RoHS Compliant
Certifications
UL Listed
Amperage Rating
200 A
Frequency rating - max
60 Hz
Frequency rating - min
50 Hz
Interrupt rating
200 kAIC
Voltage rating
600 V
Color
Black
Fuse type
Class CF Time delay
Material
Glass filled PES
Number of elements
Dual
Packaging type
Standard
Class
Class CF
Connection
Blade end
Fuse indicator
With Indicator
Quantity
1
Special features
Finger safe
Used with
TCFH200N, CCP2-3-200CF
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
The Power of Space
The Power of Space
Bussmann series UL Class CF CUBEFuse data sheet no. 9000
Feature: Time-delay Class CF cube fuse supports inrush tolerance and selective coordination. Business Impact: Reduces nuisance trips and extends motor life, cutting unplanned downtime. Application: Motor feeders and MCCs in pump, fan, and conveyor systems. Feature: 200 A current rating with 600 V voltage rating and high 200 kAIC interrupt capacity at 600 Vac (100 kAIC at 300 Vdc). Business Impact: Enhanced fault protection margins and improved safety for high-energy systems. Application: Large power distribution buses and critical loads in manufacturing lines. Feature: Dual-element construction provides robust protection while minimizing nuisance operable currents. Business Impact: Improved selectivity and arc-quenching performance, lowering maintenance costs. Application: Branch circuits with mixed loads and high inrush. Feature: Indicating fuse with blade-end connection and finger-safe design. Business Impact: Quick status checks, safer servicing, and reduced risk during replacement. Application: Field servicing in control panels and switchgear enclosures. Feature: RoHS compliant and UL Listed with standard Bussmann form factor. Business Impact: Streamlined compliance and reliable performance across regulated facilities. Application: Industries with strict environmental and safety requirements. Feature: Compact footprint (2.95 in length, 3.63 in height, 1.32 in width) and standard packaging. Business Impact: Easier panel integration and reduced overhaul time during upgrades. Application: Retrofit projects and new equipment in space-constrained panels. Feature: Compatibility with TCFH200N, CCP2-3-200CF cross-reference. Business Impact: Simplified spares strategy and seamless replacement in existing Bussmann ecosystems. Application: Repair and maintenance across Bussmann series installations.
Get a Quick Quote for a Eaton TCF200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TCF200?
Enquire Now
FAQs
TCF200 uses a standard blade-end connection designed for Bussmann series enclosures and compatible cross-reference parts such as TCFH200N and CCP2-3-200CF. It fits in typical circuit protection panels and MCCs, enabling straightforward replacements without panel redesigns. Verify enclosure space and mounting clearance prior to upgrading.
The fuse is rated for 200 A with a 600 V voltage rating and provides time-delay, dual-element protection. It offers 200 kAIC interrupt capacity at 600 Vac and 100 kAIC at 300 Vdc, making it suitable for inrush-heavy loads. These specs support dependable motor protection and reduced nuisance tripping in high-energy circuits.
Yes. The TCF200’s time-delay Class CF design, 200 A rating, and high interrupt capacity support motor feeders and MCCs. Its finger-safe construction and indicating fuse feature simplify maintenance in control panels, while its RoHS and UL Listed certifications ensure compliance in regulated manufacturing environments.
The TCF200 is UL Listed and RoHS Compliant, aligning with safety and environmental standards for industrial electrical protection. While it supports standard regional requirements, always cross-check local codes and product datasheets for specific certifications applicable to your facility.
An indicating fuse with a clear status helps maintenance teams quickly identify tripped units, reducing downtime. The durable dual-element design minimizes unnecessary changes, and its compatibility with existing Bussmann components lowers spare-part proliferation. Overall, expect lower service durations, less panel downtime, and improved system reliability.
