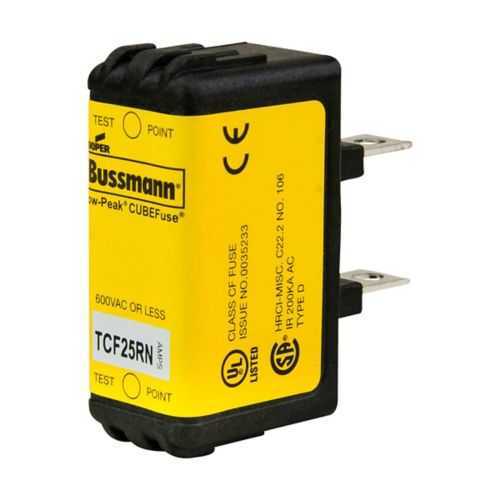

Eaton TCF25RN Fuse - Class CF Time-Delay, UL Listed
Part Number: TCF25RN
Quick Summary
Eaton TCF25RN fuse provides time-delay protection for industrial power circuits in control panels. Engineers face nuisance tripping from inrush and startup surges, especially in motor drives and rectifiers, making reliable protection essential. UL Listed, CSA Certified, and CE Marked RoHS compliant, these fuses meet global safety and environmental requirements. The design also supports easy installation and maintenance with a compact footprint and DIN rail mounting, delivering consistent protection without compromising panel space or serviceability. This combination of certification, ease of use, and robust performance translates to reduced downtime and total cost of ownership for machine builders and panel integrators.
Product Information
Extended Description
TCF25RN Eaton: Eaton Bussmann Series Class CF fuse, TCF, time-delay, dual-element current limiting cube fuse, 25 A, non-idicating fuse, interrupting rating of 100 kA at 300 Vdc and 300 kA at 600 Vac
Product Name
Eaton Bussmann series TCF fuse
Catalog Number
TCF25RN
UPC
051712220958
Product Length/Depth
1.88 in
Product Height
1 in
Product Width
0.75 in
Product Weight
0.1 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Amperage Rating
25 A
Frequency rating - max
60 Hz
Frequency rating - min
50 Hz
Interrupt rating
100 kAIC at 300 Vdc 300 kAIC at 600 Vac
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Color
Black
Fuse type
Class CF Time delay
Material
Glass filled PES
Number of elements
Dual
Packaging type
Standard
Class
Class CF
Connection
Blade end
Fuse indicator
Non-indicating
Mounting method
Chassis 35 mm DIN rail
Special features
Finger safe
Used with
TCFH30N, CCP2-3-30CF
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
The Power of Space
The Power of Space
Bussmann series UL Class CF CUBEFuse data sheet no. 9000
Feature: Time-delay Class CF fuse with dual-element current limiting. Business Impact: Handles inrush and startup surges while maintaining fast fault interrupt protection, reducing nuisance trips and protecting downstream equipment. Application: Motor drives, rectifiers, and power distribution where surge tolerance is required without sacrificing protection. The TCF25RN enables reliable operation in demanding industrial environments. Feature: 25 A rating with 600 Vac / 300 Vdc voltage rating. Business Impact: Aligns with common industrial power rails, enabling standardized protection schemes and easier stocking. Application: Control panels and drive systems that operate across AC and DC contingencies. Feature: High interrupt ratings (100 kAIC at 300 Vdc; 300 kAIC at 600 Vac). Business Impact: Maintains system integrity during short-circuit events, improving uptime and safety. Application: Large motor starters, power converters, and high-energy circuits. Feature: Blade-end connection, 1.88 in length, 0.75 in width, 1 in height, 0.1 lb weight. Business Impact: Quick, space-efficient installation on 35 mm DIN rails with minimal wiring adjustments. Application: Dense panel layouts and retrofits where space is at a premium. Feature: Non-indicating, finger-safe cube fuse, with glass-filled PES body. Business Impact: Reduced risk during handling and safer maintenance procedures, while enabling clear fault history through external indicators in the system. Application: Commercial and industrial panels requiring safe handling and compact form factor. Feature: Mounting on 35 mm DIN rail and compatibility with TCFH30N and CCP2-3-30CF. Business Impact: Streamlines replacement and future-proofing of protection schemes; reduces engineering time during panel upgrades. Application: Standardized installations across Eaton Bussmann CF family products. Feature: Certifications and compliances including UL Listed, CSA Certified, CE Marked, RoHS Compliant. Business Impact: Facilitates regulatory approval and global deployment with minimal compliance risk. Application: International manufacturing environments, food and beverage, and life sciences sectors where certification is mandatory.
Get a Quick Quote for a Eaton TCF25RN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TCF25RN?
Enquire Now
FAQs
The TCF25RN uses blade-end connections and is designed for 35 mm DIN rail mounting in chassis panels. Its compact 1.88 in length and 0.75 in width fit tight control panel spaces while maintaining easy replacement. The finger-safe housing reduces handling risk during installation and maintenance, supporting safe, field-ready protection near motor drives and power electronics.
The fuse is rated for 25 A with a voltage rating of 600 Vac and 300 Vdc. It provides an interruption rating of 300 kAIC at 600 Vac and 100 kAIC at 300 Vdc, ensuring strong fault protection for high-energy circuits. The 5–60 Hz operating range supports typical industrial power environments.
Yes. The dual-element time-delay design of the Class CF fuse accommodates motor inrush and startup surges without nuisance tripping while still delivering fast fault interruption. This makes it ideal for motor drives, controls, and power conversion equipment where overload and surge events are common.
The TCF25RN is UL Listed and CSA Certified, with CE Marking and RoHS compliance. These certifications support global deployment, regulatory approvals, and environmental considerations, reducing compliance risk in multinational manufacturing environments.
By combining reliable time-delay protection with high interrupt ratings and compact DIN-rail installation, the TCF25RN minimizes downtime from nuisance trips and simplifies panel upgrades. Its durable construction and standard compatibility with other Bussmann CF products reduce spare part variety and inventory costs, delivering measurable ROI for maintenance-intensive applications.
