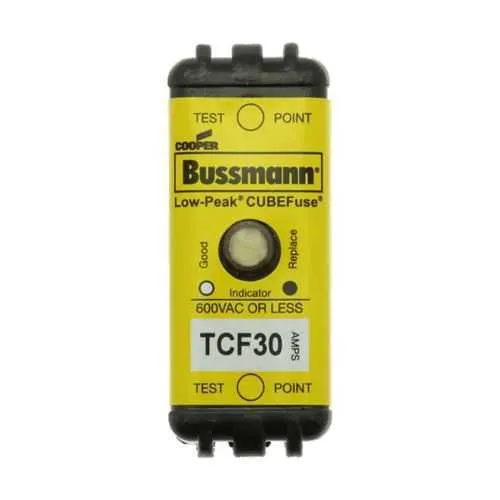

Eaton TCF30 Fuse - Class CF Time-Delay, UL Listed
Part Number: TCF30
Quick Summary
The Eaton TCF30 fuse is a time-delay, Class CF fuse designed to protect industrial control panels, motors, and power distribution networks in demanding environments. Engineers often confront nuisance tripping during motor startup or surge events, which can drive maintenance costs and downtime. This device carries UL Listed and CSA Certified marks, with RoHS compliance validating environmental responsibility in today’s manufacturing landscape. The indicating fuse feature, combined with a blade-end connection, simplifies installation and status monitoring while supporting safe, compliant maintenance workflows. By aligning with Bussmann Series standards, it also delivers predictable replacement cycles and reduced total cost of ownership for OEMs and end users alike.
Product Information
Extended Description
TCF30 Eaton: Eaton Bussmann series TCF fuse, Bussmann Series Class CF fuse, TCF, time-delay, dual-element current limiting cube fuse, 30 A, indicating fuse, interrupting rating of 100 kA at 300 Vdc and 300 kA at 600 Vac
Product Name
Eaton Bussmann series TCF fuse
Catalog Number
TCF30
UPC
051712615037
Product Length/Depth
1.88 in
Product Height
1 in
Product Width
0.75 in
Product Weight
0.08 lb
Compliances
RoHS Compliant
Certifications
UL Listed CSA Certified
Amperage Rating
30 A
Frequency rating - max
60 Hz
Frequency rating - min
50 Hz
Interrupt rating
300 kAIC at 600 Vac 100 kAIC at 300 Vdc
Voltage rating
600 Vac, 300 Vdc
Color
Black
Fuse type
Class CF Time delay
Material
Glass filled PES
Number of elements
Dual
Class
Class CF
Connection
Blade end
Fuse indicator
With Indicator
Special features
Finger safe
Used with
TCFH30N, CCP2-3-30CF
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Fuseology
Bussmann series UL Class CF CUBEFuse data sheet no. 9000
Feature: Time-delay, dual-element Class CF design → Business Impact: Superior surge and inrush handling reduce nuisance trips and protect sensitive components → Application: Motor drives, conveyors, and power distribution panels in automation cells. Feature: 30 A amperage rating → Business Impact: Accurate protection for circuits up to 30 A, limiting fault current without unnecessary outages → Application: Control cabinets, machine centers, and feeder circuits requiring precise current limiting. Feature: 600 Vac / 300 Vdc voltage rating → Business Impact: Broad compatibility across AC and DC systems, simplifying panel designs and stock management → Application: Mixed-voltage automation architectures and industrial power rails. Feature: Indicating fuse with blade-end connection → Business Impact: Visual fault indication and quick replacement minimize downtime and service time → Application: Panelboards, control enclosures, and maintenance-friendly installations. Feature: RoHS compliant, UL Listed, CSA Certified → Business Impact: Regulatory compliance and environmental stewardship reduce compliance risk and supplier audits → Application: OEM equipment for global markets requiring recognized certifications. Feature: Glass-filled PES material, black body, dual elements → Business Impact: Enhanced durability and reliable operation in harsh industrial environments → Application: Harsh factory floors, equipment enclosures, and outdoor installations where reliability matters.
Get a Quick Quote for a Eaton TCF30
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TCF30?
Enquire Now
FAQs
Yes. The TCF30 uses a blade-end connection and is designed to be drop-in compatible with Bussmann series cube fuses and standard protection panels. This simplifies retrofits and new installations, reducing wiring time and the risk of mis-matched components in control cabinets.
The TCF30 is rated at 30 A with a voltage rating of 600 Vac and 300 Vdc, and an interrupt rating of up to 300 kAIC at 600 Vac and 100 kAIC at 300 Vdc. These specs support motor drives, power distribution feeders, and inrush-prone loads while maintaining fast fault clearance and system protection.
Time-delay Class CF fuses like the TCF30 are ideal for motors, conveyors, and automation panels where inrush currents are common. They provide long-term protection without nuisance trips during startup, enabling safer start-ups and reduced downtime in manufacturing environments.
The TCF30 carries UL Listed and CSA Certified marks, along with RoHS compliance. These certifications verify electrical safety, cross-border acceptance, and environmental responsibility, which are critical for OEMs selling equipment globally and for regulatory audits.
The indicating fuse provides immediate status visibility, reducing inspection time and enabling quicker fault isolation. This lowers mean time to repair (MTTR), minimizes unplanned downtime, and improves overall equipment efficiency, contributing to a lower total cost of ownership over the product lifecycle.
