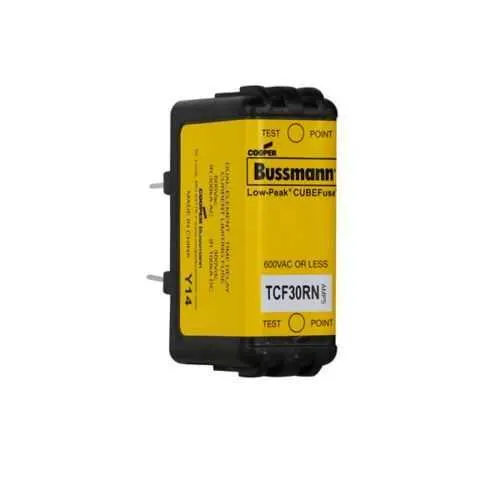

Eaton TCF30RN fuse - UL Listed Class CF Time Delay
Part Number: TCF30RN
Quick Summary
TCF30RN fuse provides time-delay protection for industrial control panels and power distribution. Engineers often struggle with startup nuisance trips and unpredictable short-circuit responses that drive downtime and maintenance costs. UL Listed, CSA Certified, CE Marked and RoHS compliant, these fuses meet global safety and environmental standards while supporting cross-border projects. With a Class CF time-delay profile, dual elements, and a blade-end connection for 35 mm DIN-rail mounting, they fit compact spaces and simplify panel assembly. The 30 A rating and 600 Vac/300 Vdc capability align with common industrial controls, motor drives, and power supplies. This combination minimizes design trade-offs, improves reliability, and helps service teams plan maintenance more predictably.
Product Information
Extended Description
TCF30RN Eaton: Eaton Bussmann Series Class CF fuse, TCF, time-delay, dual-element current limiting cube fuse, 30 A, non-idicating fuse, interrupting rating of 100 kA at 300 Vdc and 300 kA at 600 Vac
Product Name
Eaton Bussmann series TCF fuse
Catalog Number
TCF30RN
UPC
051712220965
Product Length/Depth
1.88 in
Product Height
1.75 in
Product Width
0.75 in
Product Weight
0.08 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Amperage Rating
30 A
Frequency rating - max
60 Hz
Frequency rating - min
50 Hz
Interrupt rating
300 kAIC at 600 Vac 100 kAIC at 300 Vdc
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Color
Black
Fuse type
Class CF Time delay
Material
Glass filled PES
Number of elements
Dual
Packaging type
Standard
Class
Class CF
Connection
Blade end
Fuse indicator
Non-indicating
Mounting method
Chassis 35 mm DIN rail
Special features
Finger safe
Used with
TCFH30N, CCP2-3-30CF
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
The Power of Space
The Power of Space
Bussmann series UL Class CF CUBEFuse data sheet no. 9000
Time-delay Class CF fuse delivers selective protection during motor start-up and transient overloads, reducing nuisance trips while preserving critical equipment. This design translates to fewer unnecessary outages and smoother line operation in conveyors, pumps, and drives. Dual-element construction minimizes arc energy and accelerates fault clearance, enhancing safety and protecting downstream components in harsh industrial environments. The 30 A amperage rating is well-suited for panel feeders and branch circuits, enabling compliant protection without oversizing, which reduces spare-part inventories and total cost of ownership. High interrupt ratings—300 kAIC at 600 Vac and 100 kAIC at 300 Vdc—provide robust fault protection in high-current systems like CNC machines and packaging lines, improving system resilience. Blade-end connection with 35 mm DIN-rail mounting supports fast, tool-free integration into standard control cabinets, reducing installation time and field labor. Finger-safe design adds technician safety during maintenance, while CE RoHS compliance ensures regulatory readiness for global deployments.
Get a Quick Quote for a Eaton TCF30RN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TCF30RN?
Enquire Now
FAQs
Install the blade-end connected fuse onto the DIN rail using standard DIN-rail mounting clips. Verify the panel space, ensure correct orientation for accessible replacement, tighten securely, and confirm the circuit rating matches the 30 A, 600 Vac/300 Vdc capability before power-up.
The TCF30RN uses a Class CF time-delay profile designed for motor start-up surges and transient overloads. It’s ideal for motor control centers, drives, panel boards, and other power distribution points where selective fault protection and nuisance-trip resistance are critical.
Yes, it supports 300 Vdc with an interrupt rating of 100 kAIC, alongside 600 Vac operation. The device is rated at 30 A and provides dual-element protection, suitable for mixed AC/DC control circuits common in industrial environments.
The TCF30RN is UL Listed, CSA Certified, CE Marked, and RoHS compliant. These certifications verify safety, interoperability, and environmental compliance, reducing regulatory barriers in global deployments and helping meet supplier and customer requirements.
With time-delay protection that minimizes nuisance trips and a high interrupt rating for fault currents, downstream equipment experiences fewer outages and shorter downtime. Easy DIN-rail installation lowers labor costs during panel upgrades, and the compact blade-end design reduces spare-parts and stock complexity.
