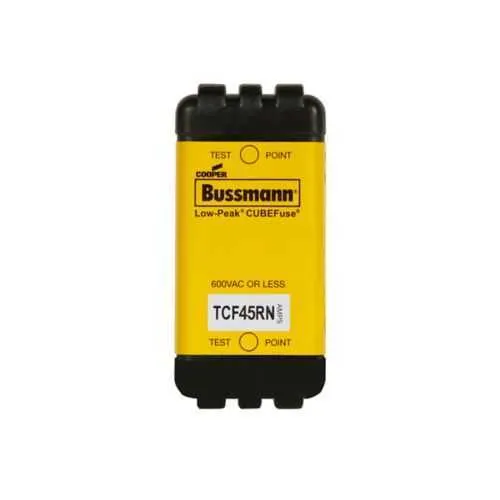

Eaton TCF45RN Fuse - Class CF Time-Delay UL Listed
Part Number: TCF45RN
Quick Summary
The Eaton TCF45RN fuse is a Class CF time-delay device designed for panel and control circuit protection in industrial environments. It helps prevent nuisance trips during motor startups and inrush events, delivering reliable safeguards without sacrificing uptime. This fuse carries UL Listed and CSA Certified markings, is CE marked, and RoHS compliant, ensuring global compliance and easy procurement. With 35 mm DIN rail mounting and a finger-safe chassis, it integrates cleanly into compact control panels while delivering robust interruption capability. For engineers seeking dependable protection with manageable maintenance, the TCF45RN offers a proven combination of efficiency, safety, and lifecycle value.
Product Information
Extended Description
TCF45RN Eaton: Eaton Bussmann Series Class CF fuse, TCF, time-delay, dual-element current limiting cube fuse, 45 A, non-idicating fuse, interrupting rating of 100 kA at 300 Vdc and 300 kA at@ 600 Vac
Product Name
Eaton Bussmann series TCF fuse
Catalog Number
TCF45RN
UPC
051712220996
Product Length/Depth
2.13 in
Product Height
1.9 in
Product Width
1 in
Product Weight
0.17 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Amperage Rating
45 A
Frequency rating - max
60 Hz
Frequency rating - min
50 Hz
Interrupt rating
300 kAIC at 600 Vac 100 kAIC at 300 Vdc
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Color
Black
Fuse type
Class CF Time delay
Material
Glass filled PES
Number of elements
Dual
Packaging type
Standard
Class
Class CF
Connection
Blade end
Fuse indicator
Non-indicating
Mounting method
Chassis 35 mm DIN rail
Special features
Finger safe
Used with
TCFH60N, CCP2-3-60CF
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Fuseology
Bussmann series UL Class CF CUBEFuse data sheet no. 9000
Feature: Class CF time-delay fuse with dual-element current limiting. Benefit: Reduces nuisance trips on motor startups while protecting circuits, enabling smoother equipment startup and less production downtime. Application: Control panels driving conveyors, pumps, and fans in manufacturing lines. Feature: 45 A amperage rating with 600 Vac and 300 Vdc voltage ratings. Benefit: Matches typical industrial loads with high fault tolerance, improving selectivity and downstream protection in power distribution. Application: AC drives and mixed voltage controls in automation systems. Feature: Interrupt ratings up to 300 kAIC at 600 Vac and 100 kAIC at 300 Vdc. Benefit: High fault current handling reduces upstream component stress and allows safer upstream protection design. Application: Heavy-duty panelboards and motor control centers. Feature: Dual-element, non-indicating cube fuse with blade-end connection. Benefit: Simple, reliable installation on standard 35 mm DIN rails with fast replacement and reduced maintenance downtime. Application: OEM panels and retrofit projects requiring quick turnaround. Feature: Material construction of glass-filled PES and finger-safe housing. Benefit: Enhances durability in harsh environments while maintaining safe handling and compliance. Application: Industrial environments with frequent maintenance and finger-safe requirements. Feature: Compatibility with TCFH60N and CCP2-3-60CF family devices. Benefit: Streamlined spare-part strategy and procurement across Bussmann Series protection products. Application: Modern control architectures leveraging modular fuse protection.
Get a Quick Quote for a Eaton TCF45RN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TCF45RN?
Enquire Now
FAQs
The TCF45RN uses a chassis 35 mm DIN rail mounting with blade-end connections for simple drop-in installation in standard control panels. It is compatible with Bussmann Series devices such as TCFH60N and CCP2-3-60CF, which streamlines spare parts stocking and ensures consistent protection across the drive and controller environment.
The fuse is rated at 45 A with voltage ratings of 600 Vac and 300 Vdc. It provides an interrupt rating of 300 kAIC at 600 Vac and 100 kAIC at 300 Vdc, enabling it to safely interrupt high fault currents in typical industrial power distribution and motor circuits.
Yes. As a Class CF time-delay fuse with dual-element current limiting, it tolerates transient inrush associated with motor start-up, reducing nuisance trips while still delivering fast fault clearance. This makes it well suited for motor control centers, conveyors, pumps, and other motor-driven loads.
The TCF45RN is UL Listed and CSA Certified, CE marked, and RoHS compliant. These certifications support global procurement, regulatory approval, and eco-friendly material compliance for OEMs and end users in diverse markets.
The dual-element, time-delay design minimizes downtime due to nuisance trips, while its robust interrupt ratings protect upstream components. Its DIN-rail compatibility and compatibility with related Bussmann devices streamline stocking and maintenance, reducing spare-part costs and improving overall system reliability in power distribution and control panels.
