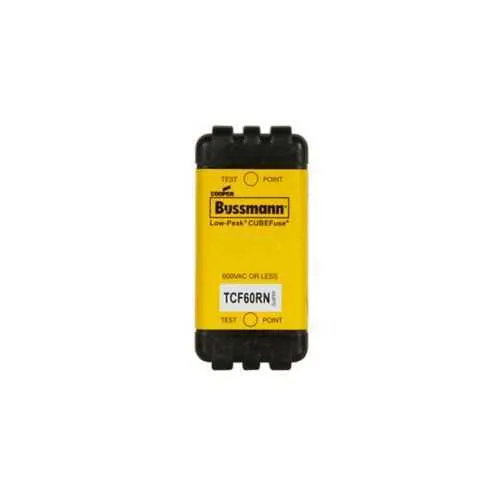

Eaton TCF60RN Fuse - Class CF Time-Delay UL Listed
Part Number: TCF60RN
Quick Summary
The TCF60RN fuse from Eaton Bussmann is a time-delay Class CF cube fuse designed for motor protection and branch circuits in industrial panels. Engineers often wrestle with nuisance trips or insufficient fault-current protection when selecting fuses for motor starters and control circuits. This device carries UL Listed and CSA Certified marks, with CE marking and RoHS compliance to support global regulatory readiness. Its 60 A rating and dual-element design provide reliable protection with fast response, reducing downtime and equipment wear. For design teams, the 2.13 in length and 1 in width paired with 35 mm DIN rail mounting and blade-end connections simplify installation in compact enclosures. To optimize protection schemes, the TCF60RN pairs with related Bussmann CF devices such as TCFH60N and CCP2-3-60CF.
Product Information
Extended Description
TCF60RN Eaton: Eaton Bussmann Series Class CF fuse, TCF, time-delay, dual-element current limiting cube fuse, 60 A, non-idicating fuse, interrupting rating of 100 kA at 300 Vdc and 300 kA at 600 Vac
Product Name
Eaton Bussmann series TCF fuse
Catalog Number
TCF60RN
UPC
051712222556
Product Length/Depth
2.13 in
Product Height
1.9 in
Product Width
1 in
Product Weight
0.17 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Amperage Rating
60 A
Frequency rating - max
60 Hz
Frequency rating - min
50 Hz
Interrupt rating
100 kAIC at 300 Vdc 300 kAIC at 600 Vac
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Color
Black
Fuse type
Class CF Time delay
Material
Glass filled PES
Number of elements
Dual
Packaging type
Standard
Class
Class CF
Connection
Blade end
Fuse indicator
Non-indicating
Mounting method
Chassis 35 mm DIN rail
Special features
Finger safe
Used with
TCFH60N, CCP2-3-60CF
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
The Power of Space
The Power of Space
Bussmann series UL Class CF CUBEFuse data sheet no. 9000
Feature: Time-delay, dual-element Class CF fuse enables selective coordination and high transient tolerance. Business Impact: Reduces nuisance trips during motor starting and transient inrush, extending motor life and stabilizing process operations. Application: Use in motor starters, drives, and branch circuits in manufacturing lines. Feature: High interrupt rating of 300 kAIC at 600 Vac and 100 kAIC at 300 Vdc. Business Impact: Robust short-circuit protection for high-energy systems, minimizing fault energy delivered downstream. Application: Panelboards and OEM equipment where fault currents are unpredictable or high. Feature: Blade-end connection with 35 mm DIN rail mounting and compact footprint (2.13 in L, 1 in W, 1.9 in H). Business Impact: Simplifies installation, reduces panel real estate requirements, and accelerates retrofit projects. Application: Industrial control panels and machine enclosures needing quick, secure mounting. Feature: Non-indicating housing with finger-safe design. Business Impact: Safer handling during maintenance and cleaner panel aesthetics without unnecessary indicators. Application: Enclosed control cabinets in harsh or space-constrained environments. Feature: Compliance and compatibility with UL Listed, CSA Certified, CE Marked, RoHS. Business Impact: Regulatory readiness across North America and Europe, plus green compliance. Application: Global deployments and multi-site projects with one protection strategy. Feature: Compatibility with Bussmann CF family (TCFH60N, CCP2-3-60CF) for coordinated protection schemes. Business Impact: Streamlines protection coordination, simplifies procurement, and reduces engineering lead time. Application: Comprehensive motor protection and control protection schemes across multi-vendor panels.
Get a Quick Quote for a Eaton TCF60RN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TCF60RN?
Enquire Now
FAQs
Yes. The TCF60RN uses a blade-end connection and is designed for chassis mounting on standard 35 mm DIN rails, making it compatible with common control panels and modular enclosures. Its compact footprint (2.13 in L x 1 in W x 1.9 in H) supports easy retrofits and efficient use of panel space.
The fuse is rated for 60 A with a voltage rating of 600 Vac and 300 Vdc. It provides an interrupt rating of 300 kAIC at 600 Vac and 100 kAIC at 300 Vdc, with a response time of 10 seconds at 500% to accommodate typical inrush and transient events.
The TCF60RN is UL Listed and CSA Certified, with CE marking and RoHS compliance. This combination supports regulatory compliance in North America and Europe, enabling safe use in diverse markets and reducing qualification time for global projects.
Best suited for motor protection, control panel circuits, and branch circuits in industrial automation. It’s ideal for motor starters, drives, and equipment where reliable time-delay protection and high fault-current tolerance are required.
Verify DIN rail compatibility and blade-end wiring, ensure the interrupt rating matches system fault currents, and confirm regulatory approvals (UL CSA CE RoHS). Consider using with TCFH60N or CCP2-3-60CF for coordinated protection and streamlined procurement.
