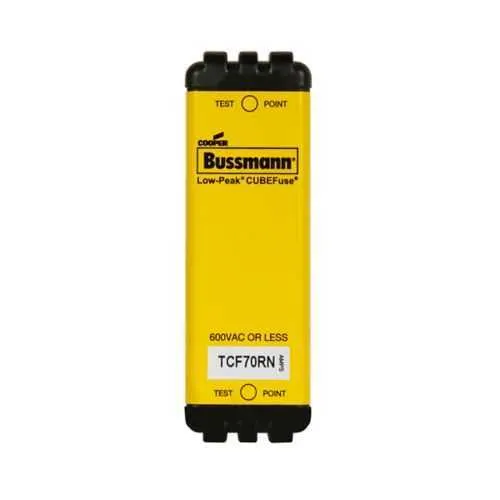

Eaton TCF70RN Fuse - Class CF Time-Delay, UL Listed
Part Number: TCF70RN
Quick Summary
The Eaton TCF70RN fuse provides time-delay protection for motor drives and control circuits in industrial power systems. In practice, engineers face nuisance trips and space constraints that complicate panel protection decisions. This device carries UL Listed and CSA Certified markings, with CE and RoHS compliance to support global deployments. With a 70 A rating and dual-element construction, it delivers selective protection for 600 Vac and 300 Vdc circuits. Designed for 35 mm DIN-rail mounting and blade-end connections, it helps reduce installation time and total cost of ownership.
Product Information
Extended Description
TCF70RN Eaton: Eaton Bussmann Series Class CF fuse, TCF, time-delay, dual-element current limiting cube fuse, 70 A, non-idicating fuse, interrupting rating of 100 kA at 300 Vdc and 300 kA at 600 Vac
Product Name
Eaton Bussmann series TCF fuse
Catalog Number
TCF70RN
UPC
051712236164
Product Length/Depth
3.01 in
Product Height
2.125 in
Product Width
1 in
Product Weight
0.284 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Amperage Rating
70 A
Frequency rating - max
60 Hz
Frequency rating - min
50 Hz
Interrupt rating
100 kAIC at 300 Vdc 300 kAIC at 600 Vac
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Color
Black
Fuse type
Class CF Time delay
Material
Glass filled PES
Number of elements
Dual
Packaging type
Standard
Class
Class CF
Connection
Blade end
Fuse indicator
Non-indicating
Mounting method
Chassis 35 mm DIN rail
Special features
Finger safe
Used with
TCFH100N, CCP2-3-100CF
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
The Power of Space
The Power of Space
Bussmann series UL Class CF CUBEFuse data sheet no. 9000
Feature: Time-delay, dual-element Class CF fuse. Business Impact: Reduces nuisance trips during motor start-up and transient surges, improving equipment uptime and process reliability. Application: Motor control centers and feeders in manufacturing plants where short-duration overloads are common. Feature: 70 A current rating with 600 Vac / 300 Vdc voltage ratings. Business Impact: Provides robust protection for mixed AC/DC circuits while maintaining selectivity across all protection devices. Application: Power distribution panels and DC link sections in drives and controls. Feature: High interrupt ratings of 100 kAIC at 300 Vdc and 300 kAIC at 600 Vac. Business Impact: Safer fault clearance and reduced risk of cascading failures in high-energy systems. Application: Large motors, DC bus protections, and machine-tool applications. Feature: 3.01 in length, 2.125 in height, 1 in width with blade-end connection. Business Impact: Compact footprint and easy drop-in installation in standard 35 mm DIN rails, reducing cabinet rework and stock variety. Application: OEM panel builds and retrofit projects. Feature: RoHS, CE, UL Listed, CSA Certified. Business Impact: Regulatory compliance simplifies procurement and quality reporting, supporting global deployments. Application: International manufacturing facilities and multi-region supply chains.
Get a Quick Quote for a Eaton TCF70RN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TCF70RN?
Enquire Now
FAQs
The TCF70RN uses a blade-end connection and is designed for 35 mm DIN rail mounting in chassis panels. This compact form factor fits standard electrical cabinets without special adapters, and the finger-safe housing reduces risk during maintenance. Replacement is straightforward within the Bussmann CF family, minimizing spare part variety in stock.
The fuse is rated for 70 A with a voltage rating of 600 Vac / 300 Vdc. Its interrupt ratings are 300 kAIC at 600 Vac and 100 kAIC at 300 Vdc, ensuring safe fault clearance in high-energy circuits. The device also offers a time-delay response suitable for motor-start surges and transient overloads, aiding selective protection.
Yes. The TCF70RN is specifically designed for 35 mm DIN rail mounting and blade-end connections, making it ideal for control panels, machine cabinets, and OEM enclosures. Its compact dimensions (3.01 in L × 2.125 in H × 1 in W) help save cabinet space while maintaining robust protection for both AC and DC sections.
TCF70RN carries UL Listed and CSA Certified marks, with CE marking and RoHS compliance. These certifications support global regulatory requirements and environmental standards, simplifying cross-border procurement and helping meet internal safety and sustainability goals within quality management systems.
Its time-delay, dual-element design reduces nuisance trips during motor startups, while its high interrupt ratings ensure reliable fault clearance. The DIN-rail mounting and blade-end connection streamline installation and replacements, lowering labor costs and panel downtime. Combined with RoHS/CE/UL/CSA compliance, it supports predictable maintenance cycles and longer mean time between failures.
