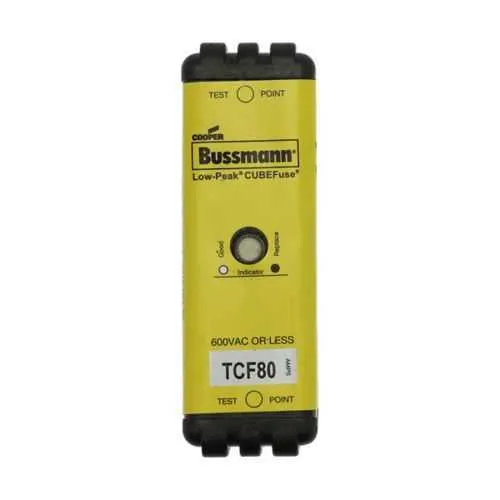

Eaton TCF80 Fuse - UL Listed Class CF Time-Delay
Part Number: TCF80
Quick Summary
The Eaton TCF80 fuse provides time-delay protection for motors in industrial control panels. It reduces nuisance trips during startup surges, helping avoid costly downtime and warranty issues. UL Listed, CSA Certified, and CE RoHS Compliant ensure global regulatory alignment for multi-region installations. Rated 80 A with a voltage rating of 600 Vac / 300 Vdc and a robust 100 kAIC interrupt rating at 300 Vdc (300 kAIC at 600 Vac), it is designed for chassis mounting on 35 mm DIN rails with blade-end connections, and includes a fuse indicator for quick status checks. This combination supports reliable protection in demanding industrial environments while simplifying procurement and compliance. Its dual-element construction further enhances protection against transient faults.
Product Information
Extended Description
TCF80 Eaton: Eaton Bussmann Series Class CF fuse, TCF, time-delay, dual-element current limiting cube fuse, 80 A, indicating fuse, interrupting rating of 100 kA at 300 Vdc and 300 kA at 600 Vac
Product Name
Eaton Bussmann series TCF fuse
Catalog Number
TCF80
UPC
051712618168
EAN
5027590228466
Product Length/Depth
3.01 in
Product Height
2.125 in
Product Width
1 in
Product Weight
0.284 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Amperage Rating
80 A
Frequency rating - max
60 Hz
Frequency rating - min
50 Hz
Interrupt rating
100 kAIC at 300 Vdc 300 kAIC at 600 Vac
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Color
Black
Fuse type
Class CF Time delay
Material
Glass filled PES
Number of elements
Dual
Packaging type
Standard
Class
Class CF
Connection
Blade end
Fuse indicator
With Indicator
Mounting method
Chassis 35 mm DIN rail
Special features
Finger safe
Used with
TCFH100N, CCP2-3-100CF
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
The Power of Space
The Power of Space
Bussmann series UL Class CF CUBEFuse data sheet no. 9000
Feature → Business Impact → Application: The time-delay, dual-element Class CF fuse provides sustained protection during motor inrush and startup surges. Result: Fewer nuisance trips, lower maintenance costs, and improved line reliability in demanding operations. Application: Motor starters, drives, and automation panels in manufacturing plants where reliable surge management is critical. Feature → Business Impact → Application: Very high interrupt ratings—100 kAIC at 300 Vdc and 300 kAIC at 600 Vac—enable rapid fault isolation without cascading faults. Result: Enhanced equipment protection and shorter downtime during short circuits. Application: Power distribution paths and control circuits in heavy industry with elevated fault energy. Feature → Business Impact → Application: The 80 A amperage rating, paired with 600 Vac / 300 Vdc voltage, supports common industrial loads while tolerating momentary overloads. Result: Optimized protection coordination and simpler fuse sizing in panel builds. Application: Industrial panels, feeders, and machine controls in OEM and retrofit projects. Feature → Business Impact → Application: Chassis 35 mm DIN rail mounting with blade-end connections and an integrated fuse indicator simplifies installation and monitoring. Result: Faster commissioning, reduced wiring complexity, and quicker fault diagnosis. Application: New builds and panel refurbishments in automation cabinets and switchgear assemblies. Feature → Business Impact → Application: Finger-safe design with glass-filled PES material reduces handling risk and supports safer field service. Result: Safer replacements and better compliance during maintenance windows. Application: Field service, OEM installations, and routine maintenance across industrial facilities.
Get a Quick Quote for a Eaton TCF80
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TCF80?
Enquire Now
FAQs
The TCF80 uses chassis mounting on a 35 mm DIN rail with blade-end connections, and it includes a fuse indicator for straightforward status checks. This combination simplifies retrofitting into existing control panels, minimizes wiring changes, and accelerates commissioning while maintaining reliable protection for motor circuits.
The TCF80 is rated 80 A with a voltage rating of 600 Vac / 300 Vdc. It provides an interrupt rating of 100 kAIC at 300 Vdc and 300 kAIC at 600 Vac, making it suitable for high-energy fault conditions. It also supports 50–60 Hz operation to align with most industrial systems.
Yes. The time-delay, dual-element Class CF design tolerates startup inrush while delivering selective protection. This reduces nuisance trips and helps prevent unnecessary disconnections of motors and drives, improving uptime in manufacturing and process environments.
The TCF80 is UL Listed and CSA Certified, with CE marking and RoHS compliance. These certifications support regulatory approval across regions, streamline audits, and simplify procurement for global OEMs and integrators working on multi-region machinery.
Choose an 80 A TCF fuse with the same voltage rating for consistent protection coordination. Use the fuse indicator to verify status during maintenance and replace only with the same model (TCF80) to preserve coordination. Maintain clean DIN-rail mounting, inspect blade-end connections, and verify compliance markings during service windows.
