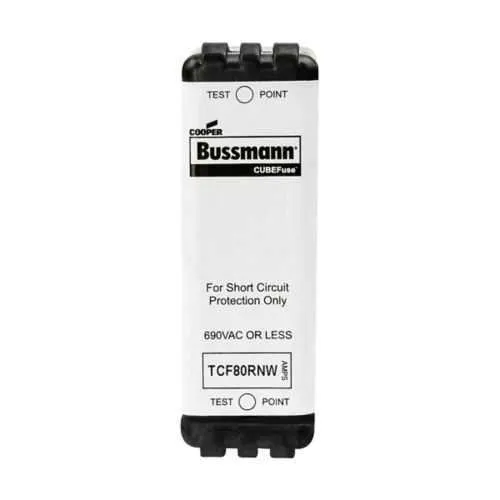

Eaton TCF80RNW fuse - Class CF Time Delay, 80A, 690V
Part Number: TCF80RNW
Quick Summary
Eaton TCF80RNW fuse provides reliable overload protection for industrial AC circuits in panels and enclosures. Nuisance trips and downtime from inrush or motor-start surges are common pain points in modern production lines. This fuse is UL Listed and CSA Certified, CE marked, and RoHS compliant, reinforcing regulatory alignment and safer service life. With a chassis 35 mm DIN rail mounting, blade-end connection, and finger-safe design, it balances ease of installation with robust protection. Using Class CF time-delay technology, it is well suited for motor loads and transformer protection, helping facilities reach uptime targets while simplifying procurement and field service.
Product Information
Extended Description
TCF80RNW Eaton: Eaton Bussmann series TCF fuse, 80 A, 60 Hz, 50 Hz, Dual, Class CF, Black, Non-indicating, Blade end, Class CF, Time delay, 10 sec at 500%, 30 kAIC, Glass filled PES, Chassis, 35 mm DIN rail, Standard, 690 V
Product Name
Eaton Bussmann series TCF fuse
Catalog Number
TCF80RNW
UPC
051712357296
Product Length/Depth
3.01 in
Product Height
2.125 in
Product Width
1 in
Product Weight
0.284 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Amperage Rating
80 A
Frequency rating - max
60 Hz
Frequency rating - min
50 Hz
Interrupt rating
30 kAIC
Response time
10 sec at 500%
Voltage rating
690 Vac
Color
Black
Fuse type
Class CF Time delay
Material
Glass filled PES
Number of elements
Dual
Packaging type
Standard
Class
Class CF
Connection
Blade end
Fuse indicator
Non-indicating
Mounting method
Chassis 35 mm DIN rail
Special features
Finger safe
Used with
TCFH100NW
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
The Power of Space
The Power of Space
Eaton Specification Sheet - TCF80RNW
High-current, time-delay protection for motors and drives is provided by the 80 A rating, 690 Vac operation, 30 kAIC interrupt rating, and a 10 second delay at 500%. This combination reduces nuisance trips during motor start-ups and inrush events, delivering measurable uptime gains and lower maintenance costs in manufacturing lines and HVAC systems. The Class CF time-delay fuse design protects critical loads without sacrificing responsiveness to genuine faults, enabling safer power distribution in control panels and distribution cabinets. The blade-end connection and 35 mm DIN rail chassis mounting simplify installation and replacement, while finger-safe construction minimizes maintenance risk in crowded cabinets. The glass-filled PES body delivers durability in harsh environments, supporting long service life in telecom, automation, and packaging applications. UL Listed, CSA Certified, CE RoHS compliance streamline procurement and regulatory audits, easing cross-border deployments and supplier qualification. Used with TCFH100NW devices, these fuses enable modular protection schemes for scalable motor control and protection architecture across line-side and load-side protection.
