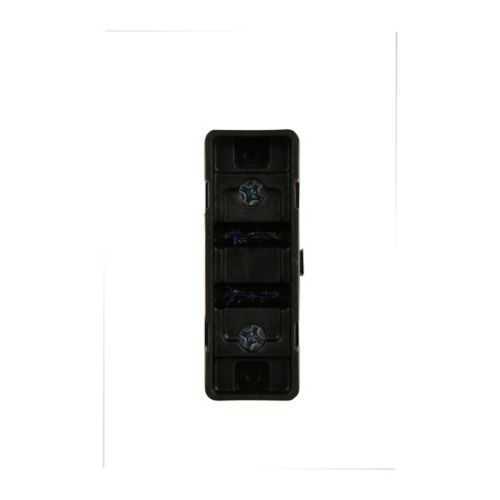

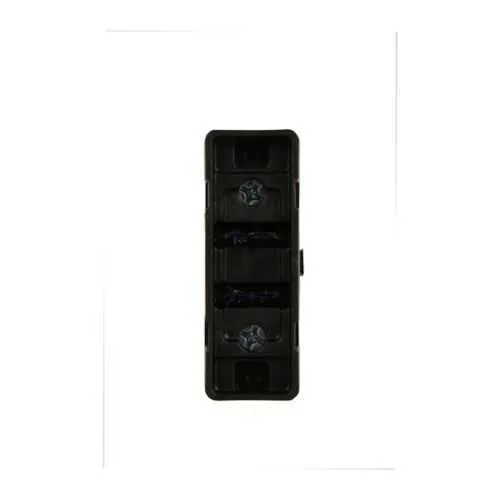

Eaton TCFH100N Modular Fuse Holder - Class CF
Part Number: TCFH100N
Quick Summary
Eaton TCFH100N Modular Fuse Holder protects panels and machinery while enabling quick, safe fuse replacement. Engineers often struggle with finger-safety compliance and access during maintenance, risking downtime. This device carries CE marking, UL listing, and RoHS compliance, offering regulatory assurance for global installations. Built for panel mounting with a compact footprint, it supports reliable protection across electrical protection and control applications. By combining 100 A capacity with 600 Vac/600 Vdc ratings and finger-safe design, it helps reduce downtime, simplify procurement, and streamline panel builds for OEMs. The modular design accommodates low-peak finger safe fuse types commonly used in industrial control cabinets, improving safety and maintenance efficiency.
Product Information
Extended Description
TCFH100N Eaton: Eaton Bussmann series TCFH modular fuse holder, Electrical panelboards, Machinery disconnects, Industrial control, Required finger safe systems, 100 A, Class CF, Glass filled PBT, Panel, 600 Vac/dc, Low-peak finger safe fuse
Product Name
Eaton Bussmann series TCFH modular fuse holder
Catalog Number
TCFH100N
UPC
051712223508
Product Length/Depth
2.91 in
Product Height
2.1 in
Product Width
1.5 in
Product Weight
0.25 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
Contact Manufacturer UL Listed
Amperage Rating
100 A
Voltage rating
600 Vac, 600 Vdc
Material
Glass filled PBT
Class
Class CF
Mounting method
Panel
Used with
low-peak finger safe fuse
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Bussmann series Fuseology
Eaton Specification Sheet - TCFH100N
TCFH100N~CUBFUSE 100 AMP HOLDER HIGH PROFILE
Datasheet - FNQ-30
Feature → Business Impact → Application: Compact, panel-mount form factor with a footprint of 2.91 in depth, 2.1 in height, and 1.5 in width minimizes enclosure footprint while maintaining robust durability. This saves panel space, reduces wiring congestion, and supports denser control cabinets without sacrificing clearance for finger-safe components, making it ideal for electrical protection in machine panels and process controls where space is at a premium. Feature → Business Impact → Application: 100 A amperage rating and 600 Vac/600 Vdc voltage rating deliver scalable protection for heavy machinery and panels. This aligns with Class CF fusing and a glass-filled PBT housing for reliable insulation and heat resistance, suitable for demanding industrial environments. Feature → Business Impact → Application: Compliances include CE Marked and RoHS compliant, with UL Listed certification. This reduces procurement friction across regions, speeds compliance approvals, and simplifies supplier qualification for global rollouts. Feature → Business Impact → Application: Panel mounting with a small footprint and use with low-peak finger safe fuse enables quick installation, easy maintenance, and safer disconnections in electrical protection systems. Feature → Business Impact → Application: Material robustness and safety design improve long-term reliability in harsh environments, reducing replacement cycles and total cost of ownership for panel builders and OEMs.
Get a Quick Quote for a Eaton TCFH100N
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TCFH100N?
Enquire Now
FAQs
The TCFH100N uses a panel mounting method designed for electrical protection and control panels. Its compact footprint (2.91 in x 2.1 in x 1.5 in) fits into standard enclosures, and its finger-safe design facilitates safer wiring and maintenance in tight panel environments.
It is rated for 100 A and supports a voltage rating of 600 Vac or 600 Vdc. The unit carries CE Marking, RoHS compliance, and UL Listed certification, ensuring regulatory alignment and safety conformity across global installations.
The design features low-peak finger safe compatibility and a Class CF rating, paired with UL Listing, CE marking, and RoHS compliance. This combination reduces handling risk during maintenance, supports safer fuse operation, and streamlines regulatory approvals for multi-region deployments.
Official documentation includes Eaton's Specification Sheet for TCFH100N and the Bussmann series catalogs (no. 1007) along with related datasheets. Access to these assets supports accurate installation, compatibility checks, and procurement decisions.
The 100 A rating, compact panel footprint, and finger-safe design reduce enclosure space, simplify maintenance, and lower lifecycle costs. UL/CE/RoHS certifications minimize regulatory risk and accelerate time-to-value in OEM and end-user projects.
