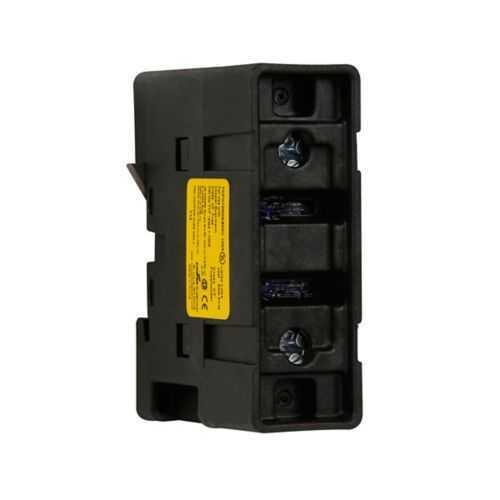

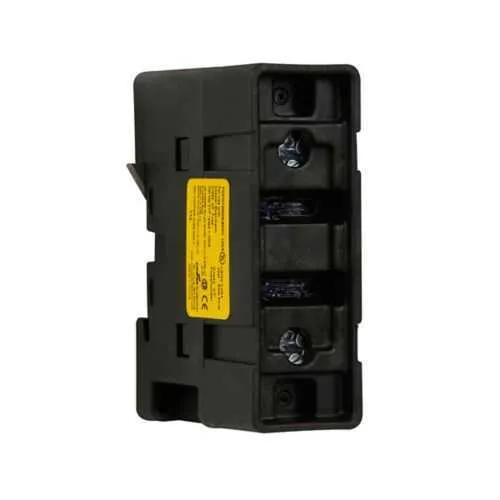

Eaton TCFH100NW Modular Fuse Holder - 600 Vac
Part Number: TCFH100NW
Quick Summary
Eaton TCFH100NW modular fuse holder protects control circuits in industrial panels with a compact, easy-to-install design. When space is tight or wiring gets complex, this unit simplifies mounting and reduces mis-wiring risk. CE Marked and RoHS compliant, with Class CF designation, it aligns with European safety and material standards while ensuring predictable fuse coordination. Operating up to 600 Vac and 300 Vdc at 100 A, it supports scalable protection for machine controls, conveyors, and automation cabinets. Its DIN-rail mounting and finger-safe construction reduce installation time and boost overall panel safety, delivering real business value.
Product Information
Extended Description
TCFH100NW Eaton: Eaton Bussmann series TCFH modular fuse holder, 600 Vac, 300 Vdc, 100 A
Product Name
Eaton Bussmann series TCFH modular fuse holder
Catalog Number
TCFH100NW
UPC
051712357166
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.22 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
100 A
Interrupt rating
300 kAIC 600 Vac 100 kAIC 300 Vdc
Voltage rating
600 Vac, 300 Vdc
Fuse type
CUBEFuse
Material
Glass filled PES
Class
Class CF
Mounting method
Chassis 35 mm DIN rail
Service response time
10 sec at 500%
Special features
Finger safe
TCFH100NW~
TCFH100NW~
Bussmann series Fuseology
Bussmann series Fuseology
Eaton Specification Sheet - TCFH100NW
The TCFH100NW delivers 100 A amperage with a broad voltage range (600 Vac / 300 Vdc) for versatile protection of industrial control circuits. This enables larger loads to be protected without oversizing components, making it ideal for machine panels and conveyor systems. The unit’s interruption ratings of 300 kAIC at 600 Vac and 100 kAIC at 300 Vdc ensure robust fault-current handling, reducing arcing and equipment damage during faults in power distribution networks. CUBEFuse inside and Class CF classification enable standardized protection and selective coordination in multi-fuse assemblies, while the modular design supports easy expansion and quick replacement in evolving control systems. Crafted from glass-filled PES and featuring finger-safe design, it minimizes touch hazards and stands up to heat and chemical exposure in harsh environments, enhancing operator safety and reliability. DIN rail mounting on a 35 mm chassis rail provides fast, tidy installation and clean cable routing, reducing panel time and streamlining maintenance. With a service response time of 10 seconds at 500% overload and compliance to CE and RoHS, the TCFH100NW supports safer, leaner maintenance and regulatory adherence.
