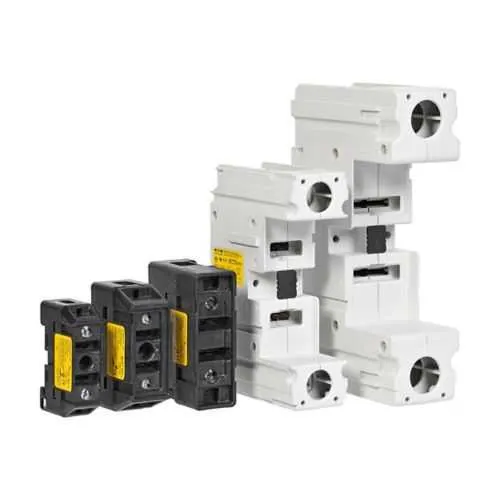

Eaton TCFH200N Modular Fuse Holder - UL Listed
Part Number: TCFH200N
Quick Summary
TCFH200N modular fuse holder is a high‑reliability solution for panel‑mounted electrical protection in distribution panels. Engineers often struggle to fit large fuses in compact panels while maintaining safe replacement and clear fault isolation. UL Listed and RoHS compliant, with a 200 A rating, 200 kA short‑circuit rating, and a 600 V operating capability, it meets stringent safety and regulatory requirements. Its panel‑mount design uses box lug terminals and accepts industry standard accessories (CCP2‑L2‑1A, CCP2‑L2‑1, CCP2‑MW2‑6, CCP2‑MW2‑3), simplifying installation and future upgrades. In industrial automation, this Eaton Bussmann series part delivers reliable protection, fast maintenance, and lower lifecycle costs for control panels today.
Product Information
Extended Description
TCFH200N Eaton: Eaton 67090617, Modular fuse holder, 200 A, Single-pole, Class CF, CCP2-L2-1A, CCP2-L2-1, CCP2-MW2-6, CCP2-MW2-3, 200 kA, Gray, Box lug, 200 kAIC, 75 °C, Panel, Standard, 1, 600 V, 110-200 A CUBEfuse, #4 AWG-350 kcmil
Product Name
Eaton Bussmann series TCFH modular fuse holder
Catalog Number
TCFH200N
UPC
051712746199
Product Length/Depth
4.9 in
Product Height
3.36 in
Product Width
1.37 in
Product Weight
0.676 lb
Compliances
Contact Manufacturer RoHS Compliant
Certifications
UL Listed
Amperage Rating
200 A
Short-circuit rating
200 kA
Voltage rating
600 V
Color
Gray
Conductor temperature rating
75 °C
Number of Poles
Single-pole
Packaging type
Standard
Wire size
#4 AWG-350 kcmil
Accessories
CCP2-L2-1A, CCP2-L2-1, CCP2-MW2-6, CCP2-MW2-3
Class
Class CF
Connection
Box lug
Mounting method
Panel
Quantity
1
Used with
110-200 A CUBEfuse
Feature: 200 A amperage rating with a 200 kA short-circuit rating and 600 V voltage rating. Business Impact: High fault tolerance and robust protection reduce upstream fuse operations and improve safety margins. Application: Ideal for medium-to-high power panel boards in manufacturing or processing environments. Feature: Single‑pole, Class CF design with panel mounting and box lug connections. Business Impact: Streamlined installation in compact enclosures and easier field maintenance with secure, reliable terminations. Application: Control cabinets and machine panels where quick swap‑outs are common. Feature: Wire sizing supported from #4 AWG to 350 kcmil. Business Impact: Enables direct routing of large feeders without extra adapters, cutting labor and hardware costs. Application: Power feeders and main distribution lines in industrial facilities. Feature: Accessories compatibility CCP2-L2-1A, CCP2-L2-1, CCP2-MW2-6, CCP2-MW2-3. Business Impact: Flexible customization and future expansion without replacing the holder. Application: Retrofit projects and scalable automation architectures. Feature: RoHS compliant and UL Listed with clear compliance context. Business Impact: Reduces regulatory risk and streamlines procurement for regulated industries. Application: Environments with strict material and safety requirements across global facilities.
Get a Quick Quote for a Eaton TCFH200N
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TCFH200N?
Enquire Now
FAQs
The TCFH200N uses a panel mounting design with a box lug connection, supporting single-pole installation. It accepts large conductor wiring from #4 AWG to 350 kcmil, enabling direct feed‑through without extra adapters. Compatible with CCP2 accessories, it simplifies customization for control panels and distribution cabinets in manufacturing environments.
The fuse holder is rated for 200 A with a 200 kA short‑circuit rating and a voltage rating of 600 V. The conductor temperature rating is 75 °C, and it is designed as a single-pole Class CF device. These specs support reliable protection in demanding industrial automation and power distribution applications.
Yes. The TCFH200N is designed to be used with 110-200 A CUBEfuses and accepts CCP2 accessories such as CCP2-L2-1A, CCP2-L2-1, CCP2-MW2-6, and CCP2-MW2-3, enabling modular expansion and easy upgrade paths within Eaton Bussmann’s modular fuse ecosystem for panels and machines.
The TCFH200N is UL Listed and RoHS compliant, supporting regulatory compliance in most global markets. While it is not described as CE or IP-rated in the provided data, UL listing and RoHS compliance are key indicators of safety and material quality for industrial panel applications.
Plan for periodic fuse inspection and replacement within your control panels. The modular design with CCP2 accessories enables quick fuse swaps without panel removal. Given its 200 A rating and 200 kA short‑circuit capability, the unit supports high duty cycles in automation lines, reducing downtime during maintenance and minimizing process disruption.
