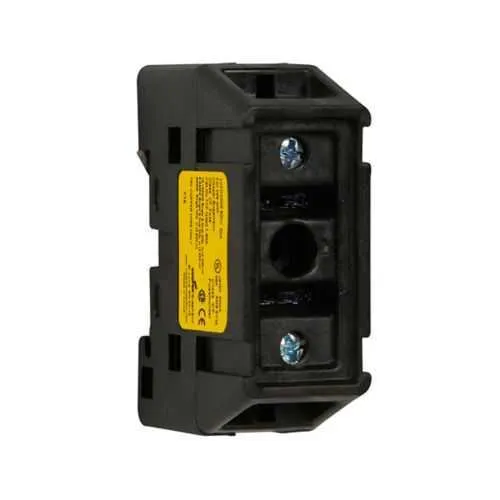

Eaton TCFH30NW Fuse Holder - CE Marked RoHS Compliant
Part Number: TCFH30NW
Quick Summary
TCFH30NW modular fuse holder provides reliable, safe mounting for 600 Vac control circuits in industrial panels. Engineers often struggle with space constraints, safety gaps, and complex wiring when upgrading protection schemes, which can lead to longer downtime and higher risk. This unit is CE marked and RoHS compliant, with Class CF construction and a finger-safe design that supports safer maintenance. With 35 mm DIN rail mounting and compatibility with CUBEFuse cartridges, it streamlines installation in modern control architectures. The combination of rugged materials, clear labeling, and rapid replacement capabilities delivers tangible business value through reduced installation time, improved compliance, and lower total cost of ownership in automation environments.
Product Information
Extended Description
TCFH30NW Eaton: Eaton Bussmann series TCFH modular fuse holder, 600 Vac, 300 Vdc, 30 A, NW
Product Name
Eaton Bussmann series TCFH modular fuse holder
Catalog Number
TCFH30NW
UPC
051712357784
Product Length/Depth
2.5 in
Product Height
1 in
Product Width
1 in
Product Weight
0.097 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
30 A
Interrupt rating
100 kAIC 300 Vdc 300 kAIC 600 Vac
Voltage rating
600 Vac, 300 Vdc
Fuse type
CUBEFuse
Material
Glass filled PES
Class
Class CF
Mounting method
Chassis 35 mm DIN rail
Service response time
10 sec at 500%
Special features
Finger safe
TCFH30NW~
TCFH30NW~
Bussmann series Fuseology
Bussmann series Fuseology
Eaton Specification Sheet - TCFH30NW
Feature: 30 A amperage rating and 600 Vac / 300 Vdc voltage rating provide robust protection for industrial control circuits. Business impact: protects critical loads while minimizing nuisance trips, enabling reliable machine operation and reduced maintenance intervals. Application: suited for motor drives, MCCs, and panelboards in 600 Vac environments. Feature: 300 kAIC interrupt rating at 600 Vac (and 100 kAIC at 300 Vdc) delivers high fault-current protection. Business impact: enhances system resilience in high-short-circuit scenarios, reducing risk of cascade failures and equipment damage. Application: suitable for high-energy protection schemes in automation panels. Feature: Chassis 35 mm DIN rail mounting and CUBEFuse compatibility enable quick installation and easy fuse replacement. Business impact: reduces installation time and spare-part inventory, improving uptime and lowering labor costs. Application: ideal for modular control panels and retrofit projects. Feature: Finger-safe glass-filled PES housing improves operator safety and durability. Business impact: minimizes risk during maintenance and service calls, supporting safer work environments and compliance with safety standards. Application: widely adopted in maintenance-intensive environments. Feature: CE Mark and RoHS compliance with Class CF construction ensure regulatory adherence and environmental responsibility. Business impact: simplifies procurement for regulated markets and supports sustainability goals. Application: beneficial for global deployments across automotive, manufacturing, and process industries.
Get a Quick Quote for a Eaton TCFH30NW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TCFH30NW?
Enquire Now
FAQs
Yes. The TCFH30NW is designed for 35 mm DIN rail chassis mounting and accepts CUBEFuse cartridges, enabling quick fuse swaps without rewiring. Its finger-safe, glass-filled PES housing enhances operator safety during maintenance, while the integration with standard Bussmann components supports streamlined spare parts. This makes it ideal for new panel builds and retrofits in automated environments.
The TCFH30NW provides a 30 A amperage rating and 600 Vac / 300 Vdc voltage rating. Its interrupt rating is 300 kAIC at 600 Vac and 100 kAIC at 300 Vdc, enabling robust protection against high-energy faults in industrial control circuits. These specs support use in demanding automation installations with stringent protection requirements.
Ideal for industrial control panels, motor control centers, and automated machinery, the TCFH30NW supports up to 30 A in 600 Vac circuits with CUBEFuse compatibility. The DIN rail mounting and finger-safe design help streamline installation, reduce downtime during maintenance, and improve safety in high-energy environments common to manufacturing lines and process automation.
Yes. The TCFH30NW is CE marked and RoHS compliant, aligning with European regulatory requirements for electrical equipment. It also features a Class CF construction and finger-safe design, supporting safe maintenance practices and compliance with industry safety standards across global markets.
The combination of DIN rail mounting, CUBEFuse compatibility, and finger-safe construction reduces installation time and maintenance risk. Operators experience faster fuse replacement, lower downtime, and improved safety during service. Over the life of a panel, this translates to lower labor costs, fewer unplanned outages, and a favorable return on investment for automation projects.
