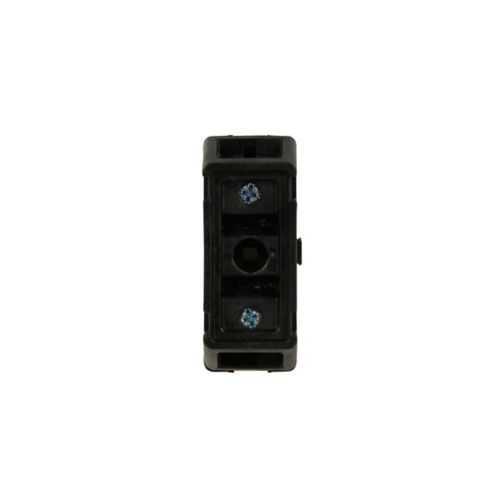

Eaton TCFH60N Modular Fuse Holder - UL Listed
Part Number: TCFH60N
Quick Summary
The Eaton TCFH60N modular fuse holder provides safe, reliable fuse protection for industrial control panels and machinery. This compact, panel-mounted solution helps engineers reduce wiring complexity and save panel space while maintaining safe access. When servicing, finger-safe design and clear labeling minimize exposure to live components during fuse replacement. The unit carries UL Listed and CE RoHS compliance with Class CF qualification, supporting regulatory and safety requirements across global installations. Its 60 A rating and 600 Vac/dc capability cover a wide range of industrial loads, from motors to control circuits. By standardizing on this Bussmann series module, electricians streamline spares, procurement, and maintenance, delivering measurable uptime and lower total cost of ownership.
Product Information
Extended Description
TCFH60N Eaton: Eaton Bussmann series TCFH modular fuse holder, Electrical panelboards, Machinery disconnects, Industrial control, Required finger safe systems, 60 A, Class CF, Glass filled PBT, Panel, 600 Vac/dc, Low-peak finger safe fuse
Product Name
Eaton Bussmann series TCFH modular fuse holder
Catalog Number
TCFH60N
UPC
051712223492
Product Length/Depth
2.6 in
Product Height
1.6 in
Product Width
1.3 in
Product Weight
1.54 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
Contact Manufacturer UL Listed
Amperage Rating
60 A
Voltage rating
600 Vac, 600 Vdc
Material
Glass filled PBT
Class
Class CF
Mounting method
Panel
Used with
low-peak finger safe fuse
Bussmann series complete full line catalog no. 1007
The Power of Space
The Power of Space
Eaton Specification Sheet - TCFH60N
Eaton Specification Sheet - TCFH60N
TCFH60N~CUBEFUSE HOLDER 60 AMP
Datasheet - FNQ-30
Feature 1: 60 A, 600 Vac/dc rating provides robust protection for demanding loads in electrical panelboards and machinery disconnects. Business impact: supports reliable short-circuit and overload protection while enabling compliant, safer installations. Application: suitable for motor starters, control circuits, and 600 V industrial systems. Feature 2: Class CF fuse compatibility and finger-safe design reduce maintenance risk and improve operator safety. Business impact: lowers incident risk during fuse replacement and simplifies compliance with safety standards. Application: ideal for high-density control panels in manufacturing lines. Feature 3: Glass-filled PBT housing delivers durability in harsh environments with good dimensional stability. Business impact: long-term reliability reduces maintenance cycles and spare part costs. Application: ideal for industrial environments with vibration and temperature variation. Feature 4: Panel mounting with a compact footprint enables dense, organized control panels. Business impact: increases usable panel space and simplifies wiring harness routing. Application: suitable for panelboard assemblies and machine control enclosures. Feature 5: Compatibility with low-peak finger safe fuses from the Bussmann series reduces stock variety. Business impact: simplifies procurement, improves uptime, and lowers total cost of ownership. Application: standardized across equipment fleets for easier maintenance.
Get a Quick Quote for a Eaton TCFH60N
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TCFH60N?
Enquire Now
FAQs
The TCFH60N is designed for Eaton Bussmann series low-peak finger-safe fuses and supports Class CF fuses rated at 60 A with 600 Vac/dc. It is not a universal holder for all fuse classes, so verify form factor and ratings when selecting replacements. This standardization helps ensure safe, consistent protection across panels.
TCFH60N carries UL Listed certification for trusted safety compliance and CE Marking with RoHS compliance, aligning with global regulatory requirements. The product also uses a Class CF fuse system, which supports widespread industry acceptance and safety in electrical panels and machinery.
The fuse holder measures 2.6 inches in depth, 1.6 inches in height, and 1.3 inches in width, with an approximate weight of 1.54 pounds. It is designed for panel mounting, enabling a compact footprint within crowded control cabinets while maintaining accessibility for fuse replacement.
The finger-safe design minimizes exposure to live conductors during fuse replacement, reducing the risk of accidental contact. This is complemented by clear labeling and standardized Bussmann series components, enabling technicians to perform maintenance quickly and safely with minimal training.
Standardizing on the TCFH60N delivers lower total cost of ownership through reduced spares variety, easier procurement, and faster maintenance. Its UL/CE RoHS compliance and durable glass-filled PBT construction translate to longer service intervals in demanding industrial environments, improving uptime and reducing downtime-related costs.
