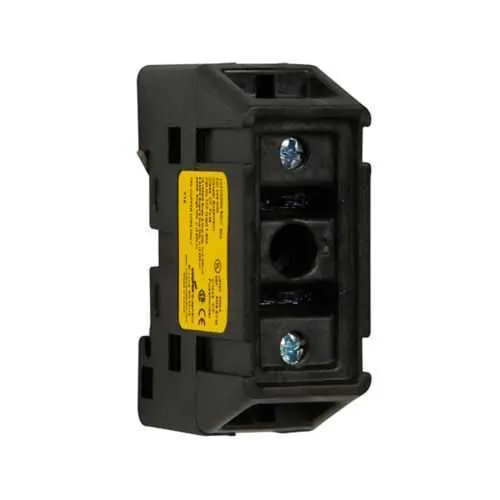

Eaton TCFH60NW Modular fuse holder - 690 V Class CF
Part Number: TCFH60NW
Quick Summary
Eaton TCFH60NW modular fuse holder securely houses 1-60 A fuses for 690 V circuits in industrial panels. Its modular design minimizes downtime during fuse changes and simplifies wiring in control cabinets, addressing a common maintenance bottleneck. CE Marked and RoHS compliant, with Class CF protection, these certifications support global compliance and safer operation. For panel builders and OEMs, the Bussmann series compatibility and compact footprint translate into shorter lead times and lower spare-parts inventories while maintaining protective performance. Designed for easy integration with Eaton Bussmann fuses, it enables scalable protection across multiple machines.
Product Information
Extended Description
TCFH60NW Eaton: Eaton Bussmann series TCFH modular fuse holder, 690 V, 1-60 A
Product Name
Eaton Bussmann series TCFH modular fuse holder
Catalog Number
TCFH60NW
UPC
051712357777
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.22 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
1-60A
Voltage rating
690 V
Class
Class CF
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
The Power of Space
The Power of Space
Eaton Specification Sheet - TCFH60NW
The 690 V electrical rating combined with a 1-60 A amperage range allows reliable protection for a broad set of control circuits, reducing the risk of overcurrent events and enabling consistent performance in automated equipment. The modular fuse holder design delivers tangible business impact by shortening maintenance windows, enabling rapid fuse replacement in high-availability lines, and reducing wiring complexity through standardized fuse modules. This aligns with applications in industrial panels and machine control where uptime is critical and regulatory compliance must be straightforward; the solution supports long-term cost reductions through part standardization and easier stocking. CE Marking and RoHS compliance streamline global deployments, while Class CF provides a clear protection class framework for safety-critical circuits. Compatibility with the Bussmann series ensures seamless inventory management and supplier consolidation, improving procurement efficiency and project scalability.
Get a Quick Quote for a Eaton TCFH60NW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TCFH60NW?
Enquire Now
FAQs
Yes. The TCFH60NW is rated for 690 V and supports a current range of 1-60 A, making it suitable for high-voltage control circuits in industrial panels. It is designed to accept fuses from the Eaton Bussmann series, enabling standardized protection across multiple machines and panel builds.
The modular fuse holder allows for quick field replacement of individual fuse modules without dismantling the entire assembly. This minimizes downtime during fuse changes, simplifies wiring, and supports faster stocking of replacement parts, which is especially valuable in high-availability manufacturing lines.
The TCFH60NW is CE marked and RoHS compliant, providing alignment with European regulatory requirements and responsible material usage. While UL or other certifications are manufacturer-dependent, these two certifications cover broad global deployment, and the Class CF designation clarifies the protection class for safety-critical circuits.
Plan for compatible Bussmann series fuses and a panel footprint that accommodates the modular housing. The unit is designed to operate in 690 V systems and supports 1-60 A protection. Ensure inventory alignment with the provided UPC (051712357777) for efficient procurement and consistent replacement parts in existing control cabinets.
The modular design reduces downtime during fuse changes, lowers spare parts variety by standardizing on Bussmann series components, and improves maintenance predictability. Over time, this translates to shorter repair windows, less production interruption, and lower total cost of ownership in high-demand automation and process lines.
