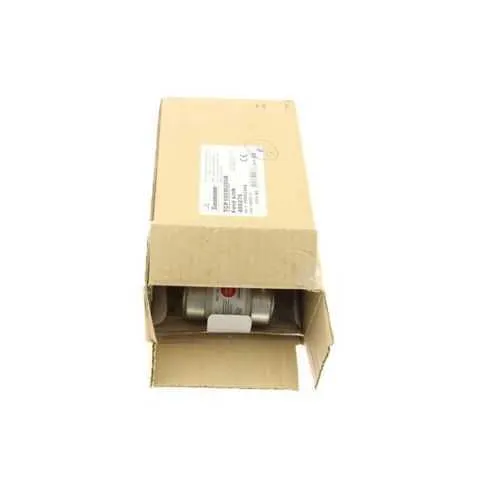

Eaton TCP100M125A Low-Voltage Fuse - IEC Rated
Part Number: TCP100M125A
Quick Summary
The Eaton TCP100M125A is a low-voltage British standard fuse designed to protect electrical distribution panels and switchgear. Engineers often confront nuisance tripping and inconsistent protection that disrupts uptime; this model delivers a precise 100 A rating with robust fault-clearing performance to minimize outages. It carries IEC Rated certification and supportive UKCA documentation, aligning with regulatory expectations in UK and EU facilities. The fuse integrates smoothly with the Eaton Bussmann series and standard fuse holders, offering straightforward installation and reliable lifecycle protection. For panel builders, OEMs, and maintenance teams, the TCP100M125A translates into improved reliability, safer operation, and streamlined procurement workflows in industrial environments.
Product Information
Extended Description
TCP100M125A Eaton: Eaton Bussmann series low voltage british standard fuse, 100A, AC 660 V, DC 460 V, V88/A4, 26 x 110 mm, gM, 100M125
Product Name
Eaton Bussmann series low voltage british standard fuse
Catalog Number
TCP100M125A
UPC
051712485128
EAN
5027590513371
Product Length/Depth
111 mm
Product Height
34 mm
Product Width
34 mm
Product Weight
194.7 g
Warranty
No warranty
Compliances
Not Applicable
Certifications
IEC Rated
Feature: 100 A current rating with AC 660 V and DC 460 V capabilities → Business Impact: Protects power circuits with appropriate interrupting capacity to prevent equipment damage and fire risk, reducing downtime and extending equipment life; Application: Motor control centers, distribution panels in industrial plants. Feature: Compact 26 x 110 mm form factor and 111 mm length with 34 x 34 mm footprint → Business Impact: Enables easy retrofit into crowded enclosures and standard Bussmann series holders, lowering installation time and minimizing cabinet alterations; Application: Retrofit projects and new builds requiring compact protection solutions. Feature: gM class fuse designation (IEC rated) and V88/A4 compatibility → Business Impact: Provides recognized industry protection standards and predictable tripping behavior, improving safety margins and compliance in critical systems; Application: PLC power rails and control loops in automation cells. Feature: British standard fuse lineage with catalog TCP100M125A → Business Impact: Aligns with established procurement channels and spare parts inventories, reducing stocking complexity; Application: UK-based panel assemblies and distributed control assemblies. Feature: Certifications and documentation (IEC Rated; UKCA declarations available) → Business Impact: Supports regulatory compliance and traceability for audits, speeding validation and project sign-off; Application: Commercial installations and maintenance audits in regulated markets.
Get a Quick Quote for a Eaton TCP100M125A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TCP100M125A?
Enquire Now
FAQs
TCP100M125A uses a common 26 x 110 mm form factor with an overall length of 111 mm and fits standard Bussmann series holders. It is designed for straightforward drop-in replacement in UK panels and legacy switchgear, minimizing retrofit complexity and avoiding enclosure modifications.
This fuse excels in protection for distribution panels, motor control centers, and automation switchgear operating at low voltage. With 100 A current rating and IEC Rated certification, it delivers reliable interruption performance for critical processes while supporting modular panel designs and scalable automation architectures.
The TCP100M125A carries IEC Rated certification and is supported by UKCA declarations of conformity. Documentation includes UKCA redspot fuse-link declarations and Eaton product catalogs, helping engineers meet regulatory and supplier qualification requirements during audits.
Key specs include 100 A current rating, AC maximum 660 V and DC maximum 460 V, gM classification, and a 26 x 110 mm footprint with 111 mm length. These parameters define protection scope for distribution circuits and ensure compatibility with standard industrial power architectures.
By providing reliable protection with precise tripping characteristics, the TCP100M125A reduces nuisance trips, lowers maintenance costs, and minimizes downtime in critical lines. Its compatibility with existing Bussmann series stock, straightforward installation, and certification alignment further shorten commissioning time and improve overall device availability.
