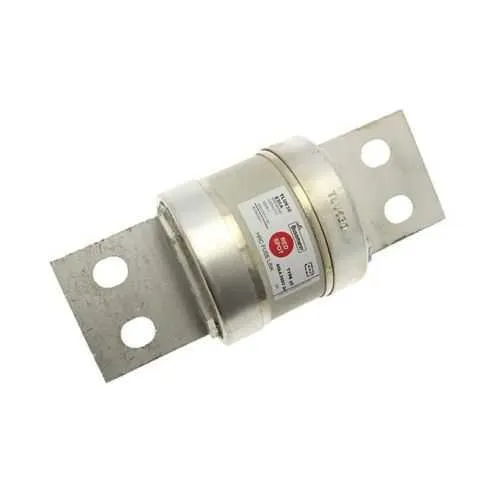

Eaton TLU560 Low Voltage British Standard Fuse - BS88
Part Number: TLU560
Quick Summary
TLU560 is a low voltage British standard fuse that protects industrial power circuits. Engineers often struggle to find a device that meets BS88, IEC 60269, CE Mark and RoHS requirements while fitting a compact panel. This unit carries BS88 and IEC 60269 certifications and is CE marked and RoHS compliant, ensuring regulatory alignment for UK and EU installations. With a 560 A current rating and 660 V AC / 350 V DC capabilities, it supports high-energy feeders in modern electrical boards. The design also supports straightforward procurement and panel integration, reducing downtime and spare-part variation. By choosing Eaton Bussmann's Red Spot family, you gain reliability, serviceability, and a consistent supply chain for critical protection tasks.
Product Information
Extended Description
TLU560 Eaton: Eaton Bussmann series low voltage british standard fuse, 560A, AC 660 V, DC 350 V, V88/D1, 84 x 200 mm, gL/gG
Product Name
Eaton Bussmann series low voltage british standard fuse
Catalog Number
TLU560
EAN
5050096003251
Product Length/Depth
210 mm
Product Height
83 mm
Product Width
83 mm
Product Weight
1905 g
Compliances
CE Marked RoHS Compliant
Certifications
BS88 IEC 60269 EAC
CA134002EN
UKCA Redspot fuse-links
UKCA Redspot fuse-links
Eaton Bussmann - Red Spot fuse links
10078 Red spot centre bolted fuses:TB, TBC, TC, TF, TKF, TKM, TMF, TM, TMT, TTM, TLM, TT, TLU,TXU fuses
Feature: High current rating of 560 A. Business Impact: Enables protection of large feeders without frequent fuse changes, improving uptime and reducing maintenance costs. Application: Industrial power distribution panels serve high-load machinery and process lines. Feature: Compliance with BS88, IEC 60269, CE, and RoHS. Business Impact: Simplifies regulatory approvals and cross-border installs, lowering project risk. Application: UK and EU commercial and industrial installations requiring certified protection. Feature: gL/gG fuse class designation. Business Impact: Enhances selective coordination and fault isolation, safeguarding equipment downstream while simplifying fault analysis. Application: Main and feeder protections in switchgear and control panels. Feature: 210 mm depth and cross-section friendly dimensions (210 mm length, 83 mm width, 83 mm height). Business Impact: Fits compact enclosures and existing Bussmann holders with minimal modification. Application: Retrofit or new-build panels where space is at a premium. Feature: Center-bolted design (Red Spot) for robust, vibration-resistant connections. Business Impact: Reduces connection looseness in harsh environments, extending service intervals. Application: Heavy-duty industrial environments with equipment vibration. Feature: 84 x 200 mm reference sizing in extended description and 560 A rating. Business Impact: Aligns with standard-size fuse bases and cut-out dimensions for predictable procurement. Application: Standard BS88 fuse cut-outs and protective assemblies across plant infrastructure.
Get a Quick Quote for a Eaton TLU560
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TLU560?
Enquire Now
FAQs
Install the TLU560 in a compatible BS88 fuse holder or cut-out designed for centre-bolted fuses. Ensure proper alignment with the panel’s busbars, secure the fuse in the holder, and verify clearances for the 210 mm depth. Use appropriate PPE and follow Eaton’s installation guidelines to maintain regulatory compliance.
TLU560 is rated for 560 A, with AC up to 660 V and DC up to 350 V. It is classified as gL/gG, conforming to BS88 and IEC 60269 standards, and supports RoHS and CE compliance for regulated environments.
Yes. With a 560 A rating and BS88/IEC 60269 compliance, the TLU560 is designed for industrial feeders and large distribution boards, providing reliable protection while fitting standard British standard fuse assemblies.
TLU560 complies with BS88, IEC 60269, CE marking, and RoHS. This matters because it ensures regulatory alignment in the UK and EU, simplifies procurement across international sites, and supports safer, compliant protection of electrical systems.
The TLU560 offers long service life under high-load conditions, reducing replacement frequency. Its standardized sizing and compatibility with Eaton Bussmann series components streamline spares management, minimize downtime during maintenance, and improve overall system reliability and return on investment.
