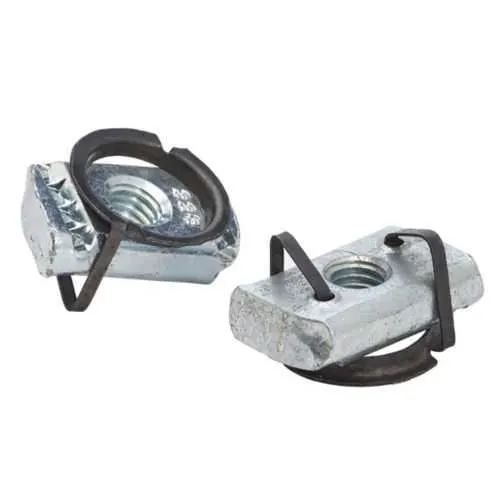

Eaton TN228-20 Channel Nut - UL Listed
Part Number: TN228-20
Quick Summary
Eaton TN228-20 Channel Nut is a hardware accessory that secures channel struts in electrical enclosures. This compact fastener delivers precise alignment and a dependable anchoring point, reducing installation variability. Installs can be challenging when fittings loosen or misalign, leading to downtime and safety concerns. The TN228-20 is UL Listed, reinforcing safety and reliability in demanding environments. Designed for Eaton B-Line series channel struts, it installs quickly and stays aligned, supporting scalable rack configurations while minimizing maintenance. From manufacturing floors to data-center enclosures, this compact channel nut balances performance with material efficiency, helping engineers meet project timelines and budget constraints without compromising safety or reliability.
Product Information
Extended Description
TN228-20 Eaton: Eaton B-Line series other enclosure accessories, Used on channel struts, Channel nuts, Hardware
Product Name
Eaton B-Line series other enclosure accessories
Catalog Number
TN228-20
UPC
782051326642
Product Height
1 in
Product Diameter
0.375 in
Product Weight
0.303 lb
Certifications
UL Listed
Application
Used on channel struts
Style
Channel nut
Product Category
Hardware
Type
Channel nuts
Feature: TN228-20 is a dedicated channel nut for Eaton B-Line series channel struts. Business Impact: It provides a precise, repeatable fastening point that minimizes misalignment, drop-in hardware loss, and rework during panel assembly. Application: It anchors channel-mounted components in enclosure rails and accessory installations, enabling consistent alignment across multiple enclosures in manufacturing plants and data centers. Feature: UL Listed certification validates safety and reliability in industrial environments. Business Impact: Demonstrates compliance with electrical safety standards, helping with audits and customer qualification. Application: Particularly valuable in high-risk installations like control cabinets and power distribution enclosures. Feature: Compact dimensions of 1 in height and 0.375 in diameter, weight 0.303 lb. Business Impact: Enables tight-fit installations and easier handling, reducing labor time and inventory space. Application: Fits within standard Eaton B-Line channel nuts and channel struts in constrained rack layouts. Feature: Designed for fast installation on channel struts. Business Impact: Speeds assembly by enabling quick, repeatable engagement and precise positioning. Application: Suitable for high-volume assembly lines and modular enclosure projects in manufacturing and data centers.
Get a Quick Quote for a Eaton TN228-20
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TN228-20?
Enquire Now
FAQs
To install TN228-20, align the channel nut with the channel strut slot, slide it into place, and engage the nut by tightening the corresponding fastener until secure. The 1 in height and 0.375 in diameter ensure a snug fit within standard B-Line channel rails, providing reliable engagement even in vibration-prone environments.
TN228-20 is catalog number TN228-20, UPC 782051326642, with product height of 1 in, product diameter of 0.375 in, and product weight of 0.303 lb. It is UL Listed and intended for use on Eaton B-Line series channel struts, serving as a dedicated channel nut for enclosure hardware.
Yes, TN228-20 is UL Listed, indicating compliance with safety standards that support reliable performance under industrial conditions. Its channel-nut design provides a secure, repeatable fastening point on Eaton B-Line channel struts, reducing loosening risks that can accompany vibrations in control cabinets and service cabinets.
TN228-20 is specifically designed for Eaton B-Line series channel struts. While some channel systems may share dimensions, compatibility with non-Eaton brands is not guaranteed. For best results and regulatory compliance, use TN228-20 with the intended B-Line channel rails or consult Eaton’s compatibility guidance.
TN228-20 delivers time savings through fast, repeatable installation and reduced misalignment, lowering labor costs and rework. Its UL Listed certification supports compliance during audits, while compact dimensions enable denser rack configurations. In short, it accelerates project timelines without sacrificing safety or reliability.
