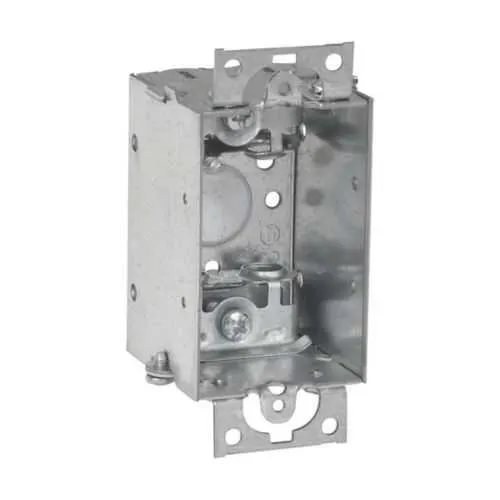

Eaton TP120 Switch Box NEC/CEC
Part Number: TP120
Quick Summary
Eaton TP120 switch box is a rugged steel enclosure designed to protect electrical terminations in industrial panels. This solution addresses common pain points such as cramped wiring spaces, inconsistent knockouts, and slow installation times. It is NEC/CEC compliant and rated for Ordinary/Non-Hazardous Locations, with a 10 cubic inch capacity and a gangable design that scales with your control layouts. By delivering durable construction, straightforward mounting, and reliable compatibility with AC/MC cables, it enables faster installation, easier maintenance, and consistent compliance across projects. Whether you're upgrading legacy equipment or designing a new line, TP120 provides predictable performance and cost discipline.
Product Information
Extended Description
TP120 Eaton: Eaton Crouse-Hinds series Switch Box, (1) 1/2", 2, AC/MC clamps, 2", Steel, Ears, Gangable, 10.0 cubic inch capacity
Product Name
Eaton Crouse-Hinds series switch box
Catalog Number
TP120
UPC
786189101201
Product Length/Depth
2 in
Product Height
3 in
Product Width
2 in
Product Weight
0.54 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Depth
2"
Type
Gangable
Capacity
10 cubic in
Conduit/cable
AC/MC clamps
Bottom Knockouts
(1) 1/2 in
Cable knockouts
2
Material
Steel
Special features
Ears
Crouse-Hinds series Steel Switch Boxes catalog page
Steel Switch Boxes Canadian certification
Steel Switch Boxes Canadian certification
Eaton Specification Sheet - TP120
Eaton Specification Sheet - TP120
Feature: Steel construction delivers rugged durability for harsh factory environments. Benefit: Reduces replacement costs and downtime while protecting terminations. Application: Ideal for machine controls and control panels in commercial and industrial facilities. Feature: 10 cubic inch capacity with (1) 1/2 in bottom knockout and 2 cable knockouts. Benefit: Allows flexible conductor routing and compact wiring layouts, minimizing panel footprint. Application: Small to mid-size control circuits and localized terminations. Feature: AC/MC clamps included. Benefit: Speeds wiring installation and ensures secure, code-compliant terminations with fewer separate components. Application: Directly supports standard conduit and cable runs in panel boxes. Feature: Gangable design with ears. Benefit: Scales to multi-box configurations without special adapters, enabling clean, modular panel architectures. Application: Multi-gang assemblies in equipment cabinets and control enclosures. Feature: Lightweight 0.54 lb and compact dimensions (2 in x 3 in x 2 in). Benefit: Easier handling, faster mounting, and suitability for tight spaces or retrofits. Application: Retrofit projects and compact control panels where space is at a premium. Feature: Certifications for NEC/CEC and Ordinary/Non-Hazardous Locations. Benefit: Accelerates compliance reviews, reduces rework, and supports safe operation in standard environments. Application: General industrial and commercial installations requiring code adherence.
Get a Quick Quote for a Eaton TP120
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP120?
Enquire Now
FAQs
For proper wiring, use the bottom knockout (1/2 in) for primary feed and the two cable knockouts for multi-path routing. The included AC/MC clamps simplify securing conductors, reducing fittings and time. Ensure mounting is level with the ears to enable stable gangable configurations in panel enclosures.
The TP120 is specified for Ordinary/Non-Hazardous Locations and aligns with NEC/CEC standards for steel switch boxes. This supports compliant terminations in general industrial and commercial panels, reducing rework and easing regulatory approvals during inspections.
Yes. The TP120 is gangable and features ears for mounting, enabling seamless expansion by adjoining additional boxes. This makes it well-suited for compact control cabinets where space is limited but multiple terminations are required.
The TP120 measures 2 in depth, 3 in height, and 2 in width, with a 10 cubic inch capacity. It weighs 0.54 lb. These specs support modest wiring bundles, allow for AC/MC clamps, and guide knockouts placement for efficient, code-compliant terminations in tight spaces.
The TP120 enables faster installation through built‑in AC/MC clamps and a straightforward mounting approach, while its steel construction reduces replacement needs. Compliance with NEC/CEC lowers rework risk, contributing to lower lifecycle maintenance costs and more predictable project budgets.
