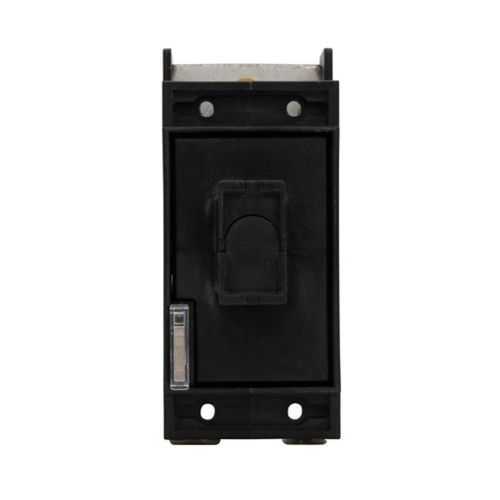

Eaton TP158HC Fuse Disconnect Switch - 100 kA SCCR
Part Number: TP158HC
Quick Summary
TP158HC fuse disconnect switch provides reliable DC isolation for industrial panels in power distribution and critical machinery. Engineers often struggle with maintaining safe disconnection under high current while meeting SCCR requirements. Key features include an 80 Vdc rating, a 70–250 A current range, and a 100 kA short‑circuit current rating, with RoHS compliance. This panel‑mounted device is designed for Type TPL‑B fuses, offering straightforward integration with existing protection schemes. Its thermoplastic housing and 1/4 in-20 TPI bolt line terminals support quick installation and robust field performance, helping maintain uptime while ensuring regulatory compliance and easier maintenance planning.
Product Information
Extended Description
TP158HC Eaton: Eaton Bussmann series TP15 fuse disconnect switch, 80 Vdc, 70-250A, Fusible, 1/4 In-20 TPI Bolt Line Terminal, SCCR: 100 kA, Panel, Thermoplastic - TP158HC
Product Name
Eaton Bussmann series TP15 fuse disconnect switch
Catalog Number
TP158HC
UPC
051712663717
Product Length/Depth
4.58 in
Product Height
4.4 in
Product Width
1.97 in
Product Weight
0.77 lb
Warranty
Not Applicable
Compliances
Not Applicable RoHS Compliant
Certifications
Contact factory
Amperage Rating
70-250A
Short-circuit rating
100 kA
Voltage rating
80 Vdc
Material
Thermoplastic
Operating temperature - max
150 °C
Operating temperature - min
150 °C
Connection
1/4 inch - 20 TPI bolt line terminal
Mounting method
Panel
Used with
Used with Type TPL-B fuse
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - TP158HC
TP158HC~TELPOWER FUSED DISC.
TP158HC~TELPOWER FUSED DISC.
Datasheet - FNQ-30
Feature → Business Impact → Application: The TP158HC provides DC protection with an 80 Vdc rating and a 70–250 A current range, delivering reliable isolation for panel-mounted power systems and motor control networks. This translates to improved fault containment and reduced risk of collateral damage during faults, which is essential in battery banks and DC distribution panels. Application: used in industrial panels requiring tight current control and fast disconnection, particularly where Type TPL‑B fuses are deployed. Feature → Business Impact → Application: A 100 kA SCCR enables TP158HC to interrupt high fault currents without compromising safety, supporting compliant DC protection in demanding installations and minimizing unplanned downtime from fuse failures. Application: suitable for large DC systems and critical machinery in manufacturing lines. Feature → Business Impact → Application: 1/4 inch-20 bolt line terminals and panel mounting simplify wiring and mounting, reducing installation time and field errors. Application: ideal for retrofit projects and new builds with standard panel hardware. Feature → Business Impact → Application: Thermoplastic construction withstands elevated temperatures up to 150 °C, expanding suitability for harsh industrial environments and reducing enclosure heat management requirements. Application: panel enclosures in heat-prone areas and high‑ambient installations. Feature → Business Impact → Application: RoHS compliance supports regulatory adherence and sustainability goals while Type TPL‑B fuse compatibility ensures reliable, current‑rated protection. Application: design for modern, compliant DC protection schemes with easy sourcing and maintenance.
