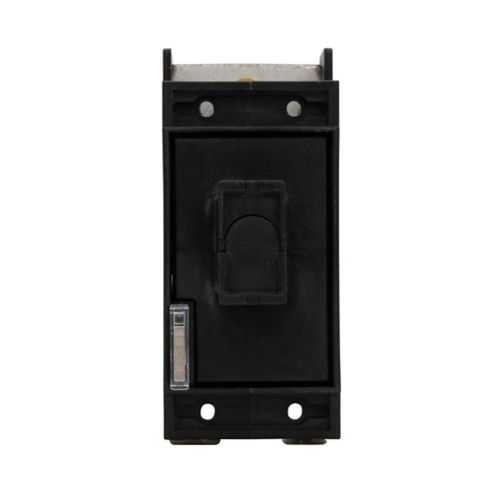

Eaton TP158HC-D fuse disconnect switch - 100 kA SCCR
Part Number: TP158HC-D
Quick Summary
The TP158HC-D fuse disconnect switch from Eaton provides reliable DC protection for panel-mounted power circuits. Engineers often struggle with safe isolation in high-current DC systems while keeping installation simple and compliant. Key attributes include RoHS compliance and a 100 kA SCCR, complemented by a panel-friendly thermoplastic enclosure and an 80 Vdc rating. By pairing robust protection with straightforward mounting, this device helps reduce downtime, streamline maintenance, and support regulatory conformity in demanding industrial environments. Whether you’re redesigning a drive cabinet or integrating a new battery system, the TP158HC-D delivers consistent performance across temperature extremes and vibration.
Product Information
Extended Description
TP158HC-D Eaton: Eaton Bussmann series TP15 fuse disconnect switch, 80 Vdc, 70-250A, Fusible, 1/4 In-20 TPI Bolt Line Terminal, SCCR: 100 kA, Panel, Thermoplastic - TP158HC-D
Product Name
Eaton Bussmann series TP15 fuse disconnect switch
Catalog Number
TP158HC-D
UPC
051712605298
Product Length/Depth
1.73 in
Product Height
3.8 in
Product Width
2.66 in
Product Weight
0.9 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
70-250A
Short-circuit rating
100 kA
Voltage rating
80 Vdc
Material
Thermoplastic
Operating temperature - max
150 °C
Operating temperature - min
150 °C
Connection
1/4 inch - 20 TPI bolt line terminal
Mounting method
Panel
Used with
Used with Type TPL-B fuse
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - TP158HC-D
Feature: Wide amperage range of 70-250 A enables a single device to cover multiple DC protection needs. Business impact: reduces spare parts inventory and simplifies procurement. Application: suitable for DC power distribution panels in industrial drives and battery systems. In practice, this means faster installation and lower total cost of ownership for OEMs and end users. Feature: 80 Vdc voltage rating ensures compatibility with common low-voltage DC controls and bus applications. Business impact: minimizes overdesign while maintaining protection margins. Application: ideal for panel-mounted DC protection in machinery and control cabinets. Feature: 1/4 inch-20 TPI bolt line terminal provides secure, vibration-resistant connections. Business impact: reduces maintenance intervals and improves reliability in harsh environments. Application: used with Type TPL-B fuses in demanding panel assemblies. Feature: Short-circuit rating of 100 kA SCCR offers high fault withstand capability. Business impact: enhances system safety and protects upstream equipment during faults. Application: critical in high-current DC feeders and drive systems. Feature: Thermoplastic enclosure with panel mounting supports lightweight, durable construction. Business impact: easier handling and faster field deployment while maintaining compliance. Application: ideal for OEM enclosures and retrofit panels. Feature: RoHS compliant construction aligns with modern regulatory expectations. Business impact: simplifies compliance documentation and supplier qualification. Application: suitable for global manufacturing environments and regulated installations.
