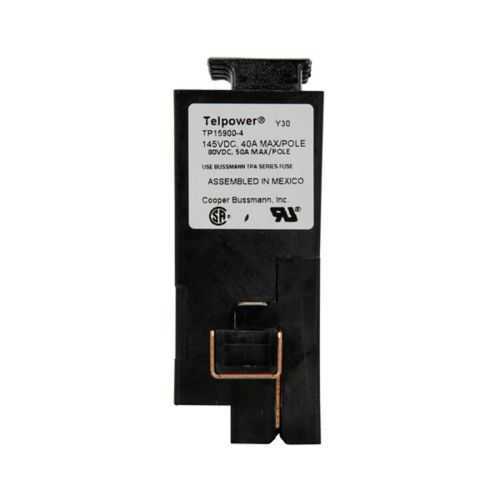

Eaton TP15900-4 FuseDisconnect - CE RoHS Compliant
Part Number: TP15900-4
Quick Summary
The Eaton TP15900-4 fuse disconnect switch provides reliable circuit protection for modular DC power systems in industrial automation. Engineers often struggle with compact, modular protection that fits tight control panels while delivering safe isolation and fast maintenance. This device carries CE Marking and RoHS compliance, reflecting adherence to essential safety and environmental standards. Its four-pole, rear-access design, and compatibility with TPA Series fuses support scalable layouts, while a rugged 145 Vdc/80 Vdc rating helps future-proof installations. By combining a small footprint with proven Bussmann protection, it reduces panel clutter and simplifies sourcing for automation projects today. This makes it a practical choice for mission-critical applications.
Product Information
Extended Description
TP15900-4 Eaton: Eaton Bussmann series 1500 fuse disconnect switch, Modular design, 145 Vdc, 80 Vdc, 40A at 145 Vdc, 50 A at 80 Vdc, Fusible, rear access, Four-pole
Product Name
Eaton Bussmann series 1500 fuse disconnect switch
Catalog Number
TP15900-4
UPC
051712500647
Product Length/Depth
1 in
Product Height
0.5 in
Product Width
2 in
Product Weight
0.034 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
40A at 145 Vdc, 50A at 80 Vdc
Voltage rating
145 Vdc, 80 Vdc
Number of Poles
Four-pole
Operating temperature - max
140 °C
Operating temperature - min
140 °C
Special features
Modular design
Used with
Used with TPA Series fuse
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - TP15900-4
Bussmann series Telepower TP15900 fused disconnect switch no. 5001
Datasheet - FNQ-30
Feature modular design enables flexible protection blocks that can be reconfigured as your system evolves. Business impact reduces spare parts, speeds up revisions, and lowers lifecycle costs. Application ideal for scalable DC power networks in control cabinets where future fuse changes are anticipated. Feature four-pole construction supports simultaneous isolation of four circuits with a single device. Business impact simplifies wiring, improves fault isolation, and enhances safety by allowing coordinated disconnection. Application for multi-branch DC panels and battery management interfaces in automated plants. Feature high current and voltage ratings—40A at 145 Vdc and 50A at 80 Vdc—allowing diverse DC distributions without oversizing. Business impact reduces capital and stock requirements. Application fits DC power distribution units in robotics and process automation. Feature rear-access, fusible design enables easy wiring and quick maintenance without panel removal. Business impact reduces service time and downtime. Application for maintenance-friendly control panels and retrofit projects. Feature compatibility with TPA Series fuses ensures supply chain continuity and straightforward sourcing. Business impact lowers procurement risk and simplifies inventory. Application across Eaton’s DC protection portfolio. Feature a compact footprint—1 in depth, 2 in width, 0.5 in height, weight 0.034 lb—saving panel real estate. Business impact enables higher packing density. Application in small-form-factor DC protection for compact automation enclosures. Compliance with CE Marking and RoHS further strengthens reliability in regulated environments.
Get a Quick Quote for a Eaton TP15900-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP15900-4?
Enquire Now
FAQs
TP15900-4 is designed for modular DC protection and is intended for use with TPA Series fuses. It features a four-pole, rear-access configuration with a 1 inch depth, 2 inches width, and 0.5 inch height, weighing 0.034 lb. It fits standard control panels, supports 145 Vdc and 80 Vdc circuits, and enables quick substitution during upgrades with minimal wiring changes.
The device provides 40A at 145 Vdc and 50A at 80 Vdc, with voltage ratings of 145 Vdc and 80 Vdc. It is a four-pole, fusible disconnect switch designed for DC protection. The compact form factor supports rear-access wiring, and it is compatible with Bussmann TPA fuses to enable reliable, replaceable protection in compact panels.
Yes. TP15900-4 is specifically rated for 145 Vdc operation with 40A (and 50A at 80 Vdc), making it suitable for DC distribution in automation, control cabinets, and battery interfaces. Designers should ensure the fuse type and panel ratings align with the device’s 145 Vdc/max current capability and follow proper safety procedures during installation.
TP15900-4 carries CE Marking and RoHS compliance, indicating conformance with essential safety directives and environmental standards. This supports regulatory compliance in many markets and helps ensure that installations meet industry expectations for electrical protection devices used in automated systems.
Rear-access wiring simplifies installation and maintenance by allowing connections from the back of the panel, reducing side clearance and enabling neater layouts. This lowers installation time, minimizes panel disruption during service, and shortens downtime, contributing to a lower total cost of ownership and faster return on investment in automated environments.
