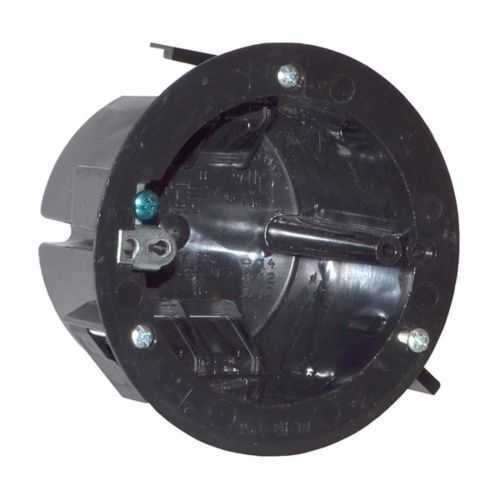

Eaton TP16201 Ceiling Box - NEC/CEC Certified
Part Number: TP16201
Quick Summary
The Eaton TP16201 Ceiling Box provides a durable PVC ceiling enclosure for electrical wiring in non-hazardous locations. It addresses common space constraints and wiring challenges by delivering 15 cubic inches of capacity with NM clamps and a ground plate for reliable grounding in a compact 3-1/2 inch box. It meets NEC/CEC standards and offers Canadian certification options for cross-border projects, helping to reduce regulatory risk. By combining a lightweight yet rugged PVC body with a snap-in bracket, installers save time and inventory while maintaining performance. This solution supports efficient maintenance, predictable replacement cycles, and scalable wiring in commercial and light-industrial facilities.
Product Information
Extended Description
TP16201 Eaton: Eaton Crouse-Hinds series Ceiling Box, 3-1/2", Snap, NM clamps, 2-7/8", PVC, 4, Ground plate, 15.0 cubic inch capacity
Product Name
Eaton Crouse-Hinds series ceiling box
Catalog Number
TP16201
UPC
786189162011
Product Length/Depth
3.5 in
Product Height
2.88 in
Product Width
3.5 in
Product Weight
0.29 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Material
PVC
Box size
3-1/2"
Depth
2-7/8"
Bracket/bar hanger
Snap
Capacity
15 cubic in
Number of cable pryouts
4
Conduit/cable
NM clamps
Special features
Ground plate
Crouse-Hinds series PVC Ceiling and Ceiling Fan Boxes catalog page
PVC Ceiling and Ceiling Fan Boxes Canadian certification
PVC Ceiling and Ceiling Fan Boxes Canadian certification
Eaton Specification Sheet - TP16201
Feature: PVC nonmetallic construction provides inherent insulation and corrosion resistance, reducing risk of electrical faults. Business Impact: Improved safety and lower repaint/maintenance costs over time. Application: Ideal for ceiling boxes in corporate offices and light industrial spaces. Feature: 15 cubic inches of capacity with 4 cable pryouts supports multi-conductor runs while keeping wiring organized. Business Impact: Faster pull patterns and fewer field improvisations, cutting labor costs. Application: Overhead wiring in compact ceiling spaces with NM cable. Feature: NM clamps and a 2-7/8 inch depth combined with a 3-1/2 inch box size optimize space usage. Business Impact: Seamless conduit/wiring management and easier retrofits. Application: Tight ceiling cavities in retrofit projects. Feature: Ground plate provides a reliable grounding path, improving system safety. Business Impact: Compliance with grounding requirements reduces rework and warranty risk. Application: All non-hazardous locations requiring solid grounding. Feature: Snap bracket enables quick mounting and reduces installation time. Business Impact: Shorter installation windows and reduced on-site labor. Application: New construction and renovation projects where speed matters. Feature: NEC/CEC compliant design plus available Canadian certification. Business Impact: Faster approvals and lower compliance overhead for multinational installations. Application: Facilities undergoing cross-border deployments and regulated environments.
Get a Quick Quote for a Eaton TP16201
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP16201?
Enquire Now
FAQs
TP16201 is designed for overhead ceiling wiring in ordinary/non-hazardous locations. Its 3-1/2 inch box size, 2-7/8 inch depth, and 15 cubic inch capacity accommodate multiple conductors when paired with NM clamps. The snap-in bracket simplifies mounting, and the PVC construction minimizes weight while maintaining electrical insulation. It fits standard nonmetallic wiring schemes and supports straightforward retrofits in commercial and light-industrial facilities.
Key specifications include a 3-1/2 inch box size, 2-7/8 inch depth, 15 cubic inches of capacity, 4 cable pryouts, NM clamps for conduit/wiring, ground plate for grounding continuity, and PVC material. These features enable compliant wiring in non-hazardous locations while keeping installation compact and manageable in tight ceiling spaces.
Yes. TP16201 is NEC/CEC compliant, aligning with standard electrical installation practices for non-hazardous locations. It also offers Canadian certification support to facilitate cross-border projects. This combination reduces regulatory risk and supports timely approvals in multi-country deployments.
NM clamps provide secure NM cable management directly within the box, reducing movement and potential insulation damage. The ground plate ensures a solid grounding path, improving safety and reliability of the electrical system. Together, they streamline installation, minimize field improvisation, and support durable, code-compliant wiring in ceiling boxes.
TP16201 offers low weight PVC construction for easy handling and faster field service. The 15 cu in capacity, four pryouts, NM clamps, and ground plate reduce the need for additional components, speeding installations and reducing labor costs. Its durable, noncorrosive material lowers maintenance needs, while NEC/CEC compliance and Canadian certification support ensure long-term regulatory alignment.
