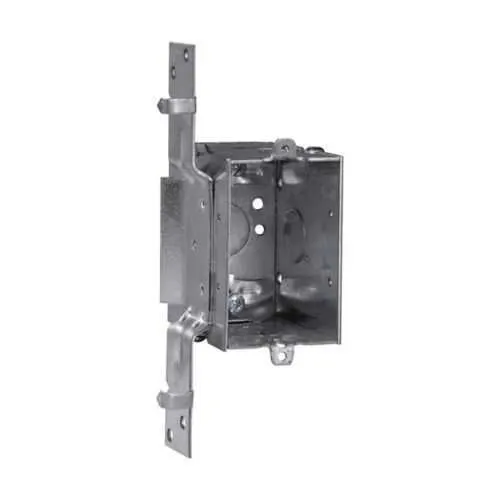

Eaton TP171 switch box - 12.5 cu in, Steel, NEC/CEC
Part Number: TP171
Quick Summary
The Eaton TP171 switch box provides a rugged steel enclosure for wiring in control panels and junction boxes. Engineers often wrestle with limited space, awkward knockouts, and challenging cable management in harsh industrial environments. It carries NEC/CEC compliance and UL certification for steel switch boxes, ensuring safety and reliability in ordinary locations. Designed for compatibility with the Eaton Crouse-Hinds steel line, TP171 integrates smoothly into existing protection and circuit control strategies. By consolidating components into a compact enclosure, it minimizes wiring errors and panel downtime while supporting fast installation and durable operation. This makes it a practical choice for automation panels in manufacturing, water treatment, and process control environments.
Product Information
Extended Description
TP171 Eaton: Eaton Crouse-Hinds series Switch Box, (1) 1/2", VP, set 1/2", 2, NM clamps, 2-1/2", (1) 1/2", Steel, (1) 1/2", Gangable, 12.5 cubic inch capacity
Product Name
Eaton Crouse-Hinds series switch box
Catalog Number
TP171
UPC
786189101713
Product Length/Depth
2 in
Product Height
3 in
Product Width
2.5 in
Product Weight
0.73 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Depth
2-1/2"
Type
Gangable
Capacity
12.5 cubic in
Conduit/cable
NM clamps
Bracket style
VP, Set 1/2"
End Knockouts
(1) 1/2 in
Side knockouts
(1) 1/2 in
Bottom Knockouts
(1) 1/2 in
Cable knockouts
2
Material
Steel
Crouse-Hinds series Steel Switch Boxes catalog page
Steel Switch Boxes UL certification
Steel Switch Boxes UL certification
Steel Outlet Boxes for Electrical Systems
Steel Outlet Boxes for Electrical Systems
12.5 cubic inch capacity and compact 2 in depth enable enclosure of common control components while preserving cabinet real estate. This helps reduce panel size and wiring clutter, improving heat management and servicing. The NM clamps and 1/2" knockouts across ends, sides, and bottom provide flexible routing, reducing rework when wiring diagrams evolve and enabling cleaner, more reliable terminations. Steel construction delivers rugged durability, protecting sensitive components from impact and vibration typical in industrial environments, which translates to lower maintenance costs and longer service life. The gangable design and VP bracket (Set 1/2") support scalable installations and rapid panel expansion, enabling modular protection zones without rework. NEC/CEC compliance and UL certification further reduce project risk by validating safety and performance for ordinary locations.
Get a Quick Quote for a Eaton TP171
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP171?
Enquire Now
FAQs
TP171 supports NM clamps and has knockouts at the ends, sides, and bottom, including two cable knockouts. To install, route NM cable through the appropriate knockout, secure with the NM clamps, and terminate conductors inside the 12.5 cu in capacity of the steel enclosure. Use the VP bracket for mounting and ensure the enclosure is aligned with the panel cutout. This approach reduces wiring errors and speeds panel assembly.
TP171 is a steel, gangable switch box with a 12.5 cubic inch capacity. It measures 2 inches deep, 2.5 inches wide, and 3 inches high. It features NM clamps, (1) 1/2 inch end knockout, (1) 1/2 inch side knockout, (1) 1/2 inch bottom knockout, and (2) cable knockouts. The unit is compatible with VP bracket mounting and is designed for ordinary locations.
Yes. TP171 is designed for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards. It is constructed from steel to provide durable protection in typical industrial environments and is UL certified for steel switch boxes, helping to meet regulatory requirements and reduce compliance risk on projects.
Absolutely. TP171 is a gangable unit with a VP bracket setup, enabling seamless expansion alongside other Crouse-Hinds steel switch boxes. Its modular design supports scalable protection and wiring layouts in control panels, reducing the need for custom fabrication and speeding up installation in evolving automation environments.
TP171 carries NEC/CEC compliance and UL certification for steel switch boxes, which helps minimize regulatory risk over the life of the installation. Its steel construction resists impact and wear, lowering maintenance needs. For ongoing support, Eaton provides catalogs and datasheets that detail installation guidance, compatible accessories, and installation best practices to maximize ROI in automation projects.
