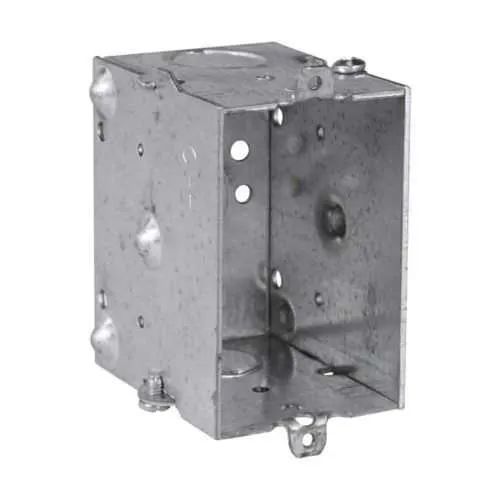

Eaton TP214 Switch Box - NEC/CEC, 12.5 cu in, Steel
Part Number: TP214
Quick Summary
TP214 is a rugged Eaton Crouse-Hinds steel switch box for control circuits in non-hazardous industrial spaces. Engineers often wrestle with mounting alignment and conduit entry constraints in compact panel layouts; this box addresses those challenges with 1/2" knockouts, leveling bumps, and a gangable design that speeds installation. It carries NEC/CEC compliance and UL Canadian certification, providing cross‑border reliability and consistent electrical protection. Designed for steady performance in ordinary locations, the TP214 delivers durable, small-footprint framing for steel switch boxes and easy integration into standard control panels, delivering value through faster builds and predictableCompliance.
Product Information
Extended Description
TP214 Eaton: Eaton Crouse-Hinds series Switch Box, (1) 1/2", Conduit (no clamps), 2-1/2", (1) 1/2", Steel, Leveling bumps, Gangable, 12.5 cubic inch capacity
Product Name
Eaton Crouse-Hinds series switch box
Catalog Number
TP214
UPC
786189102147
Product Length/Depth
2 in
Product Height
3 in
Product Width
2.5 in
Product Weight
0.55 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Depth
2-1/2"
Type
Gangable
Capacity
12.5 cubic in
Conduit/cable
Conduit (no clamps)
End Knockouts
(1) 1/2 in
Bottom Knockouts
(1) 1/2 in
Material
Steel
Special features
Leveling bumps
Crouse-Hinds series Steel Switch Boxes catalog page
Steel Switch Boxes Canadian certification
Steel Switch Boxes Canadian certification
Steel Outlet Boxes for Electrical Systems
Steel Outlet Boxes for Electrical Systems
Feature: Steel construction from the Eaton Crouse-Hinds series provides a robust, durable enclosure that resists impact and corrosion. Business impact: Longer service life and reduced maintenance costs in everyday panel environments. Application: Ideal for electrical protection & circuit control in manufacturing lines and facility enclosures. Feature: Precise, compact dimensions—2 in depth, 3 in height, 2.5 in width—with a 12.5 cubic inch capacity. Business impact: Sufficient wiring space without overbuilding, enabling reliable terminations and neat layouts. Application: Small to mid-size wiring runs in control panels and distribution boxes. Feature: Conduit routing options with Conduit (no clamps) and end/bottom knockouts (1/2 in). Business impact: Flexible installation and faster routing of conductors, reducing rework. Application: Standard 1/2 in conduit systems in non-hazardous locations. Feature: Gangable design and leveling bumps. Business impact: Simplifies multi-box installations, aligns adjacent enclosures, and reduces mounting time. Application: Large panel banks and equipment rooms with modular layouts. Feature: Certifications and compliance—NEC/CEC, Ordinary/Non-Hazardous Locations, UL Canadian certification. Business impact: Ensures regulatory compliance and seamless cross-border deployment. Application: North American manufacturing facilities and service installations.
Get a Quick Quote for a Eaton TP214
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP214?
Enquire Now
FAQs
TP214 provides (1) end knockout and (1) bottom knockout at 1/2 in, plus conduit entries without clamps. This allows flexible routing with minimal hardware, reducing install time and field modifications. Pair with standard 1/2 in conduits in non-hazardous locations, and use leveling bumps to align boxes precisely in multi‑box runs.
The enclosure measures 2 in depth, 3 in height, and 2.5 in width, with a 12.5 cubic inch capacity and weight around 0.55 lb. These compact yet capacious dimensions support neat wiring terminations for small control circuits, enabling efficient panel layouts without overbuilding enclosures.
TP214 is rated for Ordinary/Non-Hazardous Locations, aligning with NEC/CEC requirements for standard electrical installations. It is not specified for hazardous environments. For hazardous-area applications, select an enclosure with appropriate NEMA/IP ratings and hazardous-location approvals.
TP214 carries NEC/CEC compliance and UL Canadian certification, ensuring regulatory acceptance across North America. This combination supports cross-border panel builds and meets common electrical safety expectations for steel switch boxes in non-hazardous settings.
TP214 offers a lightweight, steel enclosure with leveling bumps and gangable capability that speeds installation and alignment. Its 12.5 cu in capacity accommodates essential wiring while its 1/2 in knockouts and conduit routing options reduce field modifications, supporting faster throughput, lower labor costs, and consistent compliance across sites.
