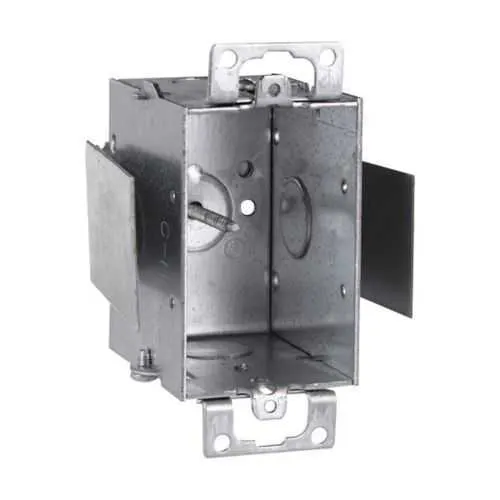

Eaton TP216 Switch Box - 12.5 cu in NEC/CEC cert
Part Number: TP216
Quick Summary
The Eaton TP216 switch box is a rugged, snap-in steel enclosure designed for conduit wiring in control panels across industrial environments. Engineers often struggle with space constraints, misfit fittings, and slow panel builds when boxes lack flexible mounting options. This model carries NEC/CEC compliance and UL listings for steel switch boxes, including US and Canada registrations. With 12.5 cubic inches of capacity, a 2-1/2 in depth, and gangable, snap-in construction, the TP216 delivers reliable protection while streamlining installs in process and control cabinets. By combining compliance, space efficiency, and field-installation convenience, it supports faster projects and lower lifecycle costs for manufacturers.
Product Information
Extended Description
TP216 Eaton: Eaton Crouse-Hinds series Switch Box, Snap-in, Conduit (no clamps), 2-1/2", (1) 1/2", Steel, (1) 1/2", Ears, Gangable, 12.5 cubic inch capacity
Product Name
Eaton Crouse-Hinds series switch box
Catalog Number
TP216
UPC
786189102161
Product Length/Depth
2 in
Product Height
3 in
Product Width
2.5 in
Product Weight
0.69 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Depth
2-1/2"
Type
Gangable
Capacity
12.5 cubic in
Conduit/cable
Conduit (no clamps)
Bracket style
Snap-in
End Knockouts
(1) 1/2 in
Side knockouts
(1) 1/2 in
Material
Steel
Special features
Ears
Crouse-Hinds series Steel Switch Boxes catalog page
Steel Switch Boxes UL certification
Steel Switch Boxes UL certification
Steel Outlet Boxes for Electrical Systems
Steel Outlet Boxes for Electrical Systems
Feature → Business Impact → Application: The TP216 uses a snap-in, gangable steel switch box construction, delivering faster installation and higher panel density, reducing wiring time and labor costs in control panels. This translates to measurable efficiency gains in electrical protection and circuit control deployments in industrial environments. Feature → Application: Conduit (no clamps) and knockouts (one end, one side at 1/2 in) enable flexible routing with minimal hardware, simplifying retrofits and new builds for process lines and machine panels. Feature → Application: Weighing only 0.69 lb with compact 2 in length and 2.5 in width, it enhances handling and reduces shipping and on-site fatigue in tight spaces. Feature → Compliance: NEC/CEC standards plus UL listings for US and Canada mitigate risk and streamline procurement across multinational sites. Feature → Compatibility: Gangable, snap-in design works seamlessly with other Crouse-Hinds steel boxes for multi-gang configurations in control rooms and switchgear assemblies.
Get a Quick Quote for a Eaton TP216
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP216?
Enquire Now
FAQs
TP216 is designed for ordinary/non-hazardous locations in electrical control panels. It supports conduit wiring (no clamps), (1) end knockout and (1) side knockout at 1/2 in, and provides 12.5 cubic inches of internal capacity for compact wiring solutions in industrial applications.
Conduit connects through the provided knockouts with a 1/2 in size on both ends. The box uses a snap-in, gangable design with no clamps required, which speeds field terminations and reduces the number of fittings needed for panel wiring.
Yes. TP216 follows NEC/CEC standards and carries UL listings for steel switch boxes, with US and Canada compatibility, making it suitable for multinational facilities and ensuring regulatory compliance.
TP216 measures 2 in length, 2.5 in width, and 3 in height, with a weight of approximately 0.69 lb, enabling easy handling and installation in space-constrained panels.
Yes. The box is gangable and designed for snap-in mounting, allowing seamless integration with other Crouse-Hinds steel switch boxes to create multi-gang configurations in control rooms and equipment enclosures.
