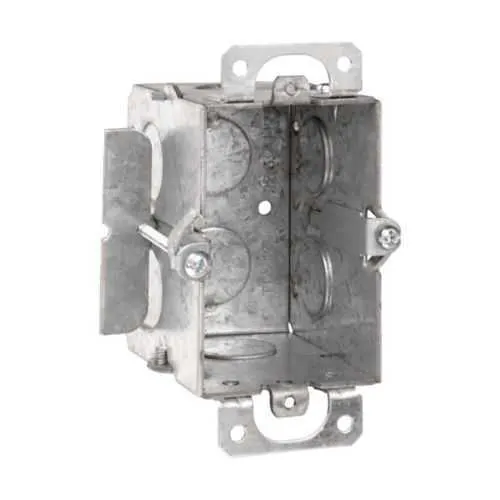

Eaton TP217 Switch Box - NEC/CEC, Gangable Steel
Part Number: TP217
Quick Summary
The Eaton TP217 switch box is a reliable steel enclosure designed to protect electrical connections in control panels and industrial cabinets. This Eaton Crouse-Hinds series product addresses common installation challenges such as space constraints, limited knockouts, and the need for compliant enclosures in non-hazardous locations. Built to NEC/CEC standards with Ordinary/Non-Hazardous Location suitability, UL-certified for both US and Canada, and gangable with other boxes, it provides a scalable solution for evolving control panel layouts. The rugged steel construction offers durability in harsh environments, while the 12.5 cubic inch capacity accommodates standard conduit wiring. This product supports efficient procurement and predictable maintenance through standardized specs and easy mounting.
Product Information
Extended Description
TP217 Eaton: Eaton Crouse-Hinds series Switch Box, (1) 1/2", Conduit (no clamps), 2-1/2", (1) 1/2", Steel, Ears, Gangable, 12.5 cubic inch capacity
Product Name
Eaton Crouse-Hinds series switch box
Catalog Number
TP217
UPC
786189102178
Product Length/Depth
2 in
Product Height
3 in
Product Width
2.5 in
Product Weight
0.64 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Depth
2-1/2"
Type
Gangable
Capacity
12.5 cubic in
Conduit/cable
Conduit (no clamps)
End Knockouts
(1) 1/2 in
Bottom Knockouts
(1) 1/2 in
Material
Steel
Special features
Ears
Crouse-Hinds series Steel Switch Boxes catalog page
Steel Switch Boxes UL certification
Steel Switch Boxes UL certification
Steel Outlet Boxes for Electrical Systems
Steel Outlet Boxes for Electrical Systems
Feature: Steel switch box construction provides robust protection in industrial environments. Business Impact: Reduces field damage and maintenance costs while improving reliability of terminations. Application: Ideal for control panels and junctions in ordinary locations where durability and straightforward wiring are required. Feature: Conduit entry configured as Conduit (no clamps) with one end knockout and one bottom knockout. Business Impact: Simplifies wiring setups and minimizes accessory purchases, cutting install time and error potential. Application: Fits standard 1/2 inch conduit fittings in tight spaces. Feature: 12.5 cubic inch internal capacity with dimensions of 2 in (length) x 3 in (height) x 2.5 in (width). Business Impact: Accommodates typical field wiring without overcrowding, reducing panel size and cost. Application: Suitable for compact control enclosures and space-limited installations. Feature: Gangable design and ears for mounting ease. Business Impact: Enables scalable multi-box configurations, saving cabinet space and simplifying expansion. Application: Quick, modular upgrades in growing control systems. Feature: Material and compliance features: steel construction, NEC/CEC standards, Ordinary/Non-Hazardous Location rating. Business Impact: Ensures regulatory compliance and safer operation, minimizing risk and rework. Application: Suitable for standard industrial environments with regulatory requirements.
Get a Quick Quote for a Eaton TP217
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP217?
Enquire Now
FAQs
The TP217 provides one 1/2-inch end knockout and one 1/2-inch bottom knockout, with conduit entry designed for conduit without clamps. This simplifies field wiring and alignment with standard 1/2-inch fittings, making it ideal for compact control panels and straightforward installations.
Yes. The TP217 is designed for Ordinary/Non-Hazardous Locations and adheres to NEC/CEC standards. It is UL-listed for both US and Canada, ensuring regulatory compliance and safer operation in typical industrial environments.
Absolutely. The TP217 is gangable, allowing multiple enclosures to be mounted side-by-side to fit larger control panels. This modular approach reduces custom fabrication and supports scalable, cost-effective panel expansion.
The TP217 measures 2 inches in depth, 3 inches in height, and 2.5 inches in width, with a total internal capacity of 12.5 cubic inches. These specifications enable efficient wiring space planning and compact enclosure design for small to mid-size control circuits.
Official documentation and certifications are available through Eaton’s Crouse-Hinds resources, including the steel switch boxes catalog page, UL certification pages for the US and Canada, and the Steel Outlet Boxes spec guides. These sources provide installation guides, compatibility notes, and certification details.
