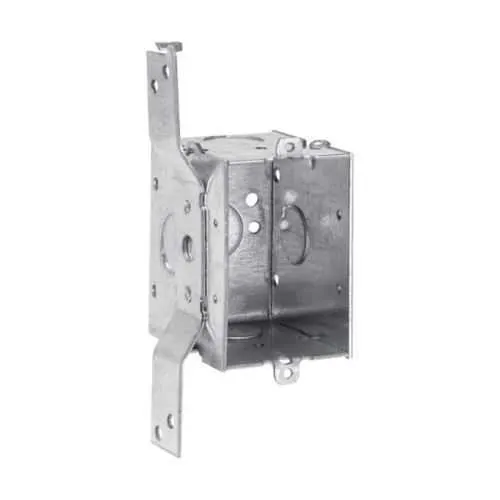

Eaton TP222 Switch Box - 12.5 in³ Capacity
Part Number: TP222
Quick Summary
The Eaton TP222 switch box provides a durable enclosure for electrical terminations in control panels and machine installations. In busy facilities, installers often struggle with mismatched enclosures, awkward knockout patterns, and limited mounting options. This Crouse-Hinds steel box meets NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations, with Canadian certifications documented for steel outlet boxes. Coupled with its compact 2 in depth, 2.5 in width, and 3 in height footprint and 12.5 in³ capacity, it enables faster installations, reliable protection, and seamless integration with standard conduit and gangable configurations.
Product Information
Extended Description
TP222 Eaton: Eaton Crouse-Hinds series Switch Box, (1) 1/2", S, set 5/8", Conduit (no clamps), 2-1/2", (1) 1/2", Steel, (1) 1/2", 1 side, Gangable, 12.5 cubic inch capacity
Product Name
Eaton Crouse-Hinds series switch box
Catalog Number
TP222
UPC
786189102222
Product Length/Depth
2 in
Product Height
3 in
Product Width
2.5 in
Product Weight
0.65 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Depth
2-1/2"
Type
Gangable
Capacity
12.5 cubic in
Conduit/cable
Conduit (no clamps)
Bracket style
S, Set 5/8"
End Knockouts
(1) 1/2 in
Side knockouts
(1) 1/2 in, 1 side
Bottom Knockouts
(1) 1/2 in
Material
Steel
Crouse-Hinds series Steel Switch Boxes catalog page
Steel Switch Boxes Canadian certification
Steel Switch Boxes Canadian certification
Steel Outlet Boxes for Electrical Systems
Steel Outlet Boxes for Electrical Systems
Feature: Steel construction delivers robust enclosure protection in demanding industrial environments. Business Impact: Reduces damage to internal wiring and components, lowering maintenance costs and downtime. Application: Ideal for machine control panels and process equipment where rugged steel housings are preferred. Feature: 12.5 cubic inch capacity with (1) 1/2 in end knockout, (1) 1/2 in side knockout, and (1) 1/2 in bottom knockout. Business Impact: Accommodates typical wiring and small device terminations without overfilling, improving terminations quality. Application: Supports compact control circuits in limited space installations. Feature: Conduit (no clamps) and S bracket style (Set 5/8 in). Business Impact: Simplifies mounting and reduces parts cost; speeds up field wiring. Application: Configurable in gangable layouts for multi-box enclosures. Feature: Dimensions and weight (2 in depth, 2.5 in width, 3 in height, 0.65 lb). Business Impact: Predictable fit within panels and enclosures; easy handling and transport. Application: Trades with standard DIN rail and panel layouts. Feature: Area classification Ordinary/Non-Hazardous Locations; NEC/CEC compliance; Canadian certifications. Business Impact: Regulatory alignment minimizes compliance risk and inspection delays. Application: Suitable for general purpose electrical distribution in non-hazardous areas.
Get a Quick Quote for a Eaton TP222
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP222?
Enquire Now
FAQs
TP222 supports standard 1/2 in conduit knockouts and includes knockouts at the end, side, and bottom (each 1/2 in). The conduit pattern is specified as Conduit (no clamps), and the S bracket style (Set 5/8 in) simplifies mounting. This makes field wiring straightforward without additional adapter parts, reducing installation complexity and time.
The TP222 enclosure measures 2 inches in depth, 2.5 inches in width, and 3 inches in height, with a listed weight of 0.65 pounds. These compact dimensions fit narrow control panels and crowded electrical closets while still providing 12.5 cubic inches of internal space for terminations.
No, TP222 is certified for Ordinary/Non-Hazardous Locations. It aligns with NEC/CEC standards and residential/industrial non-hazardous applications. For hazardous or classified areas, Eaton offers alternative enclosures with appropriate explosion-proof or safety certifications.
TP222 carries NEC/CEC standards compliance and Ordinary/Non-Hazardous Location classification, along with Canadian certifications for steel switch boxes. These certifications help satisfy regulatory requirements in North American installations, reducing inspection risk and enabling easier device integration into standard electrical cabinets.
The TP222’s compact size, gangable design, and ready-made knockouts shorten panel fabrication and field wiring time, lowering labor costs. Steel construction enhances durability, reducing replacement cycles, while NEC/CEC compliance minimizes rework due to certification gaps. Overall, it supports faster builds with reliable long-term performance.
