Eaton TP224 Switch Box - 12.5 cu in, Steel, NEC/CEC
Part Number: TP224
Quick Summary
TP224 is a steel switch box that protects wiring in industrial control panels and conduit installations. This enclosure addresses the common challenge of maintaining wiring integrity and compliance in tight spaces and demanding environments. It aligns with NEC/CEC standards and is suitable for Ordinary/Non-Hazardous Locations, with Canadian certification options available for cross-border projects. Designed for reliable, long-term operation, TP224 combines compact dimensions with solid rust-resistant steel construction. The Hold-Tite bracket and gangable capability add installation flexibility, while the 12.5 cubic inch capacity supports modest control circuits and local terminations. This makes it a practical, cost-conscious choice for engineers and procurement teams seeking durable, code-compliant enclosures.
Product Information
Extended Description

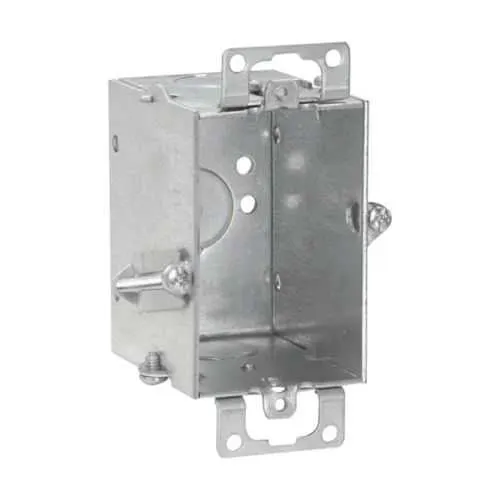

TP224 Eaton: Eaton Crouse-Hinds series Switch Box, (1) 1/2", Hold-Tite, Conduit (no clamps), 2-1/2", (1) 1/2", Steel, Ears, Gangable, 12.5 cubic inch capacity
Product Name
Eaton Crouse-Hinds series switch box
Catalog Number
TP224
UPC
786189102246
Product Length/Depth
2 in
Product Height
3 in
Product Width
2.5 in
Product Weight
0.61 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Depth
2-1/2"
Type
Gangable
Capacity
12.5 cubic in
Conduit/cable
Conduit (no clamps)
Bracket style
Hold-Tite
End Knockouts
(1) 1/2 in
Bottom Knockouts
(1) 1/2 in
Material
Steel
Special features
Ears
Crouse-Hinds series Steel Switch Boxes catalog page
Steel Switch Boxes Canadian certification
Steel Switch Boxes Canadian certification
Eaton Specification Sheet - TP224
Eaton Specification Sheet - TP224
Feature: Steel construction delivers robust protection against physical damage and environmental exposure. Business impact: Reduces maintenance costs and extends service life in industrial settings. Application: Ideal for control panels and conduit systems in manufacturing environments. Feature: 12.5 cubic inch capacity enables secure terminations without crowding wires. Business impact: Improves reliability and simplifies wiring layouts, lowering wiring errors. Application: Suitable for small to mid-size control circuits in machine automation. Feature: Conduit (no clamps) with (1) 1/2 in end knockouts and (1) 1/2 in bottom knockout. Business impact: Streamlines installation with standard conduit runs and quick wiring access. Application: Common in panel enclosures for ease of retrofit. Feature: Hold-Tite bracket style and ears support gangable installations. Business impact: Reduces space and labor costs when mounting multiple boxes. Application: Used in multi-box configurations for compact control panels. Feature: Area classification Ordinary/Non-Hazardous Locations and NEC/CEC standards. Business impact: Ensures regulatory compliance and safer operation across North American sites. Application: Widely suitable for non-hazardous industrial environments. Feature: Material is steel with a weight of 0.61 lb, 2 in length, 3 in height, 2.5 in width. Business impact: Lightweight yet sturdy enclosure enabling easier handling and installation. Application: Field deployments where weight reduction is beneficial yet protection is required.
Get a Quick Quote for a Eaton TP224
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP224?
Enquire Now
FAQs
TP224 supports conduit without clamps and provides knockouts for End and Bottom entries, each of 1/2 inch. The 2-1/2 inch depth and 12.5 cubic inch capacity accommodate practical wiring terminations. This configuration simplifies field wiring, reduces accessory requirements, and supports straightforward retrofits in existing panels.
Yes. TP224 is designed for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards, ensuring safe performance in typical industrial control environments. This makes it appropriate for non-hazardous electrical installations while meeting regulatory expectations for North American facilities.
The TP224 measures 2 inches in length, 3 inches in height, and 2.5 inches in width, with an approximate weight of 0.61 pounds. These compact dimensions support space-constrained installations while providing robust steel protection for local terminations and conduit entries.
TP224 is gangable, allowing multiple boxes to be installed together for compact control panels. The Hold-Tite bracket facilitates secure mounting and alignment, reducing install time and ensuring consistent spacing across enclosures. This is particularly advantageous in modular panel designs and space-limited electrical assemblies.
Official TP224 specifications and certifications are available through Eaton’s Crouse-Hinds documentation, including the steel switch boxes catalog page and NEC/CEC-related certification listings. Manufacturer datasheets and Canadian certifications can be accessed via Eaton’s site and UL/NRTL references listed in the product downloads.
