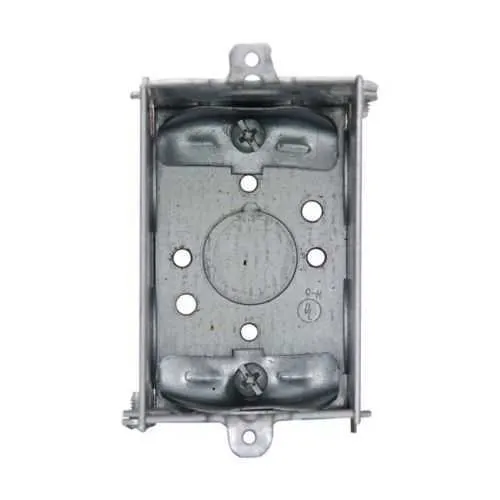

Eaton TP236 Switch Box - NEC/CEC, 18 cu in
Part Number: TP236
Quick Summary
The Eaton TP236 Switch Box is a rugged steel enclosure designed to protect splices and terminations in industrial control panels. Engineers often face tight spaces, complex conduit routing, and mounting multiple devices while maintaining code compliance. This model aligns with NEC/CEC standards and UL certification for steel switch boxes, clarifying safe use in ordinary locations. With gangable mounting and an 18 cubic inch capacity, it streamlines installation, reduces cabinet footprint, and lowers long-term maintenance costs while integrating NM clamps and knockouts. In practice, you gain reliable enclosure protection, faster wiring, and predictable performance across challenging industrial environments. This combination helps your projects stay on schedule and within budget without compromising safety.
Product Information
Extended Description
TP236 Eaton: Eaton Crouse-Hinds series Switch Box, (1) 1/2", 2, NM clamps, 3-1/2", Steel, Gangable, 18.0 cubic inch capacity
Product Name
Eaton Crouse-Hinds series switch box
Catalog Number
TP236
UPC
786189102369
Product Length/Depth
3 in
Product Height
3.5 in
Product Width
2 in
Product Weight
0.77 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Depth
3-1/2"
Type
Gangable
Capacity
18 cubic in
Conduit/cable
NM clamps
Bottom Knockouts
(1) 1/2 in
Cable knockouts
2
Material
Steel
Crouse-Hinds series Steel Switch Boxes catalog page
Steel Switch Boxes UL certification
Steel Switch Boxes UL certification
Eaton Specification Sheet - TP236
Eaton Specification Sheet - TP236
Feature: Steel construction with an 18 cubic inch capacity provides durable, code-compliant protection for splices and terminations in control panels. Business Impact: Reduces field rework and protects critical wiring from impact, moisture, and dust, lowering maintenance costs over the life of the system. Application: Ideal for electrical panels and motor control centers in manufacturing and processing facilities. Feature: Bottom knockout of 1/2 inch and two cable knockouts plus NM clamps enable flexible conduit management during panel assembly. Business Impact: Speeds up wiring, minimizes the need for adapters, and ensures secure, vibration-resistant terminations in harsh environments. Application: Junctions and enclosure housings where NM wiring is common. Feature: Gangable design allows seamless expansion by adjoining with additional boxes, optimizing footprint. Business Impact: Maximizes space utilization in limited control room or cabinet spaces, reducing overall cabinet depth and material costs. Application: Multi-gang switch box configurations in distributed control systems. Feature: Durable steel, ordinary/non-hazardous location rating, NEC/CEC compliance, and UL certification provide confidence in safety and regulatory adherence. Business Impact: Improves audit readiness, supplier reliability, and long-term asset value. Application: Industrial facilities with strict electrical safety standards. Feature: Manageable weight and precise dimensions (3 in depth, 3.5 in height, 2 in width) support straightforward handling and installation in constrained spaces. Business Impact: Reduces installation time and labor costs while enabling predictable fit in existing enclosures. Application: Field installation and retrofit projects where space is at a premium.
Get a Quick Quote for a Eaton TP236
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP236?
Enquire Now
FAQs
TP236 supports a gangable design that enables adjoining boxes to form multi-gang assemblies, maximizing space efficiency in control panels. For installation, align mounting tabs with adjacent units, ensure consistent knockouts for NM clamps, and maintain proper spacing for wiring clearance. This reduces cabinet depth and accelerates panel assembly in industrial environments.
TP236 carries UL certification for steel switch boxes and complies with NEC/CEC standards. It is rated for Ordinary/Non-Hazardous Locations, clarifying suitable deployment in standard electrical installations. This combination supports regulatory compliance, safer audits, and reliable performance in typical manufacturing or processing facilities.
TP236 provides 3 in depth, 3.5 in height, and 2 in width with an 18 cubic inch capacity. It accommodates one 1/2 inch bottom knockout and two cable knockouts and uses NM clamps for wiring. The steel construction supports robust protection for splices and terminations in compact control-panel spaces.
TP236 is ideal for electrical protection and circuit control in control panels, junction boxes, and motor control centers within ordinary locations. Its gangable design supports scalable enclosure arrays, while NEC/CEC compliance and UL certification ensure safe, code-conforming installation in manufacturing, food & beverage, and facility automation projects.
To maximize ROI, plan for gangable configurations to minimize cabinet count, use the NM clamps and knockouts as designed to streamline wiring, and verify compliance with NEC/CEC and UL listings during inspections. Keeping the enclosure within its 18 cu in capacity and weight of 0.77 lb reduces rework, speeds field wiring, and extends service life in harsh industrial settings.
