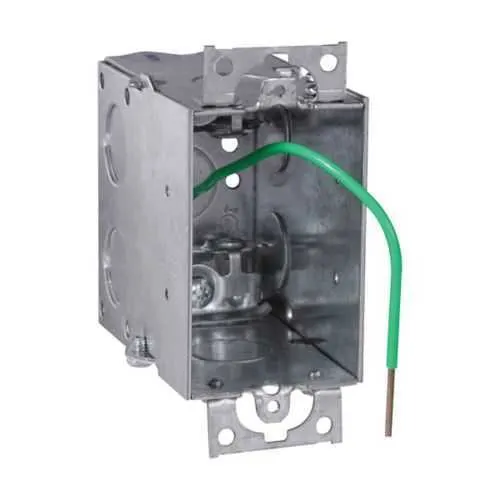

Eaton TP249 Switch Box - 18 cu in Capacity, Steel, NEC/CEC
Part Number: TP249
Quick Summary
Eaton TP249 switch box provides a durable enclosure for electrical connections in control panels and conduit runs. Engineers often face tight spaces and mounting challenges, and this gangable steel box simplifies layout with ears, pigtail provisions, and flexible knockouts. It carries UL certification for steel switch boxes and NEC/CEC standards, supporting ordinary/non-hazardous locations, with Canada UL certification for cross-border projects. The 18 cubic inch capacity accommodates compact wiring while maintaining serviceability, and the included AC/MC clamps streamline conductor termination. Together, these features translate to faster install times, improved reliability, and predictable compliance, delivering real business value for panel builders and maintenance teams.
Product Information
Extended Description
TP249 Eaton: Eaton Crouse-Hinds series Switch Box, (1) 1/2", 2, AC/MC clamps, 3-1/2", (1) 1/2" , Steel, (2) 1/2", Pigtail, ears, Gangable, 18.0 cubic inch capacity
Product Name
Eaton Crouse-Hinds series switch box
Catalog Number
TP249
UPC
786189102499
Product Length/Depth
2 in
Product Height
3 in
Product Width
3.5 in
Product Weight
0.82 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Depth
3-1/2"
Type
Gangable
Capacity
18 cubic in
Conduit/cable
AC/MC clamps
End Knockouts
(1) 1/2 in
Side knockouts
(2) 1/2 in
Bottom Knockouts
(1) 1/2 in
Cable knockouts
2
Material
Steel
Special features
Pigtail, ears
