Eaton TP250 Switch Box - NEC/CEC
Part Number: TP250
Quick Summary
Eaton TP250 Switch Box protects control-panel wiring in industrial applications. This rugged steel enclosure addresses the common challenge of wiring clutter and limited panel space by providing a durable, gangable solution. The product aligns with NEC/CEC standards and UL Canadian certification listings, supporting compliance for ordinary/non-hazardous locations. With a compact footprint and robust construction, it delivers reliable installation efficiency while reducing long-term maintenance costs. For engineers and procurement teams, the TP250 combines strong mechanical protection with straightforward wiring accessibility, making it a practical choice for standard electrical protection and circuit-control needs.
Product Information
Extended Description

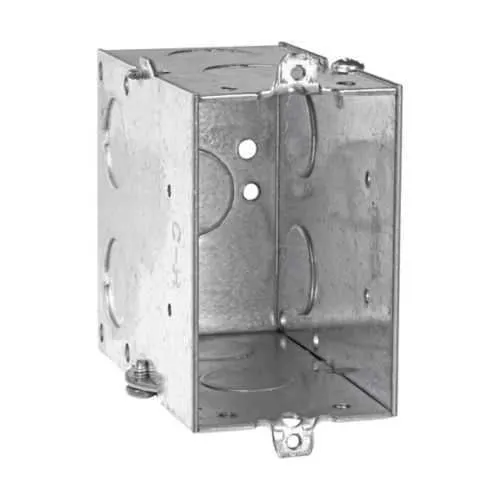

TP250 Eaton: Eaton Crouse-Hinds series Switch Box, (1) 1/2", Conduit (no clamps), 3-1/2", (2) 3/4", Steel, Gangable, 18.0 cubic inch capacity
Product Name
Eaton Crouse-Hinds series switch box
Catalog Number
TP250
UPC
786189102505
Product Length/Depth
3 in
Product Height
3.5 in
Product Width
2 in
Product Weight
0.73 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Depth
3-1/2"
Type
Gangable
Capacity
18 cubic in
Conduit/cable
Conduit (no clamps)
End Knockouts
(2) 3/4 in
Bottom Knockouts
(1) 1/2 in
Material
Steel
Crouse-Hinds series Steel Switch Boxes catalog page
Steel Switch Boxes Canadian certification
Steel Switch Boxes Canadian certification
Steel Outlet Boxes for Electrical Systems
Steel Outlet Boxes for Electrical Systems
Feature → Business Impact → Application: Steel construction and 18 cubic inch capacity deliver durable, scalable wiring space that supports expanding control systems and reduces enclosure replacements, lowering lifecycle costs. This enables maintenance teams to wire cleanly and document layouts for future modifications, especially in evolving automation projects where panel density increases. Application: control panels in manufacturing lines and process equipment that require a robust, gangable steel switch box. Feature → Business Impact → Application: Gangable design enables quick expansion by adjoining boxes, increasing total capacity without needing new housings, which accelerates project timelines and minimizes downtime. Application: modular panel builds in multi-sentence automation or retrofit projects where space is at a premium. Feature → Business Impact → Application: (2) end knockouts at 3/4 in and (1) bottom knockout at 1/2 in provide flexible routing for 1/2 in to 3/4 in conduits, reducing wiring complexity and installation errors. Application: field installs where wiring paths must be adjusted to fit existing conduit layouts. Feature → Business Impact → Application: Conduit (no clamps) simplifies mounting and reduces accessory costs, saving installation time and avoiding extra hardware. Application: new installations in space-constrained control panels. Feature → Business Impact → Application: Product dimensions (3 in depth, 3.5 in height, 2 in width) and weight (0.73 lb) deliver a compact, lightweight enclosure that minimizes panel footprint and handling effort during installation. Application: retrofits and space-limited electrical rooms. Feature → Business Impact → Application: NEC/CEC compliance and ordinary/non-hazardous location suitability provide regulatory alignment, protecting projects from rework and speeding procurement. Application: industrial facilities operating under standard location classifications.
