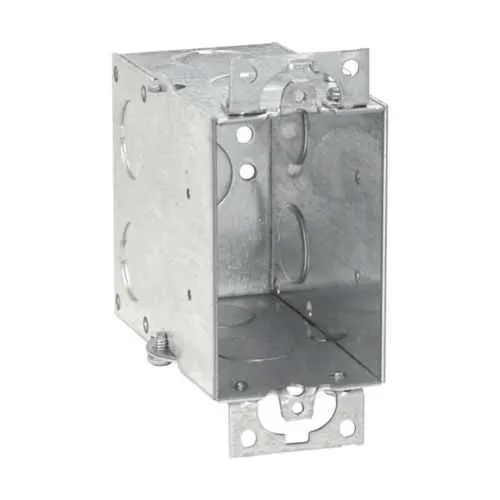

Eaton TP252 Switch Box - 18 cu in Steel, NEC/CEC
Part Number: TP252
Quick Summary
The Eaton Crouse-Hinds series TP252 switch box is a rugged steel enclosure for mounting switches and conduit in electrical control installations. Engineers often wrestle with enclosures that fail under harsh environments or limit future expansion. This TP252 model complies with NEC/CEC standards and is suitable for ordinary/non-hazardous locations, giving teams a dependable baseline for commercial or light industrial projects. Its 18 cubic inch capacity, 3-1/2 inch depth, and 2 x 1/2 inch knockouts support flexible wiring schemes while maintaining a compact footprint. The steel construction and gangable design reduce total enclosure count on complex panels and simplify future upgrades, lowering lifecycle costs. With standard conduit options and durable steel, it adapts to evolving electrical layouts without the need for special accessories.
Product Information
Extended Description
TP252 Eaton: Eaton Crouse-Hinds series Switch Box, (1) 1/2", Conduit (no clamps), 3-1/2", (2) 1/2", Steel, (2) 1/2", Ears, Gangable, 18.0 cubic inch capacity
Product Name
Eaton Crouse-Hinds series switch box
Catalog Number
TP252
UPC
786189102529
Product Length/Depth
2 in
Product Height
3 in
Product Width
3.5 in
Product Weight
0.76 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Depth
3-1/2"
Type
Gangable
Capacity
18 cubic in
Conduit/cable
Conduit (no clamps)
End Knockouts
(2) 1/2 in
Side knockouts
(2) 1/2 in
Bottom Knockouts
(1) 1/2 in
Material
Steel
Special features
Ears
Crouse-Hinds series Steel Switch Boxes catalog page
Steel Switch Boxes Canadian certification
Steel Switch Boxes Canadian certification
Steel Outlet Boxes for Electrical Systems
Steel Outlet Boxes for Electrical Systems
Feature: Rugged steel construction and gangable design. Benefit/Business Impact: Delivers durable protection in harsh environments and scales with panel complexity, reducing the number of enclosures required in multi-box installs. Application: Ideal for commercial and light industrial control panels that anticipate future expansion. Feature: 18 cubic inch capacity with defined dimensions. Benefit/Business Impact: Optimizes internal space for standard relays, terminals, and wiring, reducing packing density and potential heat buildup. Application: Small to mid-size control circuits and panel enclosures where space efficiency matters. Feature: Flexible conduit entries with end, side, and bottom knockouts (1/2 in) and conduit (no clamps). Benefit/Business Impact: Simplifies routing and minimizes ancillary hardware, cutting installation time and field adjustments. Application: Conduit-rich installations in panels and equipment enclosures. Feature: Mounting ears included. Benefit/Business Impact: Enables rapid, stable surface or backplane mounting, improving installation quality and reducing mounting errors. Application: Surface-mounted control boxes on walls or equipment frames. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous area classification. Benefit/Business Impact: Supports regulatory compliance and safe operation in general environments, lowering risk and rework. Application: General purpose electrical installations across commercial and light-industrial sites.
Get a Quick Quote for a Eaton TP252
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP252?
Enquire Now
FAQs
TP252 supports standard conduit entry with two end knockouts, two side knockouts, and one bottom knockout, all 1/2 in, and is designed for conduit without clamps. This arrangement gives flexible routing for power and control wiring. The unit is gangable and ships with mounting ears, enabling rapid surface or backplane installation in compact panels and multi-box configurations.
Not for hazardous locations. The TP252 is listed as Ordinary/Non-Hazardous Locations under NEC/CEC standards, which means it’s designed for general purpose environments without explosive atmospheres. If your application requires hazardous-area protection, choose enclosures with appropriate ratings (for example explosion-proof or dust-ignition-protected) and verify local codes before installation.
NEC/CEC standard compliance is specified for the TP252, ensuring electrical safety and installation compatibility within North American codes. Canadian certifications are also referenced in the product documents, and UL listings support cross-border use. Always confirm the latest listings and any site-specific requirements before field deployment.
Yes. The TP252 is explicitly designed to be gangable, reducing the number of enclosures required in panel assemblies. When used with ears and compatible hardware, multiple boxes can be mounted together to create a larger, shared enclosure. This simplifies wiring, shortens installation time, and lowers overall material costs on complex control panels.
Dimensions are listed as 3.5 in wide, 3 in high, and 2 in deep with a 3-1/2 in depth specification noted in the spec sheet; weight is 0.76 lb. The 18 cubic inch capacity accommodates typical starters, relays, and conduit fittings. Plan for surface or back-mount installation and ensure sufficient space for knockouts and mounting ears.
