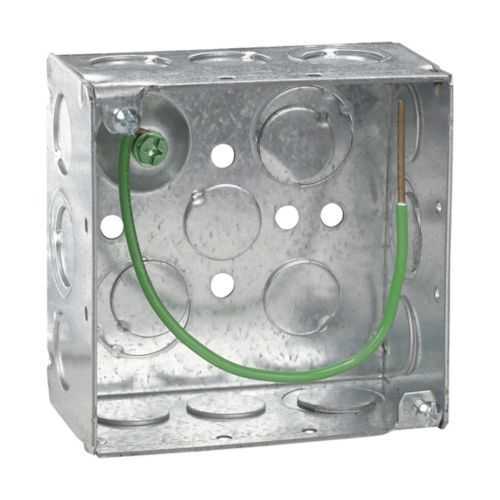

Eaton TP403PF Square Outlet Box - 30.3 inĀ³ Capacity
Part Number: TP403PF
Quick Summary
Eaton TP403PF square outlet box provides a durable steel enclosure for 4-inch conduit runs in industrial electrical installations. In the field, space constraints, grounding integration, and varied knockout patterns can slow panel builds, complicating routing and wiring. It meets NEC/CEC standards for ordinary locations, with Canadian certification documentation available. By combining rugged welded steel construction with a practical 4" box size and proven grounding features, this enclosure supports efficient, compliant installations in control panels and equipment rooms, while reducing rework and maintenance costs for steel square boxes and Crouse-Hinds series solutions.
Product Information
Extended Description
TP403PF Eaton: Eaton Crouse-Hinds series Square Outlet Box, (2) 1/2", (2) 1/2", (1) 3/4" E, 4", Conduit (no clamps), Welded, 2-1/8", Steel, (8) 1/2",(4) 1/2", (1) 3/4" E, Includes ground screw with pigtail lead, 30.3 cubic inch capacity
Product Name
Eaton Crouse-Hinds series square outlet box
Catalog Number
TP403PF
UPC
786189000283
Product Length/Depth
4 in
Product Height
2.13 in
Product Width
4 in
Product Weight
0.84 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Box size
4"
Capacity
30.3 cubic in
Depth
2-1/8"
Conduit/cable
Conduit (no clamps)
Construction
Welded
Side knockouts
(8) 1/2 in, (4) 1/2 in, (1) 3/4 in E
Bottom Knockouts
(2) 1/2 in, (2) 1/2 in, (1) 3/4 in E
Material
Steel
Special features
Includes ground screw with pigtail lead
Crouse-Hinds series 4-Inch Steel Square Boxes and Covers catalog page
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings Canadian certification
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings Canadian certification
Eaton Specification Sheet - TP403PF
Eaton Specification Sheet - TP403PF
Feature: Welded steel construction and 4" box size with 30.3 cubic inches capacity. Benefit: Delivers durability and ample internal space for wiring and devices, enabling reliable panel assemblies in harsh environments. Application: Control panels and machine enclosures where robust metal boxes are required. Feature: Side and bottom knockouts (eight 1/2", four 1/2", one 3/4" E; bottom has two 1/2", two 1/2", one 3/4" E). Benefit: Flexible conduit routing and simplified field connections, reducing install time. Application: Industrial wiring looms needing precise knockout options. Feature: Conduit (no clamps) and welded construction. Benefit: Streamlined installation with fewer parts and stronger enclosure integrity. Application: New builds and retrofit projects where speed and reliability matter. Feature: Ground screw with pigtail lead included. Benefit: Instant, compliant grounding without extra parts, decreasing installation steps. Application: All installations requiring quick, dependable earth grounding. Feature: Weight 0.84 lb and 4" square footprint. Benefit: Lighter, easier handling and mounting in compact spaces. Application: Space-constrained electrical rooms and enclosures. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Locations classification. Benefit: Clear regulatory alignment and safer operation in standard industrial environments. Application: Panels and junction boxes in non-hazardous settings. Feature: Compatibility with standard 4" steel square boxes and covers family. Benefit: Reduced sourcing risk and easier replacement or expansion. Application: Systems upgrading to consistent enclosure standards across facilities.
Get a Quick Quote for a Eaton TP403PF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP403PF?
Enquire Now
FAQs
Begin by selecting a mounting location that aligns with the 4" box footprint. Use the available knockouts to route conduit entries, then secure the box to the panel or backbox. Attach grounding with the included ground screw and pigtail, wire conductors per code, and close with a compatible cover. The welded steel construction supports durable field installations.
The TP403PF provides ample versatility: side knockouts include eight 1/2 inch, four 1/2 inch, and one 3/4 inch E; bottom knockouts include two 1/2 inch, two 1/2 inch, and one 3/4 inch E. This enables flexible conduit routing for typical 4-inch enclosure applications without additional accessories.
Yes. The enclosure is classified for Ordinary/Non-Hazardous Locations and supports NEC/CEC compliance for standard industrial environments. It also provides Canadian certification documentation, making it suitable for facilities with cross-border or multi-region requirements while maintaining safety and regulatory alignment.
The TP403PF is a 4-inch square box with a depth of 2-1/8 inches and a capacity of 30.3 cubic inches. It weighs approximately 0.84 pounds, making it manageable for installation in confined spaces while offering ample internal space for wiring, splices, and small devices.
Yes, it includes a ground screw with a pigtail lead, reducing the need for separate grounding accessories. This simplifies wiring, speeds up installation, and helps ensure compliant grounding in a single, ready-to-use enclosure, which can lower labor costs and minimize field errors.
