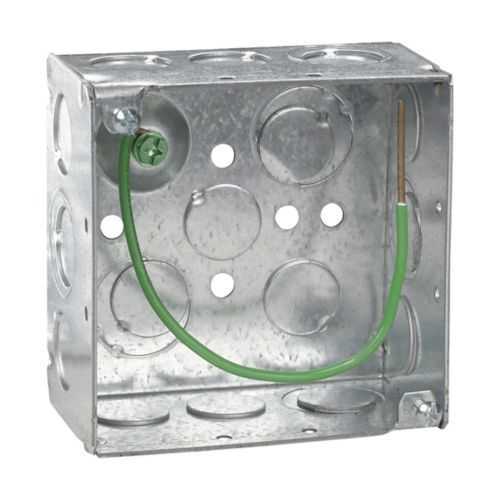

Eaton TP403PFRED Square Outlet Box - NEC/CEC Compliant
Part Number: TP403PFRED
Quick Summary
The Eaton TP403PFRED square outlet box is a rugged enclosure designed for reliable terminations in industrial control panels. It addresses common installation challenges such as limited space, multiple knockouts, and dependable grounding in tough environments. This model is NEC/CEC compliant and UL-listed for steel square boxes, ensuring code-ready performance across US and Canada. With a 4-inch square footprint and 30.3 cubic inches of capacity, it delivers durable termination access while enabling fast installation. For project teams, the TP403PFRED offers predictable fit within the Crouse-Hinds square-box family, reducing risk and maintenance while supporting efficient electrical infrastructure upgrades.
Product Information
Extended Description
TP403PFRED Eaton: Eaton Crouse-Hinds series square outlet box, (2) 1/2", (2) 3/4" bottom, Solid, 4" box, Red, Welded, 2-1/8" depth, (4) 1/2", (2) 1/2"+3/4" EKO end, Steel, (2) 1/2", (1) 1/2"+3/4" EKO side, Ground screw w/ pigtail lead, 30.3 cu in capacity
Product Name
Eaton Crouse-Hinds series square outlet box
Catalog Number
TP403PFRED
UPC
662279176222
Product Length/Depth
2.25 in
Product Height
4 in
Product Width
4 in
Product Weight
0.92 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Box size
4"
Capacity
30.3 cubic inch capacity
Depth
2-1/8"
Conduit/cable
Conduit (no clamps)
Construction
Welded
Box ground wire
Solid
Side knockouts
(2) 1/2", (1) 1/2" + 3/4" EKO
Bottom Knockouts
(2) 1/2", (2) 3/4"
End Knockouts
(4) 1/2", (2) 1/2" + 3/4" EKO
Color
Red
Material
Steel
Special features
Includes ground screw with pigtail lead
Crouse-Hinds series 4-Inch Steel Square Boxes and Covers catalog page
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings UL certification
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings UL certification
Steel Outlet Boxes for Electrical Systems
Feature: Welded steel construction with a solid ground wire and an included ground screw with pigtail lead. Business Impact: Delivers high durability, reliable grounding, and reduced rework in vibration-prone environments. Application: Suitable for control panels and junctions in ordinary locations where robust metal enclosures are required. Feature: 4" box size with a 2-1/8" depth and 30.3 cubic inches of capacity. Business Impact: Maximizes interior space for conductors, devices, and splices, improving wiring organization and ease of future modifications. Application: Ideal for medium-complexity panel terminations and compact enclosures in automation projects. Feature: Flexible knockouts configuration: side knockouts (two 1/2" and one 1/2"+3/4" EKO), bottom knockouts (two 1/2" and two 3/4"), end knockouts (four 1/2" plus two 1/2"+3/4" EKO). Business Impact: Enables diverse conduit routing and simplified field wiring without costly adapters. Application: Supports various installation layouts in sheet-metal enclosures and electrical infrastructure. Feature: Grounding enhancement through ground screw with pigtail and solid ground wire. Business Impact: Accelerates grounding procedures, reduces installation time, and improves safety margins. Application: Critical for reliable system grounding in electrical panels and junction assemblies. Feature: Material and finish—steel construction with red color coding. Business Impact: Provides rugged protection against impact and corrosion while offering visual identification in crowded equipment rooms. Application: Works well in industrial environments, including conveyor systems and machine enclosures. Feature: Compliance and certifications—NEC/CEC, Ordinary/Non-Hazardous Locations, UL listed. Business Impact: Ensures code compliance and simplifies audit trails, helping procurement reduce risk. Application: Essential for new builds and retrofits in regulated facilities and Canada/US installations.
