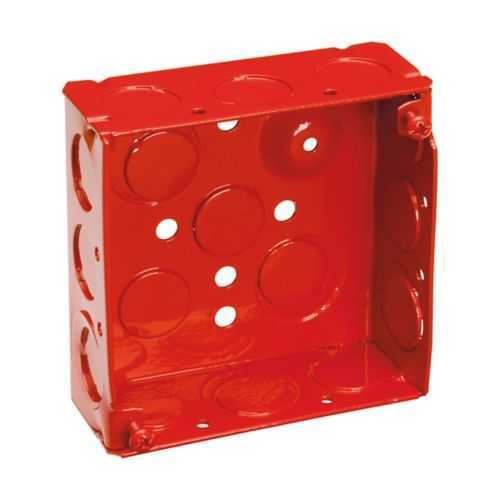

Eaton TP404RED Square Outlet Box - NEC/CEC Certified
Part Number: TP404RED
Quick Summary
The Eaton TP404RED Square Outlet Box is a 4-inch welded steel enclosure designed for reliable wiring in ordinary, non-hazardous locations. It helps electricians minimize field fabrication with convenient side and bottom knockouts and a 1-1/2-inch depth for compact installations. This product carries NEC/CEC standards and UL certification for electrical enclosures, plus an area classification of Ordinary/Non-Hazardous Locations, ensuring appropriate protection in general manufacturing floors. The bright red finish aids panel visibility and safety, while the 22 cubic inch capacity accommodates typical small-contactor or control wiring. For buyers, this translates to proven durability, easier installation, and predictable compliance across projects that demand robust, code-aligned hardware.
Product Information
Extended Description
TP404RED Eaton: Eaton Crouse-Hinds series Square Outlet Box, (2) 1/2", (2) 1/2", (1) 3/4" E, 4", Red, Conduit (no clamps), Welded, 1-1/2", Steel, (8) 1/2",(4) 1/2", (1) 3/4" E, 22.0 cubic inch capacity
Product Name
Eaton Crouse-Hinds series square outlet box
Catalog Number
TP404RED
UPC
662279000411
Product Length/Depth
4 in
Product Height
1.5 in
Product Width
4 in
Product Weight
0.73 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Box size
4"
Capacity
22 cubic in
Depth
1-1/2"
Conduit/cable
Conduit (no clamps)
Construction
Welded
Side knockouts
(8) 1/2 in, (4) 1/2 in, (1) 3/4 in E
Bottom Knockouts
(2) 1/2 in, (2) 1/2 in, (1) 3/4 in E
Color
Red
Material
Steel
Crouse-Hinds series 4-Inch Steel Square Boxes and Covers catalog page
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings UL certification
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings UL certification
Eaton Specification Sheet - TP404RED
Eaton Specification Sheet - TP404RED
Feature: 4-inch welded steel square box provides a rugged enclosure that resists impact and abuse in harsh industrial environments. Business Impact: Reduces field redesign and returns by delivering a ready-to-mount housing that stands up to daily panel service. Application: Ideal for control panels and machine enclosures in manufacturing lines where reliability matters. Feature: 22 cubic inch capacity supports more wiring and small devices without compromising enclosure integrity. Business Impact: Improves wiring density planning and minimizes splices, lowering installation time and future maintenance costs. Application: Suitable for wiring looms and compact motor starter circuits in both new builds and retrofits. Feature: Conduit (no clamps) with defined knockouts (side: 8× 1/2 in, 4× 1/2 in, 1× 3/4 in E; bottom: 2× 1/2 in, 2× 1/2 in, 1× 3/4 in E) enables flexible routing. Business Impact: Quick, code-compliant conduit routing reduces field labor and potential leakage paths. Application: Wiring setups in control cabinets where space is constrained. Feature: Red color finish enhances visibility and safety in cluttered panels and high-activity environments. Business Impact: Improves现场辨识和定位，降低误接和维护时间。 Application: Electrical distribution panels and process lines requiring rapid identification. Feature: NEC/CEC compliance with UL certification and Ordinary/Non-Hazardous Location classification. Business Impact: Guarantees regulatory alignment and reduces risk of non-compliant installations, aiding audits and inspections. Application: Industrial facilities and general manufacturing where standard enclosures are mandated.
Get a Quick Quote for a Eaton TP404RED
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP404RED?
Enquire Now
FAQs
The TP404RED is designed for ordinary/non-hazardous locations with NEC/CEC compliance, UL certification, and a welded steel construction. For installation, plan for the eight 1/2 in and four 1/2 in side knockouts plus bottom knockouts to route conductors, using conduit entries without clamps. Ensure the enclosure is mounted securely to minimize vibration and protect internal components from dust and moisture exposure typical in general manufacturing settings.
With 22 cubic inches of internal volume, the TP404RED accommodates a practical amount of wiring and small devices, reducing the need for splices and multiple smaller boxes. This streamlines assembly, lowers labor time, and improves airflow around components. In tight control panels, the space efficiency helps fit relays, terminations, and basic wiring harnesses without crowding.
Yes. The TP404RED carries NEC/CEC standards and UL certification, and it is classified for Ordinary/Non-Hazardous Locations. This makes it appropriate for typical factory floors, machine enclosures, and control panels where standard electrical safety code adherence is essential. For compliance, avoid location classifications beyond Ordinary/Non-Hazardous and verify panel ratings match your process requirements.
The box is engineered for conduit (no clamps) with a set of side and bottom knockouts (8× 1/2 in and 4× 1/2 in side knockouts, plus 1× 3/4 in E; bottom: 2× 1/2 in, 2× 1/2 in, 1× 3/4 in E). This provides flexible routing options and reduces field modification time. Use appropriate conduit fittings and ensure knockout openings align with your wiring plan for a sealed, code-compliant installation.
The welded steel construction and 22 cu in capacity contribute to a durable enclosure with low maintenance needs, reducing rework and replacement costs over time. Its standard 4-inch footprint and compatibility with common conduit practices simplify replacements or upgrades in aging systems. This translates to predictable maintenance budgeting and steadier project timelines.
