Eaton TP411 Square Outlet Box - 46 cu in NEC/CEC Certified
Part Number: TP411GRED
Quick Summary
The Eaton TP411 Square Outlet Box provides sturdy enclosure for surface conduit terminations in industrial electrical installations. When space is tight or mounting is complex, panel designers struggle to fit reliable protection and easy access. It carries NEC/CEC compliance and is suitable for Ordinary/Non-Hazardous Locations, with Canadian certification reflected in UL listings. Built for steel square boxes and conduit systems, it helps installers speed wiring, reduce field rework, and improve panel reliability. Our engineers value the 46 cubic inch capacity and the welded construction, which maintain enclosure integrity in demanding environments. The 4 in box size with flexible side and bottom knockouts supports rapid routing of cables and future upgrades.
Product Information
Extended Description

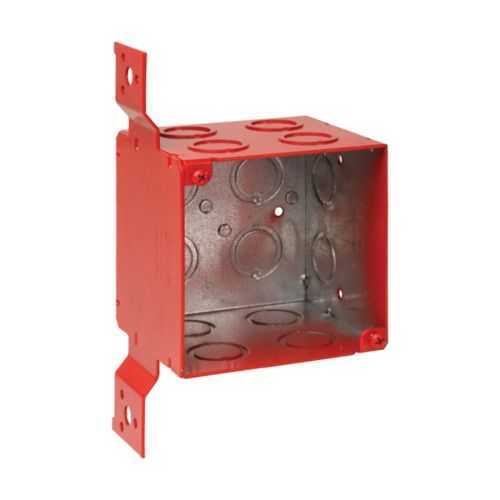

TP411GRED Eaton: Eaton Crouse-Hinds series square outlet box, (4) 1/2" + 3/4" CKO bottom KOs, Solid, 4" box, S bracket, Red, Welded, 3-1/2" depth, (8) 1/2" + 3/4" CKO end, Steel, (2) 1/2" + 3/4" CKO side, Ground screw installed, 50.0 cubic inch capacity
Product Name
Eaton Crouse-Hinds series square outlet box
Catalog Number
TP411GRED
UPC
662279176284
Product Length/Depth
4 in
Product Height
3.5 in
Product Width
4 in
Product Weight
1.38 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Box size
4"
Capacity
50.0 cubic inch capacity
Depth
3-1/2"
Conduit/cable
Conduit (no clamps)
Bracket style
S
Construction
Welded
Box ground wire
Solid
Side knockouts
(2) 1/2" + 3/4" CKO
Bottom Knockouts
(4) 1/2" + 3/4" CKO
End Knockouts
(8) 1/2" + 3/4" CKO
Color
Red
Material
Steel
Special features
Ground screw installed
Crouse-Hinds series 4-Inch Steel Square Boxes and Covers catalog page
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings UL certification
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings UL certification
Steel Outlet Boxes for Electrical Systems
Feature: 4 inch square steel welded enclosure with 46 cubic inch capacity; Business Impact: provides ample space for wiring while maintaining panel density, reducing the need for multiple boxes and rework; Application: control panels and machine housings in industrial facilities. Feature: Conduit (no clamps) and bracket style S; Business Impact: simplifies field installation and alignment, enabling faster panel assembly and fewer parts to manage; Application: electrical cabinets and equipment housings. Feature: Knockout configuration (side: 12 x 1/2 in, 1 x 3/4 in C; bottom: 4 x 1/2 in, 1 x 3/4 in C); Business Impact: flexible wiring options and easy conduit routing, cutting total install time; Application: custom wiring runs in harsh shop environments. Feature: Material and construction (steel, welded); Business Impact: rugged durability and long service life in demanding environments, reducing maintenance cycles; Application: heavy industry and distribution facilities. Feature: Certifications and compliance (NEC/CEC, Ordinary/Non-Hazardous Locations, Canadian certification); Business Impact: mitigates regulatory risk and simplifies cross-border procurement; Application: multi-site projects and compliance-driven deployments. Feature: Weight and form factor (4" box, 3-1/2" depth, 1.37 lb); Business Impact: lighter, easier handling and installation in constrained spaces; Application: retrofit and new builds where handling is a factor. Feature: Compatibility and brand ecosystem (Eaton Crouse-Hinds square boxes); Business Impact: streamlined procurement with matching covers, knockouts, and accessories; Application: system-wide installations and scalable enclosures.
Get a Quick Quote for a Eaton TP411GRED
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP411GRED?
Enquire Now
FAQs
TP411 is designed for conduit without integrated clamps; clamps are not included and must be added per the conduit type used. The enclosure provides standard knockouts that accommodate common conduit fittings, enabling straightforward installation with existing hardware. This approach reduces part variety, speeds up field assembly, and keeps wiring paths clean while maintaining compliance with NEC/CEC requirements.
TP411 includes side knockouts totaling twelve 1/2 inch openings plus one 3/4 inch C, and bottom knockouts with four 1/2 inch openings plus one 3/4 inch C. This mix supports versatile cable routing for typical 4-inch square boxes, allowing engineers to tailor wiring routes to equipment layouts without extra adapters or fittings.
No. The TP411 is specified for Ordinary/Non-Hazardous Locations and is designed for general industrial environments. For hazardous or potentially explosive atmospheres, a different enclosure with appropriate certification and enclosure rating would be required, such as explosion-proof or intrinsically safe variants that are specifically rated for those conditions.
TP411 carries NEC/CEC compliance and UL Canadian certification, aligning with North American electrical codes and cross-border requirements. These certifications help ensure electrical safety, simplify regulatory approvals, and reduce project risk when sourcing enclosures for multi-site deployments, especially in facilities spanning the US and Canada.
The TP411 delivers tangible value through durable welded steel construction, 46 cubic inches of capacity, and a 4" box footprint that fits compact installations. The complete knockouts offer flexible wiring options, reducing the need for adapters and rework, while NEC/CEC compliance lowers compliance risk. Overall, it speeds installation, improves reliability, and lowers lifecycle costs in control panels and electrical housings.
