Eaton TP413GRED Square Box - NEC/CEC Certified
Part Number: TP413GRED
Quick Summary
TP413GRED square box provides rugged steel enclosure for 50 cu in capacity in control panels. Many installations struggle with space constraints, grounding reliability, and coordinating knockouts for diverse conduit configurations. This unit is NEC/CEC compliant, UL-certified for steel square boxes, and rated for Ordinary/Non-Hazardous Locations, giving installers confidence and inspectors clear documentation. Designed for fast, compliant installs, it pairs with standard 4-inch boxes and minimizes wiring density while maximizing durability. From panel builders to OEMs, this enclosure reduces rework and procurement risk by delivering a consistent specification. Its welded steel construction and ground screw installed deliver a reliable ground path across demanding environments.
Product Information
Extended Description

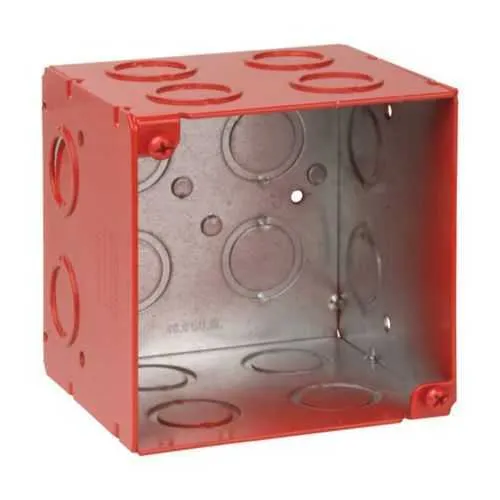

TP413GRED Eaton: Eaton Crouse-Hinds series square outlet box, (4) 1/2" + 3/4" CKO bottom, Solid, 4" box, Red, Welded, 3-1/2" depth, (8) 1/2" + 3/4" CKO end, Steel, (2) 1/2" + 3/4" CKO bottom, Ground screw, 50.0 cubic inch capacity
Product Name
Eaton Crouse-Hinds series square outlet box
Catalog Number
TP413GRED
UPC
662279176307
Product Length/Depth
4 in
Product Height
3.5 in
Product Width
4 in
Product Weight
1.13 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Box size
4"
Capacity
50.0 cubic inch capacity
Depth
3-1/2"
Conduit/cable
Conduit (no clamps)
Construction
Welded
Box ground wire
Solid
Side knockouts
(2) 1/2" + 3/4" CKO
Bottom Knockouts
(4) 1/2" + 3/4" CKO
End Knockouts
(8) 1/2" + 3/4" CKO
Color
Red
Material
Steel
Special features
Ground screw installed
Crouse-Hinds series 4-Inch Steel Square Boxes and Covers catalog page
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings UL certification
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings UL certification
Steel Outlet Boxes for Electrical Systems
Feature is 50.0 cubic inch capacity with a 4 inch box size and 3-1/2 inch depth. Business impact: enables neat, compliant splices and room for devices while reducing the need for rework due to overfilled boxes. Application: control panels and equipment enclosures in tight industrial spaces. Feature is welded steel construction with a solid ground wire and a ground screw installed. Business impact: increased enclosure integrity and faster grounding, lowering installation time and potential fault paths. Application: harsh environments where vibration and moisture are concerns. Feature is a wide knockout set: side knockouts (two 1/2" + 3/4" CKO), bottom knockouts (four), and end knockouts (eight). Business impact: exceptional conduit routing flexibility and future-proofing for upgrades. Application: field wiring in evolving plant layouts. Feature is conduit compatibility described as Conduit (no clamps). Business impact: simplifies mounting and reduces parts count, improving on-site efficiency and reducing total cost of ownership. Application: installer-friendly for quick retrofits. Feature is compliance and location rating: Ordinary/Non-Hazardous Locations with NEC/CEC standards. Business impact: ensures regulatory alignment and avoids compliance bottlenecks during audits. Application: facility-wide electrical installations. Feature is color and material: red steel with a ground wire specification and solid grounding features. Business impact: easy identification, improved corrosion resistance, and reliable grounding; Application: steel enclosures in production floors and switchgear cabinets.
Get a Quick Quote for a Eaton TP413GRED
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP413GRED?
Enquire Now
FAQs
TP413GRED is a 4-inch steel square outlet box with a 50 cu in capacity, ideal for control panels and equipment enclosures in manufacturing floors. Its side, bottom, and end knockouts provide flexible conduit routing, while the welded steel construction supports long-term reliability under vibration and dust exposure.
Yes. The TP413GRED aligns with NEC/CEC standards and is listed for ordinary/non-hazardous locations. It is part of Eaton’s Crouse-Hinds steel square box lineup, with UL certification pages available for confirmation, ensuring regulatory compliance across North American facilities.
The box includes (2) side knockouts, (4) bottom knockouts, and (8) end knockouts, all designed to accommodate a wide range of conduit setups. This enables efficient routing and future upgrades without swapping enclosures, reducing installation time and part counts.
TP413GRED is rated for Ordinary/Non-Hazardous Locations, suitable for general industrial environments such as control panels and machinery housings. For hazardous locations, a different enclosure with appropriate ratings would be required, but for standard plant applications it provides robust protection and ease of maintenance.
The ground screw is pre-installed, simplifying grounding during assembly. The welded construction and 50 cu in capacity reduce rework and density challenges, while the 3-1/2 inch depth and 4-inch footprint fit into tight spaces. Overall, these features translate to faster installs, reliable grounding, and lower lifecycle costs.
